6

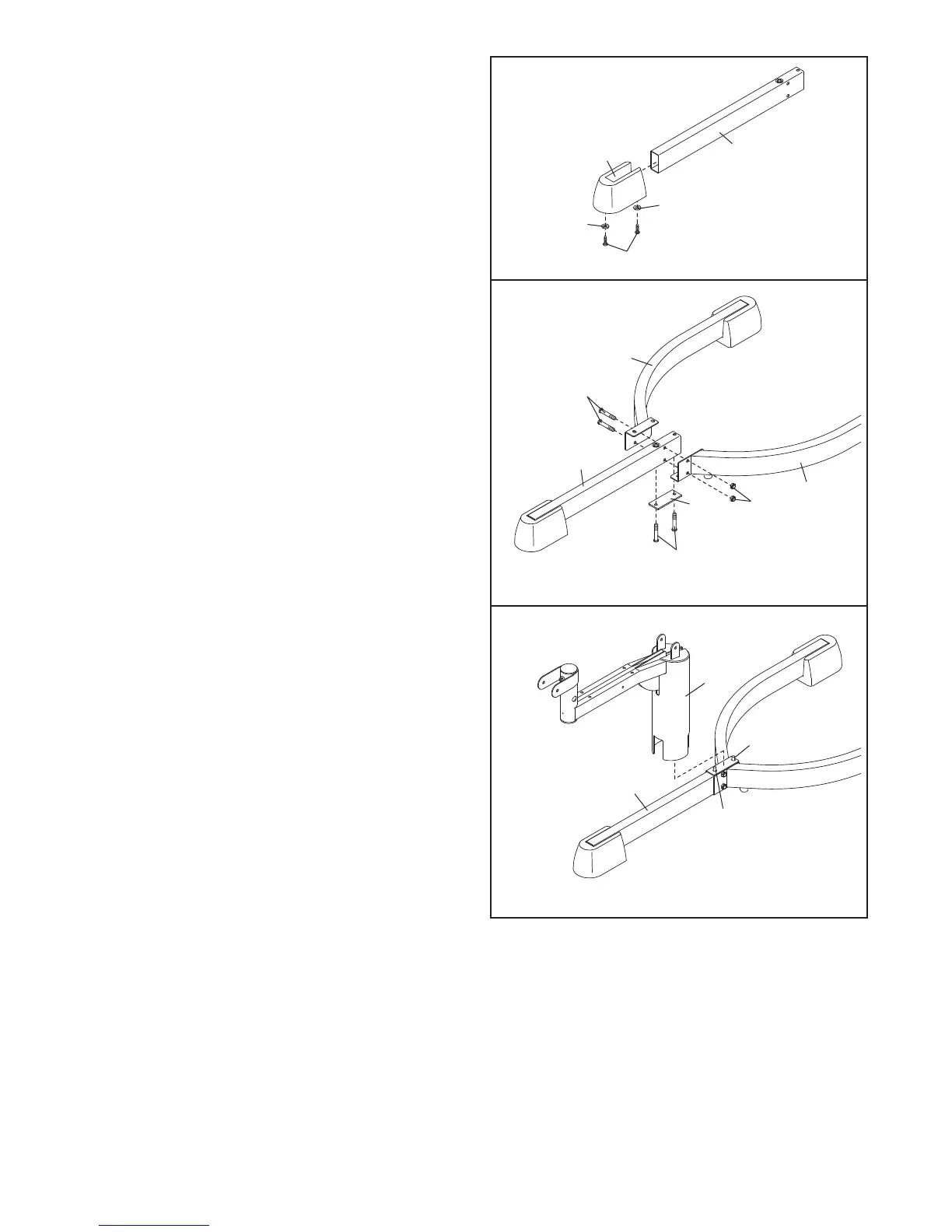

2. Attach the remaining Bench Foot (15) to the
Center Seat Base (1) with two M4 x 16mm Self-
t
apping Screws (91) and two M4 Washers (84).
4. Attach the Seat Frame (5) to the Center Seat
Base (1) with the indicated two M10 x 100mm
Screws (26).
3. Insert two M10 x 100mm Screws (26) up through
the Base Plate (34), the Center Seat Base (1),
and the Right and Left Seat Bases (2, 3).
Attach the Right and Left Seat Bases (2, 3) to the
Center Seat Base (1) with two M10 x 58mm
Button Bolts (95) and two M10 Nylon Locknuts
(77).
1
1
5
8
4
84
91
2
3
95
2
3
1
77
34
26
4
5
1
26
26
