Grease
7

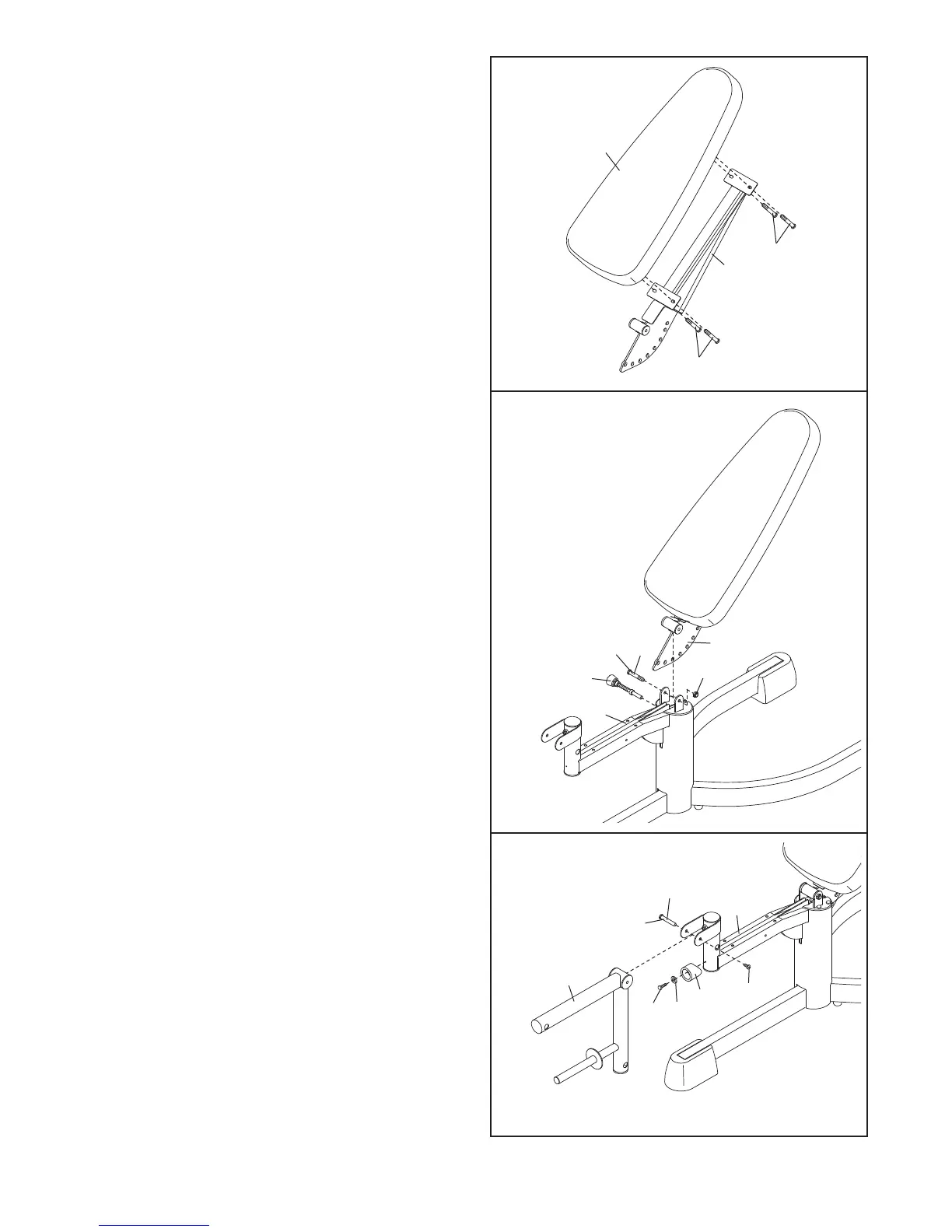

5. Attach the Backrest (11) to the Backrest Frame
(8) with four M6 x 25mm Button Screws (17).
7.
Attach the Seat Bumper (27) to the Seat Frame
(5) with an M4 x 16mm Self-tapping Screw (91)
and an M4 Washer (84).
Apply grease to the barrel of an M10 x 70mm Bolt
Set (93). Attach the Leg Lever (6) to the Seat
Frame (5) with the Bolt Set. Make sure that the
barrel of the Bolt Set is inserted through both
sides of the bracket on the Seat Frame. Do
not overtighten the Bolt Set; the Leg Lever
must pivot easily.
6. Apply a small amount of the included grease to
an M10 x 87mm Button Bolt (94). Attach the
Backrest Frame (8) to the Seat Frame (5) with
the Button Bolt and an M10 Nylon Locknut (77).
Do not overtighten the Nylon Locknut; the
Backrest Frame should pivot easily.
Engage the Backrest Knob (22) into one of the
holes in the Backrest Frame (8), and fully tighten
the Backrest Knob into the Seat Frame (5).
8
1
1
17
5
6
17
5
8
94
77
22
5
7
93
93
27
84
91
6
Grease
To Next Page
