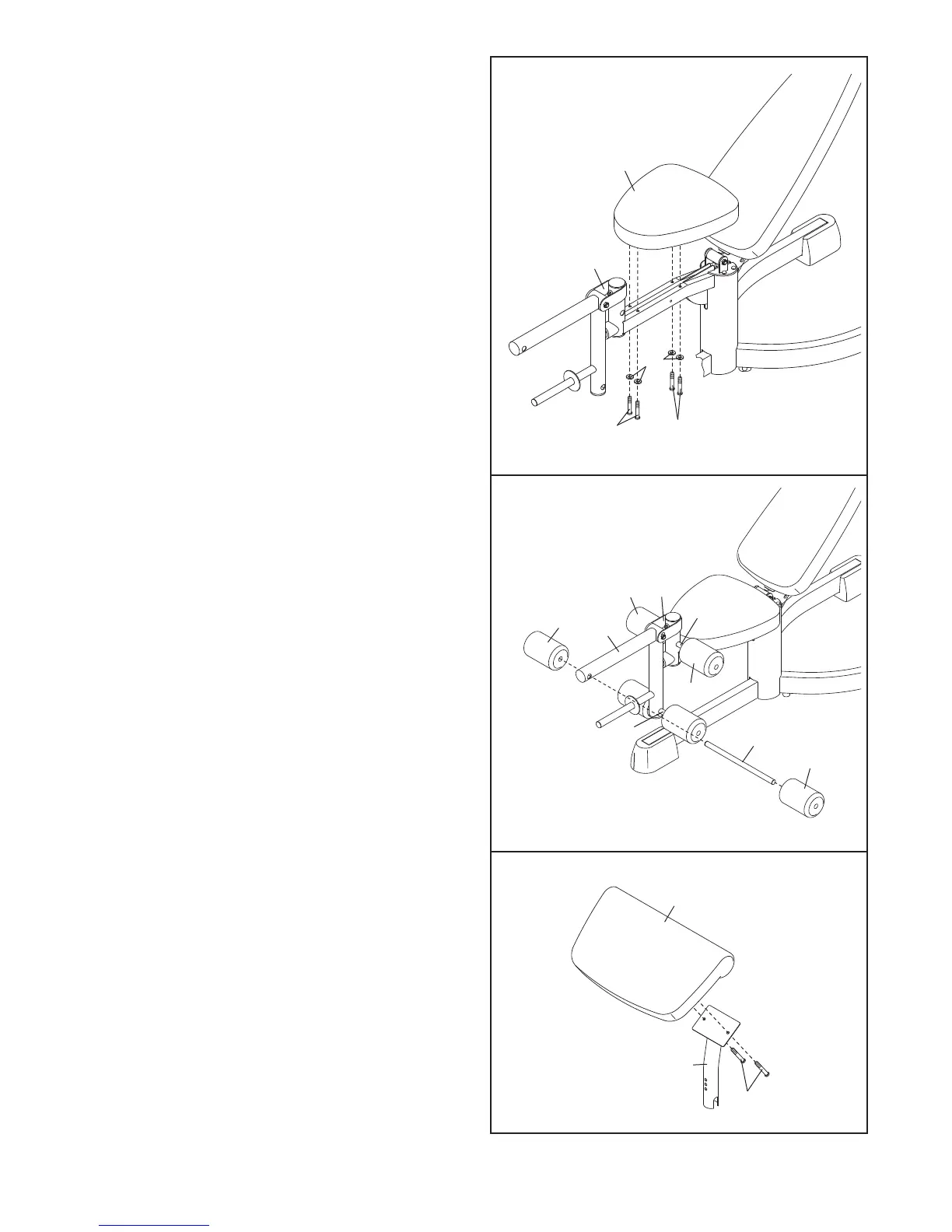

8. Attach the Seat (12) to the Seat Frame (5) with
four M6 x 72mm Button Screws (92) and four M6
W
ashers (81).
10. Attach the Curl Pad (13) to the Curl Post (7) with
two M6 x 25mm Button Screws (17).
9. Insert a Pad Tube (10) into the Leg Lever (6).
Slide two Foam Pads (14) onto the Pad Tube.
Assemble the other two Pad Tubes (10) to the
Leg Lever (6) and the Seat Frame (5) in the
same manner.
1
2
8
9
5
81
92
92
10
10
14
10
14
6
14
14
5
10
13
7
17
