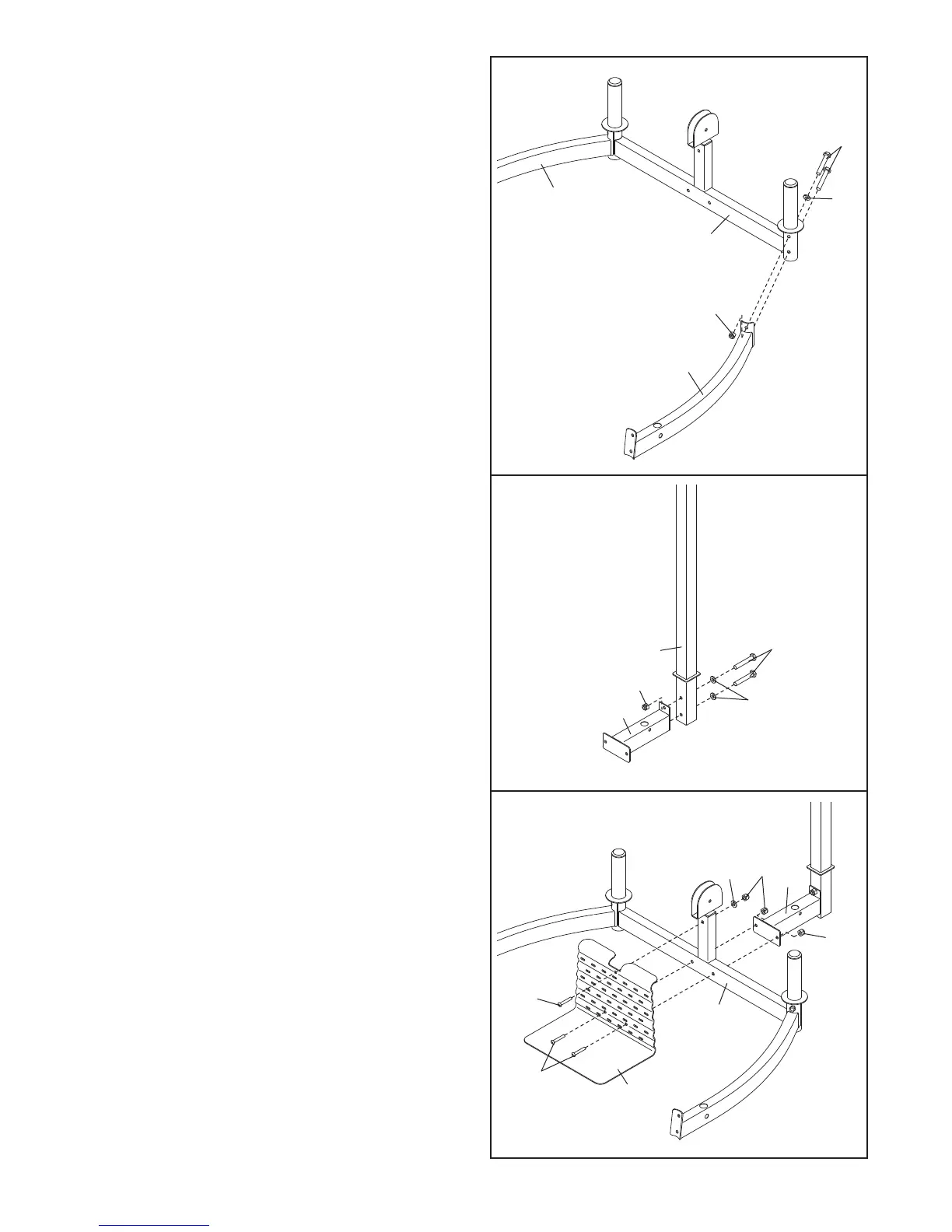

11. Attach the Left Rack Base (37) to the Center
Rack Base (39) with two M10 x 67mm Bolts (86),
a
n M10 Washer (80), and an M10 Nylon Locknut
(77).
Do not tighten the Bolts yet.
Repeat this step with the Right Rack Base (38).
13. Attach the Foot Plate (49) and the Rear Rack
Base (40) to the Center Rack Base (39) with two
M10 x 63mm Button Bolts (90) and two M10
Nylon Locknuts (77).
Do not tighten the Nylon
Locknuts yet.
Attach the Foot Plate (49) to the Center Rack
Base (39) with an M10 x 63mm Button Bolt (90),
an M10 W
asher (80), and an M10 Nylon Locknut
(77).
Do not tighten the Nylon Locknut yet.
12. Attach the Rear Rack Base (40) to the Rear
Upright (41) with two M10 x 67mm Bolts (86), two
M10 Washers (80), and an M10 Nylon Locknut
(77). Do not tighten the Bolts yet.
39
86
80
11
12
37
3
8
77
80
77
86
41
40
13
90
90
49
39
80
77
77
40
