16
41
25
72
48
59
63

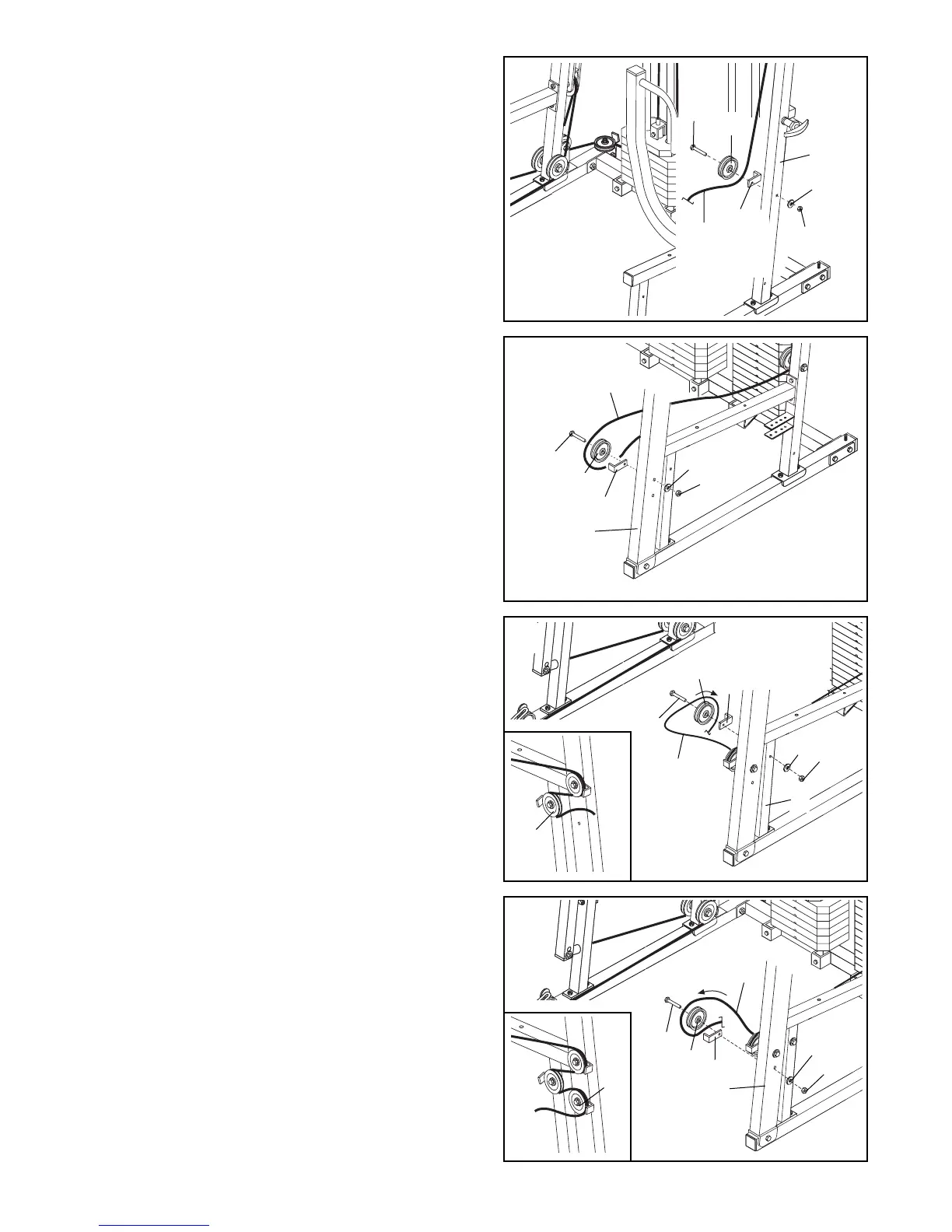

41. Wrap the High Cable (72) around a 3 1/2” Pulley (24).
Attach the Pulley and a Cable Trap (25) to the indicat-
ed hole in the Press Upright (2) with a 3/8” x 3 3/4”
Bolt (59), a 3/8” Flat Washer (48), and a 3/8” Nylon
Jam Nut (63). Make sure the Cable Trap is oriented
as shown.
2
42. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the indicated hole in the Press Front Leg
(20) with a 3/8” x 3 3/4” Bolt (59), a 3/8” Flat Washer
(48), and a 3/8” Nylon Jam Nut (63).
42
25
63
48
24
72
59
20
43
48
25
7
24
59
72
63
43. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the indicated hole on the Press Seat
Frame (7) with a 3/8” x 3 3/4” Bolt (59), a 3/8” Flat
Washer (48) and a 3/8” Nylon Jam Nut (63). See the
inset drawing. Make sure the Cable is routed
exactly as shown.
44. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the Press Front Leg (20) with a 3/8” x 3
3/4” Bolt (59), a 3/8” Flat Washer (48) and a 3/8”
Nylon Jam Nut (63). See the inset drawing. Make
sure the Cable is routed exactly as shown.
44
20
59
72
63
24
25
48
24
24
24
To Next Page
