17

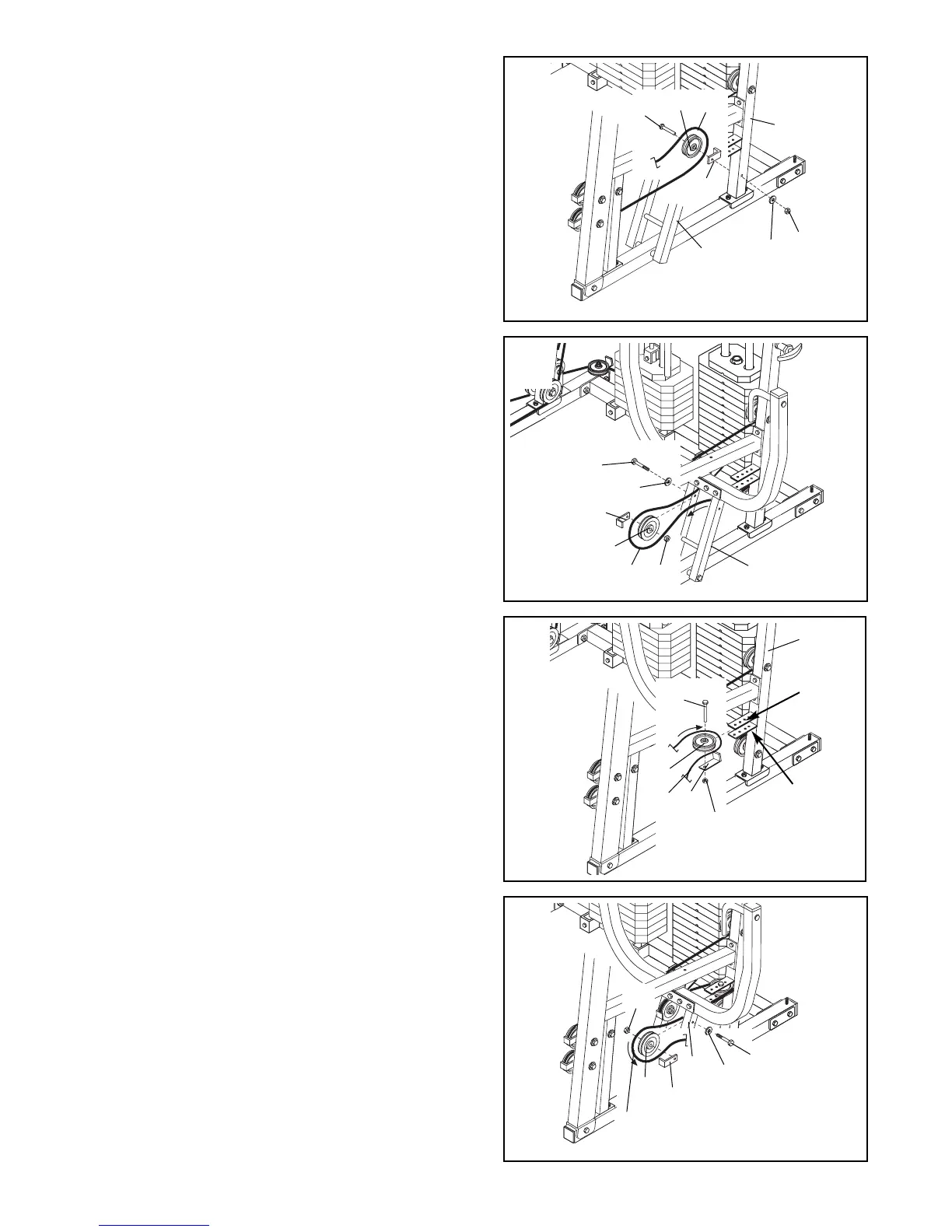

45. Route the High Cable (72) through the opening in the
Press Frame (8). Wrap the High Cable around a 3
1/2” Pulley (24). Attach the Pulley and a Cable Trap
(25) to the lower hole in the Press Upright (2) with a
3/8” x 3 3/4” Bolt (59), a 3/8” Flat Washer (48), and a
3/8” Nylon Jam Nut (63). Make sure that the Cable
Trap is oriented as shown.
25
72
2
59
24
63
48
8
46. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
as shown. Attach the Pulley and a Cable Trap (25) to
the indicated hole in the Press Frame (8) with a 3/8” x
3 1/2” Bolt (56), a 3/8” Flat Washer (48), and a 3/8”
Nylon Locknut (50). Make sure the Pulley is mount-
ed on the inside of the Press Frame and that the
Cable Trap is oriented as shown.
24
56
72
48
50
8
25
46
47. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the second hole in the bracket on the
Press Upright (2) with a 3/8” x 2” Bolt (54) and a 3/8”
Nylon Locknut (50). Make sure that the Cable Trap
is oriented as shown.
50
2
25
72
24
Bracket
Second
Hole
54
48. Wrap the High Cable (72) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the indicated hole in the Press Frame (8)
with a 3/8” x 3 1/2” Bolt (56), a 3/8” Flat Washer (48),
and a 3/8” Nylon Locknut (50). Make sure that the
Cable Trap is oriented as shown.
24
72
25
48
56
8
48
45
47
50
To Next Page
