ProForm PFTL49820 - Part Identification Chart

3/4” Screw (2)–6
1/2” Silver
Screw (49)–1
Flat Washer (76)–2
Silver Ground
Screw (113)–1
Nut (13)–2
1” Tek Screw (58)–4
3/8” Star Washer (38)–4
Crossbar Screw
(39)–2
1” Bolt (63)–2
Upright Nut (109)–4
3 1/2” Bolt (61)–2
Wheel Bolt (64)–2
2 1/2” Bolt (37)–4
1” Latch Screw (112)–2
5/16” Washer (48)–2

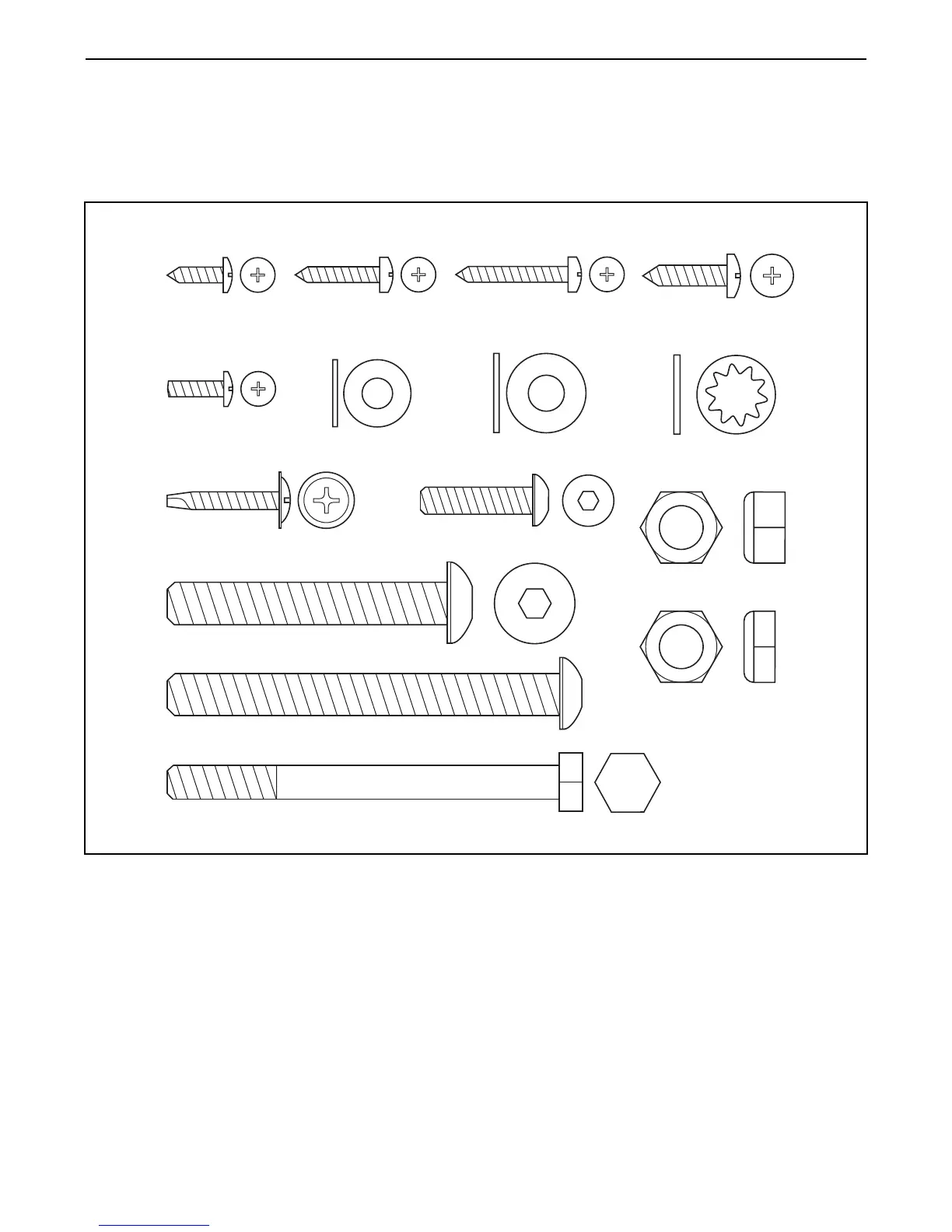

Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
PART IDENTIFICATION CHART
