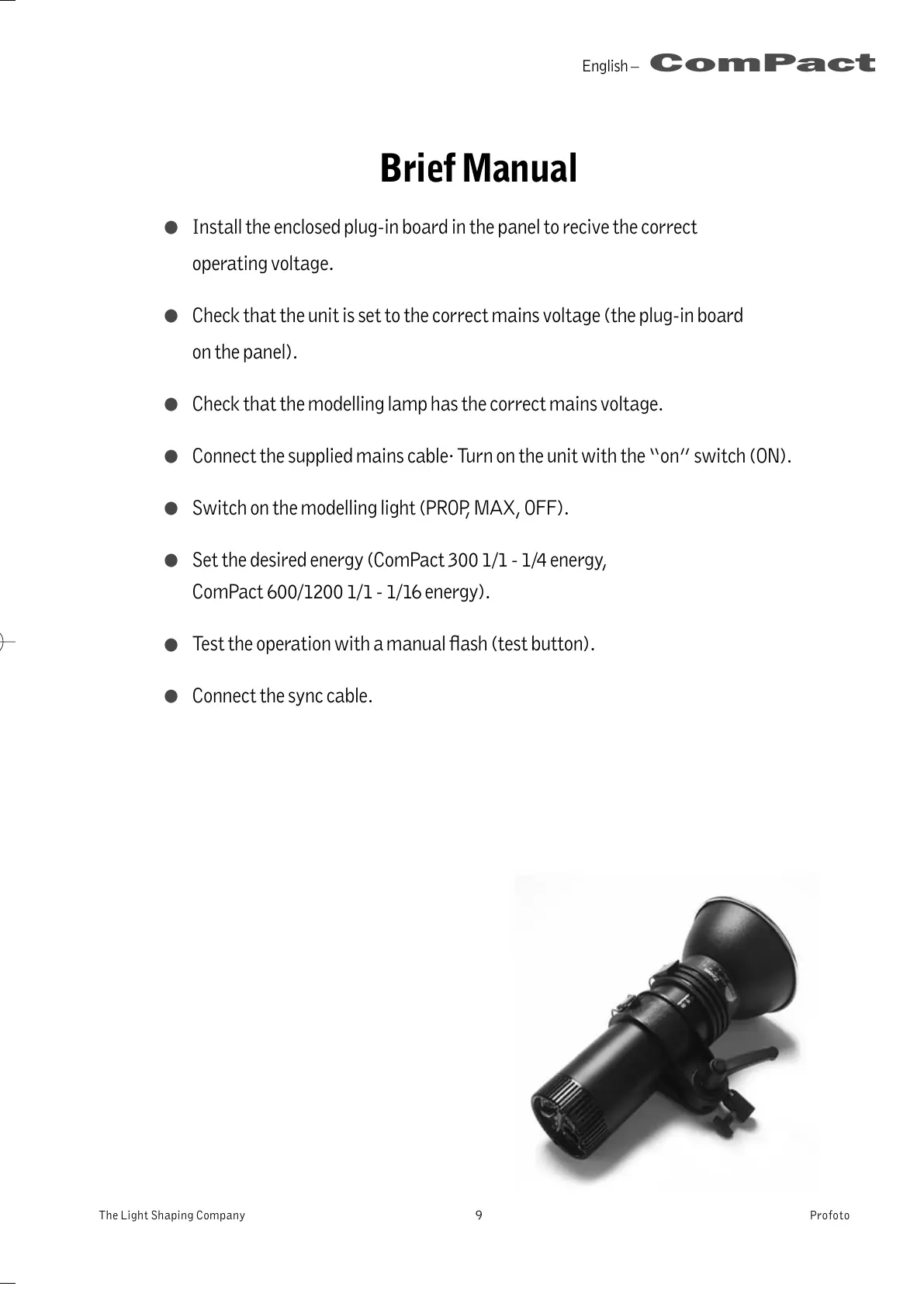

Brief Manual
.Install the enclosed plug-in board in the panel to recive the correct
operating voltage.
.Check that the unit is set to the correct mains voltage (the plug-in board
on the panel).
.Check that the modelling lamp has the correct mains voltage.
.Connect the supplied mains cable·Turn on the unit with the “on” switch (ON).
.Switch on the modelling light (PROP, MAX, OFF).
.Set the desired energy (ComPact 3001/1 - 1/4 energy,
ComPact 600/12001/1 - 1/16 energy).
.
Testthe operation with a manual flash (test button).
.
Connect the sync cable.
English –
ComPact
The Light Shaping Company 9 Profoto
