Figure 5
CONNECTING THE POWER
Warning: This appliance must be grounded!
Warning: The appliance must connect to a current protection circuit or
device at 50Amp or less before being connected to power supply!
1. Remove the screw from the front of the unit to connect the power to the
heater.

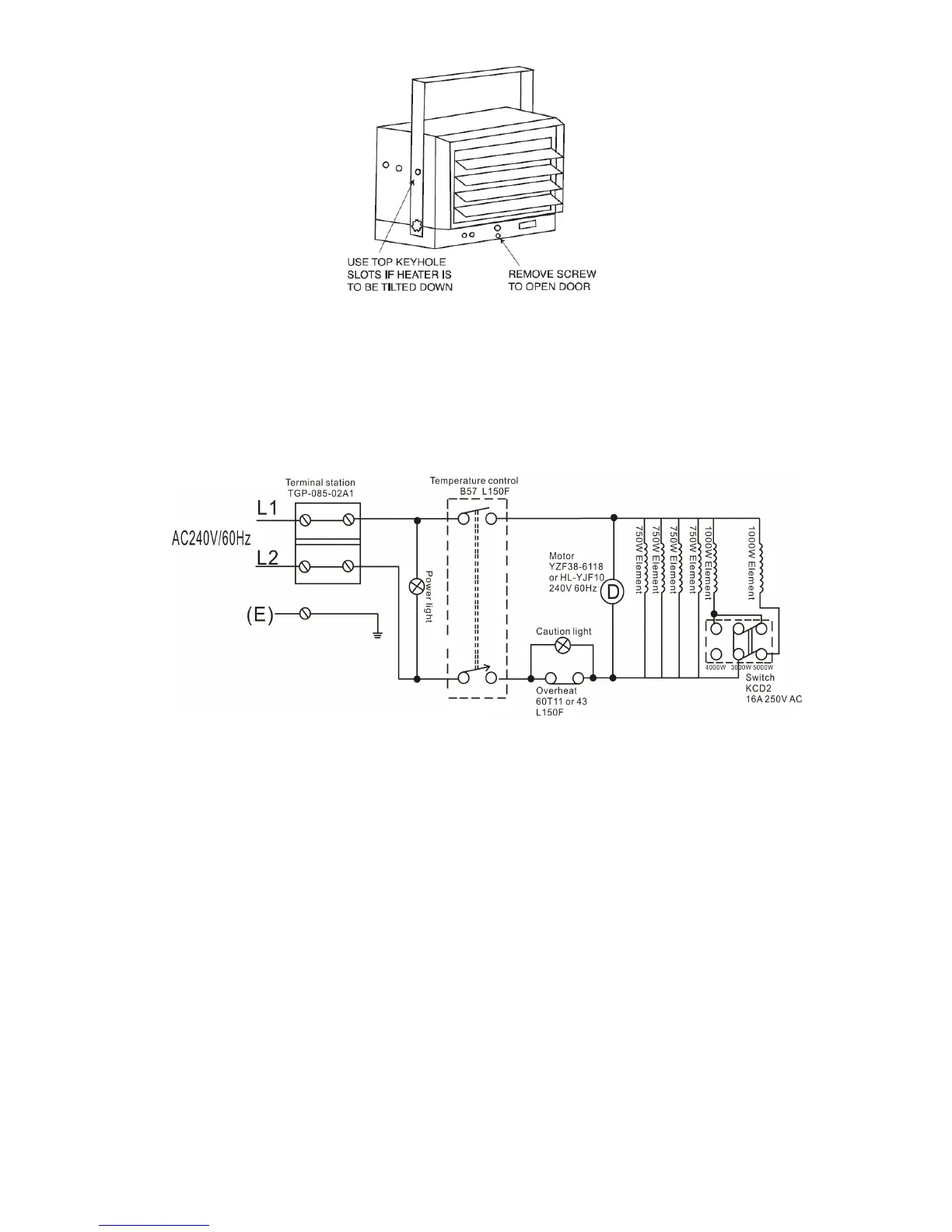

2. Attach the cable connectors to the unit (See Figure 6) and slide the
10-gauge wire through the cable connector.
NOTE: All wiring must be accordance to national and local electrical codes in
the United States. For certain applications conduit may be required See Figure
6. Check local electrical codes. If you run the wiring in conduit and wish to be
able to turn the heater be sure to purchase enough flexible conduit to allow the
heater to be turned.
3. Connect the wire to the power block located in the base of the heater - See
Figure 7.
4. Turn on the power at the main service.
To Next Page
