Figure 3
INSTALLATION
MOUNTING THE BRACKET

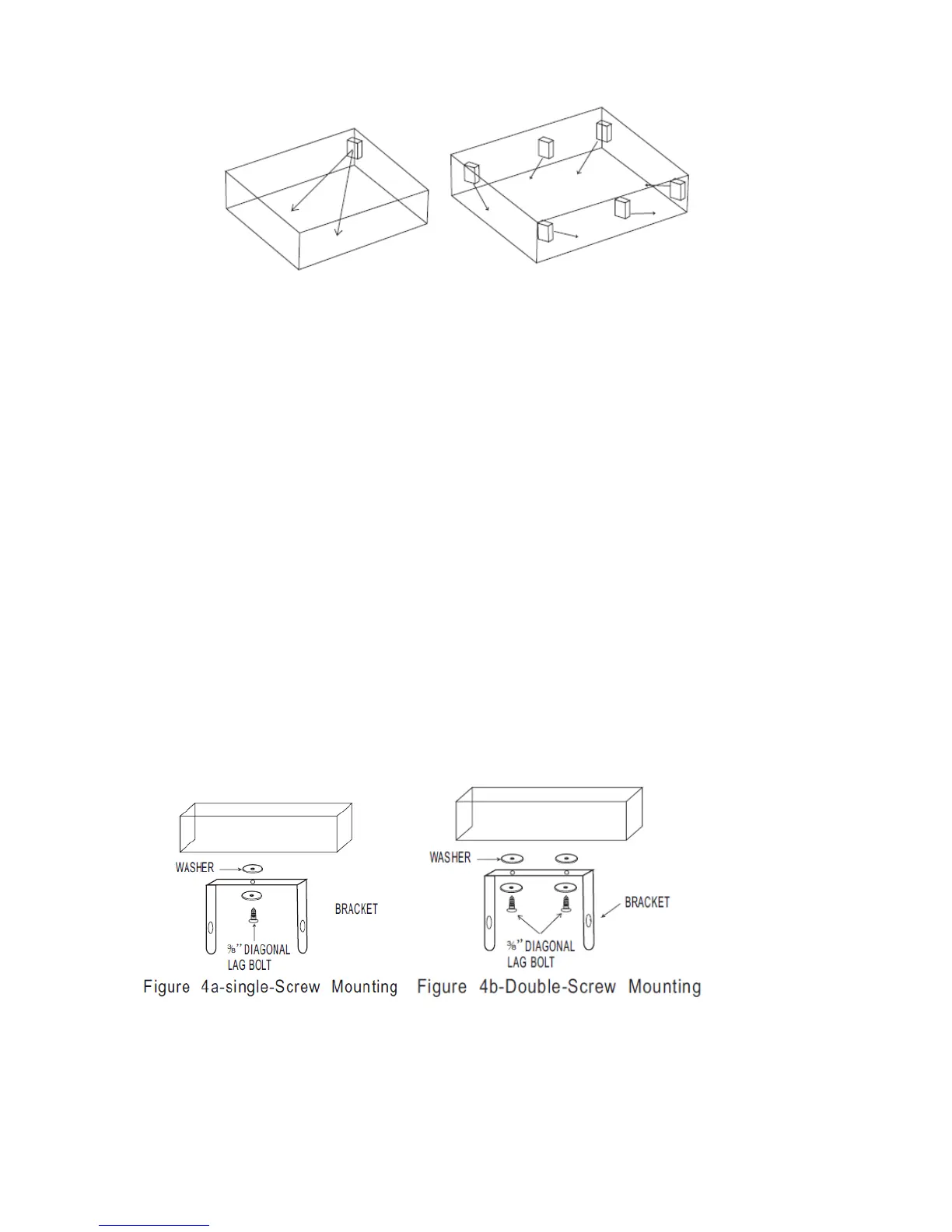

Refer to Figures 4a and 4b.
1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have to install a
wood piece on the ceiling as this heater must be securely fastened.
2. Remove the mounting bracket from the heating unit by loosening bracket screws with a wrench and
slipping the handle off over the screw heads.
3. Place a washer on screws before inserting through the holes in the mounting bracket and screw them
securely into a ceiling joist.
NOTE: If you want to swivel the heater either to the right or left adding a washer to both sides of the
bracket is recommended. A longer lag bolt may be required to properly secure the unit. See Figure 4a.
