6
Assembly and connection manual | Agrónic 4500
3 SITUATION OF THE CONNECTIONS
3.1. BOX FORMAT
To make the connection in the controller with box
format, remove the bottom cover to access the connec-
tors.
For the cable entry, the necessary knockouts must
be removed (do it with connection cover in place and
screwed, to avoid possible breakage).
The connectors and antennas for the rest of the options
are located on the right side.
It is advisable to connect the cables to the terminals
with connection terminals, which are included with the
controller. (The terminals accept cables up to 2.5 mm2
in section).

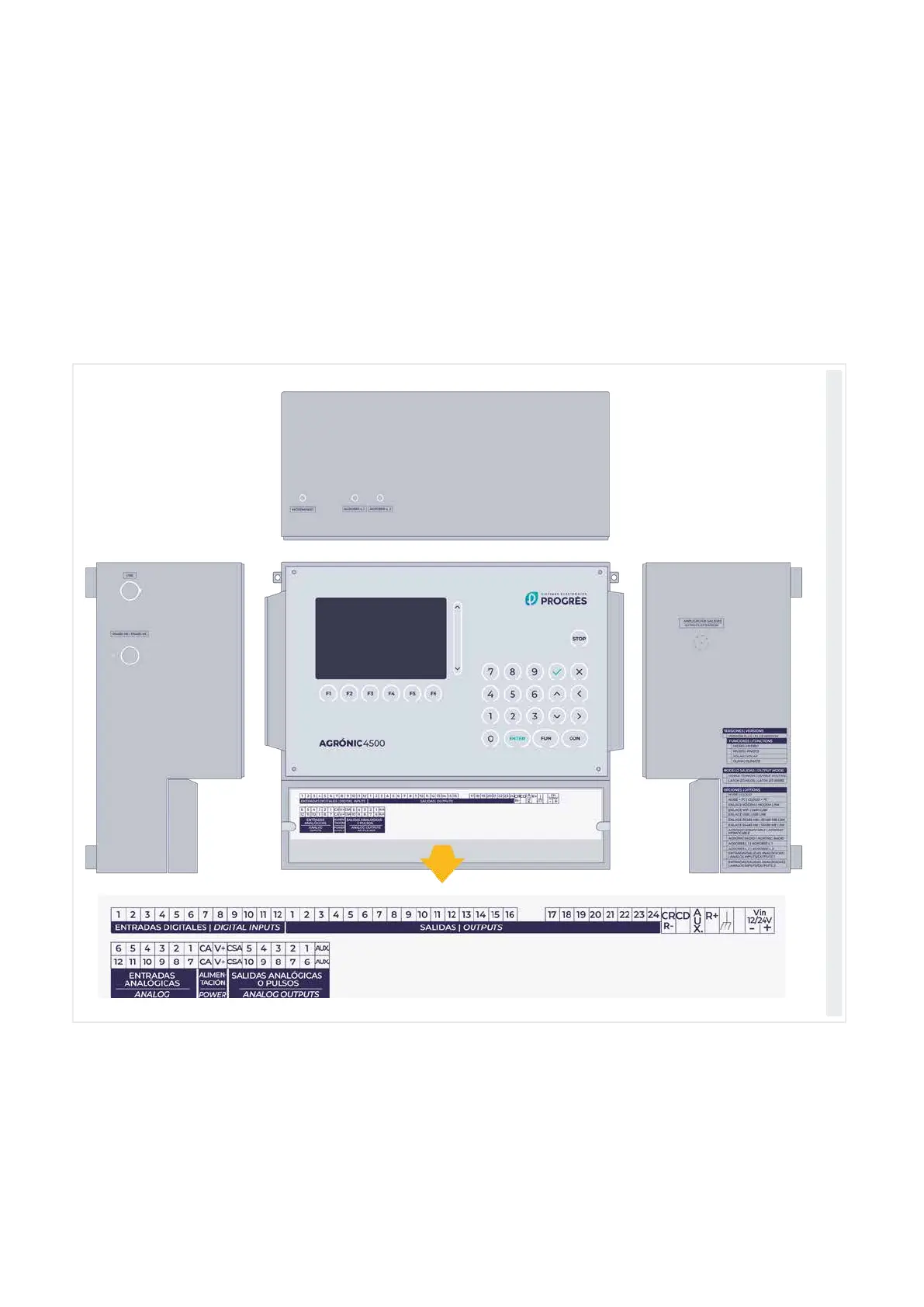

Box format for models with 24 + 16 outputs
