7
Situation of the connections | Built-in format
Assembly and connection manual | Agrónic 4500

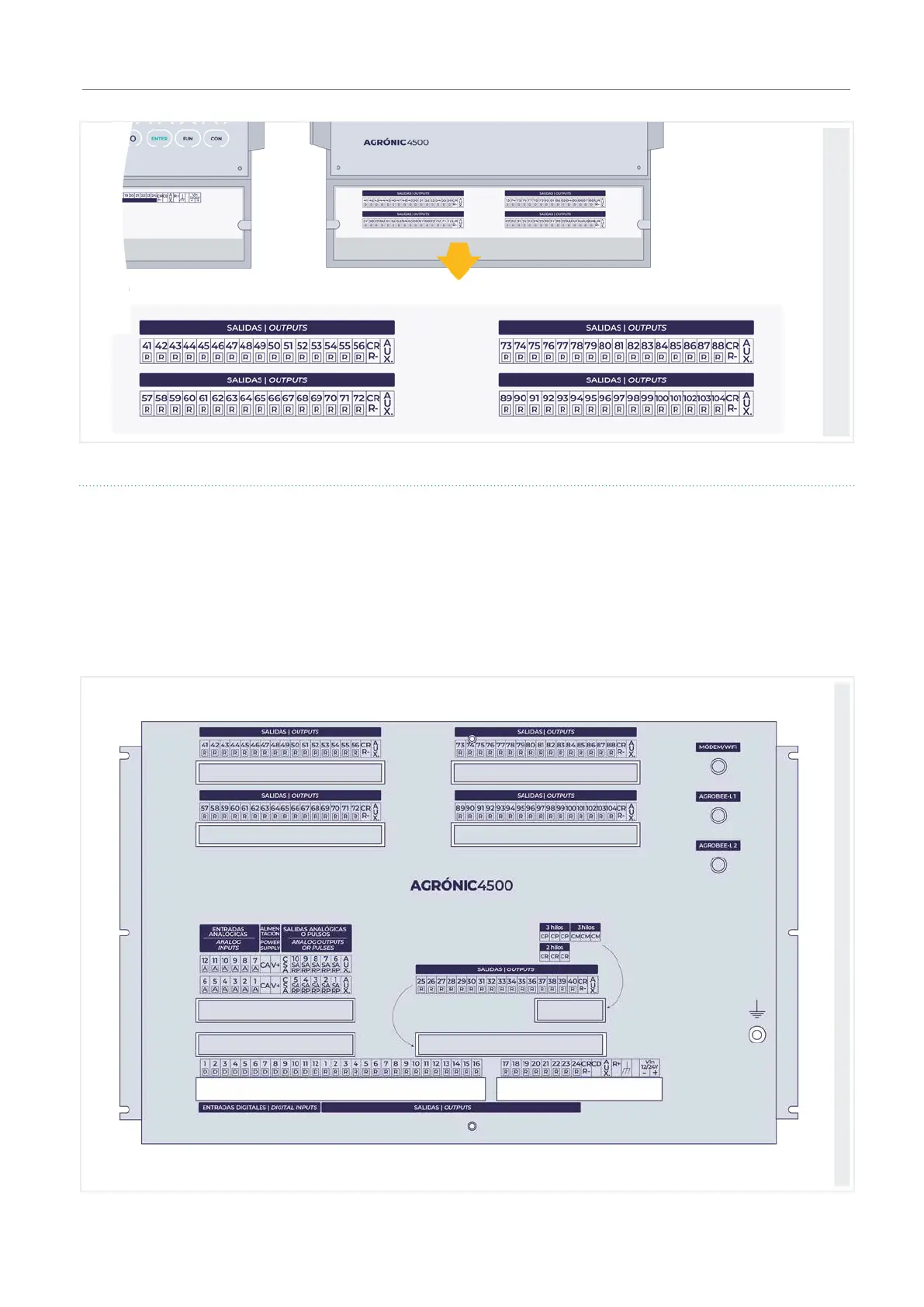

3.2. BUILT-IN FORMAT
In the built-in format, access the rear face located
inside the desk or cabinet. Here we find the connectors
for the power supply, the inputs, the outputs for the
models of 24, 40 ...
In addition, when there are options installed, there
may be the connectors for the antennas of the
AgroBee-L options or for the modem of Wi-Fi. On the
sides there can be the connector for the USB port and
the RS-485 port.
Built-in format
Box format to expand to models of
56, 72, 88 and 104 outputs
