Progressive Dynamics PD1600 Series User Manual

12

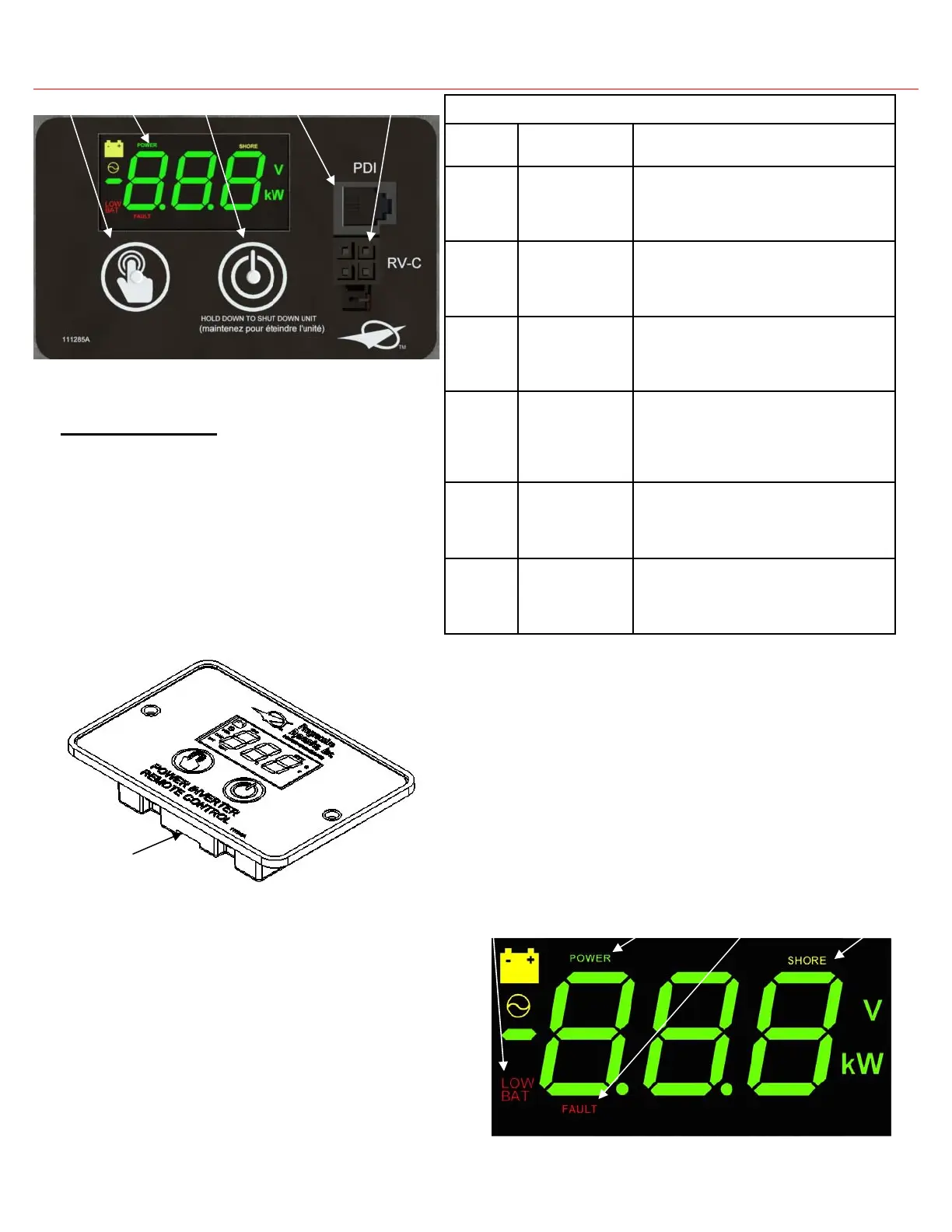

Figure 14 Display Indicators
Display Interface
Error
Code
Condition Description
E-1
Low battery volt-
age detected
Input voltage has dropped beneath 10.5V for
several seconds. The PD1600 Series inverter
will automatically restart when the input
voltage reaches 12.0V.
E-2
High battery volt-
age shutdown
Input voltage has surpassed 15.5V. The
PD1600 Series inverter will automatically
restart when the input voltage falls below
15.0V.
E-3
AC output over-
load shutdown
Output power has surpassed the continuous
power limit or the peak power limit. The
PD1600 Series inverter will not automati-
cally restart. A manual restart is necessary
E-4
Over-temperature
shutdown
Internal temperature of the inverter has ex-
ceeded its safe operating limit. The PD1600
Series inverter will automatically restart
when internal temperatures return to safe
operating conditions.
ERROR CODES
E-5
Internal Error An internal error has been detected. The
PD1600 Series inverter will not automati-
cally restart. A manual restart is necessary
E-6
Short Circuit A short circuit has been detected on the AC
output of the inverter. The inverter will not
restart. A manual restart is necessary.
Display Features
 Power Button: Press to turn on; hold to turn off
 Select Button: Cycles between display states:
Input Voltage, Output Voltage, Output
Power, Sleep, Error Code (if applicable)
 Power Indicator: Lights up green when the inverter is on
 Fault Indicator: Flashes red when an error has occurred
 Shore Indicator: Lights up yellow when AC input is detected
 Low Bat Warning Indicator: Lights up red when the battery
is nearing the end of its charge
 Sleep: Lights automatically dim after 30 seconds
 Remote port for externally mounted display
Figure 13 Error Code Descriptions
Figure 12 PD1601 Remote Display
Rear Remote Connection
NOTE: For troubleshooting error codes, consult page 14
NOTE: Remote display operates exactly the same as the dis-
play mounted to the inverter
Power Indicator Shore Power Indicator Low Bat Warning Indicator Fault Indicator
Figure 11 Display Panel
Select Button Display Power Button PDI Comm Port RV-C Comm Port
