Progressive Dynamics PD1600 Series User Manual

11
Types of AC Strain Reliefs
Push-In Style
The PD1600 Series Inverter includes knockouts for use with a standard 3/8” trade size strain relief. Use of a strain relief is required when
hard wiring your inverter. Neglecting to use a strain relief may cause undue stress and fatigue to the wiring connections on your unit. PDI
lists examples of some commonly utilized types of strain relief. Strain reliefs are not provided with purchase of the inverter, and must be
provided by installer at the time of installation.
Halex #27510 or equivalent
 3/8” trade size push–in connector-
 Material: Plastic
 Installation Instructions
1. Insert strain relief into 3/8” trade size opening
2. Push wire into slotted opening the desired distance
3. Push stripped wires into terminals blocks
4. Install wiring into terminal blocks
Metal Clamp Style
Halex #20570 or equivalent
 3/8” trade size clamp combination connector
 Material: Zinc plated metal
 Installation Instructions
1. Insert strain relief into 3/8” trade size opening
2. Slide wire through central opening
3. Push stripped wires into terminals blocks
4. Tighten the strain relief using screws on the side
The type of 3/8” trade size strain relief used is ultimately at the discretion of the installer. PDI can only recommend
types of strain relief for end use, and is not responsible for any misuse or absence of strain relief at installation.
Plastic Clamp Style
Halex #27515 or equivalent
 3/8” trade size clamp combination connector
 Material: Plastic
 Installation Instructions
1. Insert strain relief into 3/8” trade size opening
2. Slide wire through central opening
3. Push stripped wires into terminals blocks
4. Tighten the strain relief by sliding retention clip into the slot

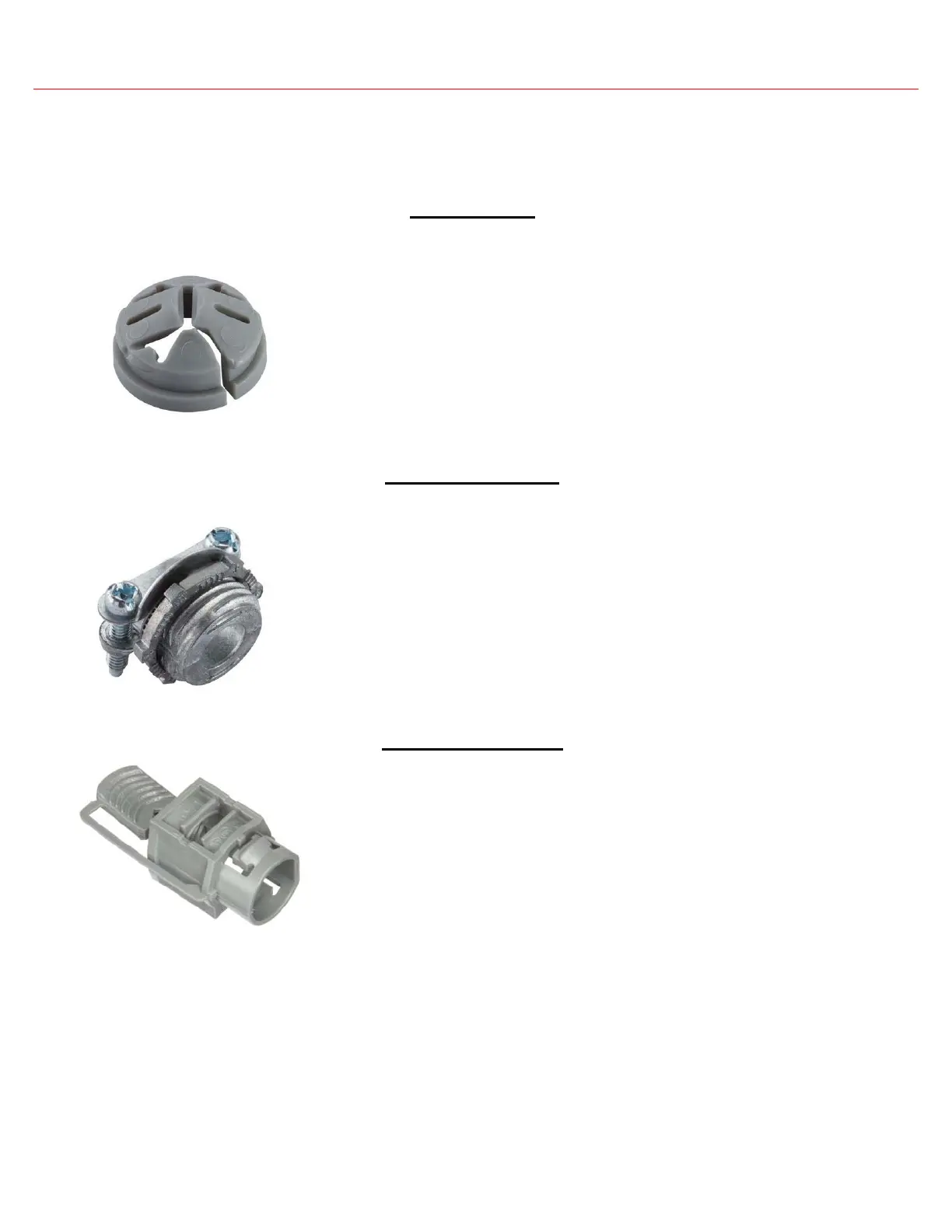

Figure 10 Recommend Strain Relief
