Progressive Dynamics PD1600 Series User Manual

16

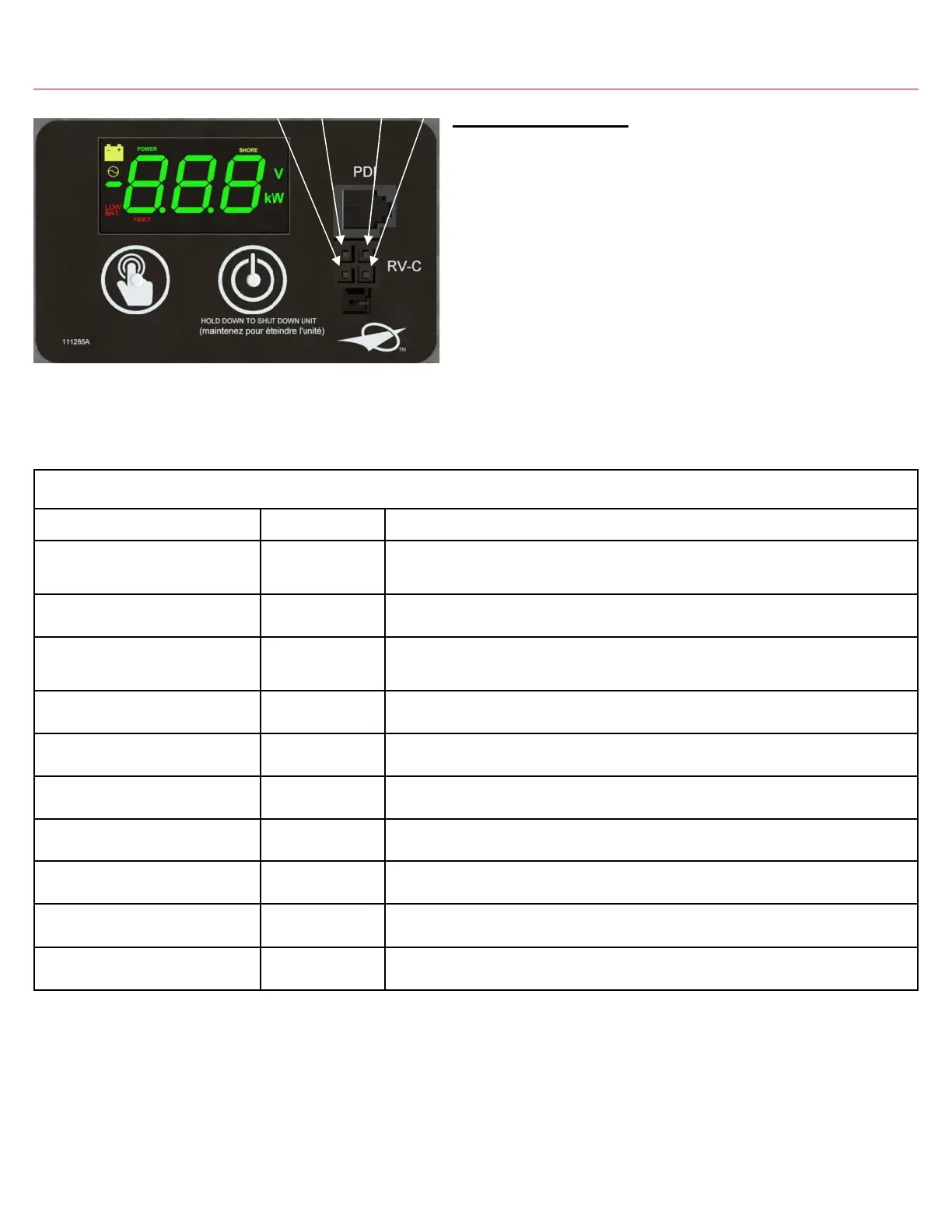

RV-C Connectivity Specification
Figure 16 RV-C Comm Port
CAN-H CAN-L NC NC
RV-C Introduction
The PD1600 Series Inverter was designed to include RV-C communi-
cations capability. RV-C is an industry developed communications
protocol that is used in many RV multiplexing systems. The PD1600
Series Inverters were released with limited functionality to turn on/off
the inverter and report back basic operating parameters. Additional
functionality will be added to the PD1600 Series Inverters as required
to operate with modern RV multiplexing systems. See chart below for
the current list of compatible Data Groups.
PD1600 Series Inverter RV-C Compatible Data Groups
Data Group Periodic Send Description
Product ID
n/a When requested the inverter responds with the make and model
“Progressive Dynamics * PD1600 Series vX.XX”
DM RV
4 seconds Provides information on Service Points in the event of a fault
Inverter AC Output Page 1
0.1 seconds Provides information on AC output frequency and voltage
Inverter AC Output Page 2
0.1 seconds Provides information on AC bypass ampacity
Inverter AC Output Page 3
0.1 seconds Provides information on AC waveform and AC output power
Inverter AC Output Page 4
0.1 seconds Data Group not yet implemented
Inverter Status
0.5 seconds Provides inverter status: Disabled, Inverter, AC Pass-through
DC Status
4 seconds Provides information on DC input voltage
Inverter Command
n/a Accepts command to turn on/off the inverter
Address Claimed
n/a When prompted the inverter indicates that it has a static address com-
patible with RV-C.
