Consult a licensed electrician or RV technician for installation assistance 814420H
The PD1600 series inverter comes with a remote display and a 50 ft long connection cable included. The Remote Display is designed for
use with only PD1600 series inverters. The remote will allow complete monitoring of your inverter. This guide will help you install and use
the inverter and the remote control, to monitor the functions.
Materials List
The inverter unit package includes the following items:
(1) PD1600 series inverter remote inverter remote
(1) Owner’s guide & mounting template
(1) Connection cable - (50 ft long connection cable included
with inverter)
NOTE:
If any of the items are missing, contact Progressive Dynamics for replacement.
Use only a cable provided by PDI. DO NOT use a cable that is not designated
for that specific unit.
Included Items & Connecting the Remote

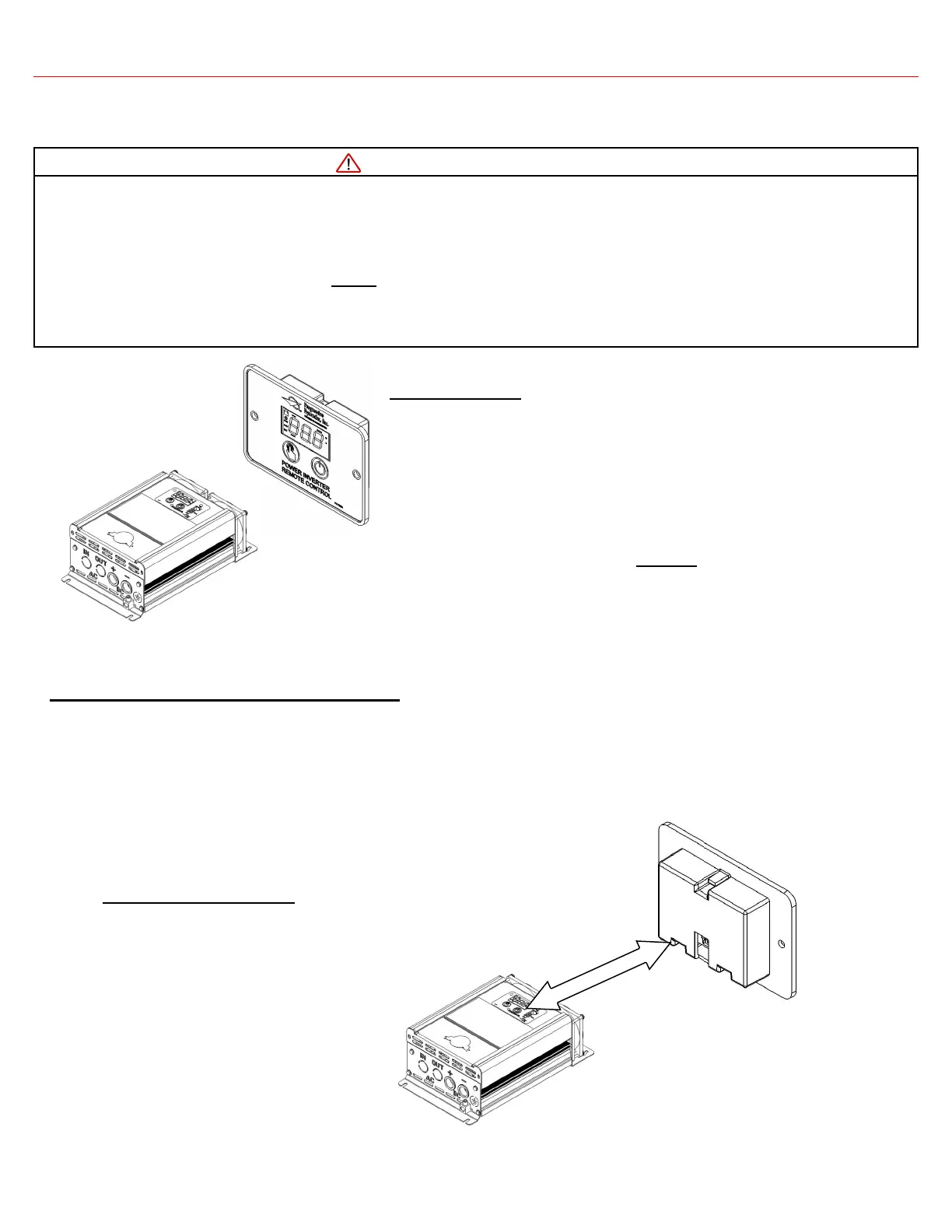

Figure 1 Inverter Remote (Communication cable not shown. 50 ft long cable included standard)
Connecting the remote to the inverter
Plug the connector plug into the port on the top of the inverter and the back of the remote control using the supplied communication
cable (see Figure 2). Failure to use a communication cable provided by PDI may result in damage to the remote display.
It is recommended that you install the remote into the designated location prior to connecting the cable to the remote and the inverter.
Please refer to the installation portion of this guide for those instructions.
Figure 2 Connecting communication cable
Verifying connection
Once the remote display is securely con-
nected to the inverter and the inverter is
turned on, it will begin displaying readouts
immediately. If your remote control display
does not begin to display information, con-
firm that the communication cable is se-
curely connected into both ports on the in-
verter and the remote control.
NOTICE: EQUIPMENT DAMAGE
This Quick Reference Guide is in addition to, and incorporated by reference, the relevant product information for each product in the
PD1600 series inverter. Before reviewing this guide, you must read the relevant product manual. Unless specified, information on safety,
specifications, installation, and operation is as shown in the primary documentation. Ensure you are familiar with that information before
proceeding.
PD1600 series remote displays are compatible ONLY with PD1600 series inverters. Attempting to use a remote display not designated for
that specific inverter could cause damage to the unit and the remote display.
Failure to follow these instructions will result in your inverter to not function properly.
PD1600 Series
Remote Display
(NOTE: REMOTE ACTUALLY
SMALLER THAN INVERTER UNIT)
(NOTE: REMOTE ACTUALLY
SMALLER THAN INVERTER UNIT)
