Progressive Dynamics PD9200 SERIES User Manual

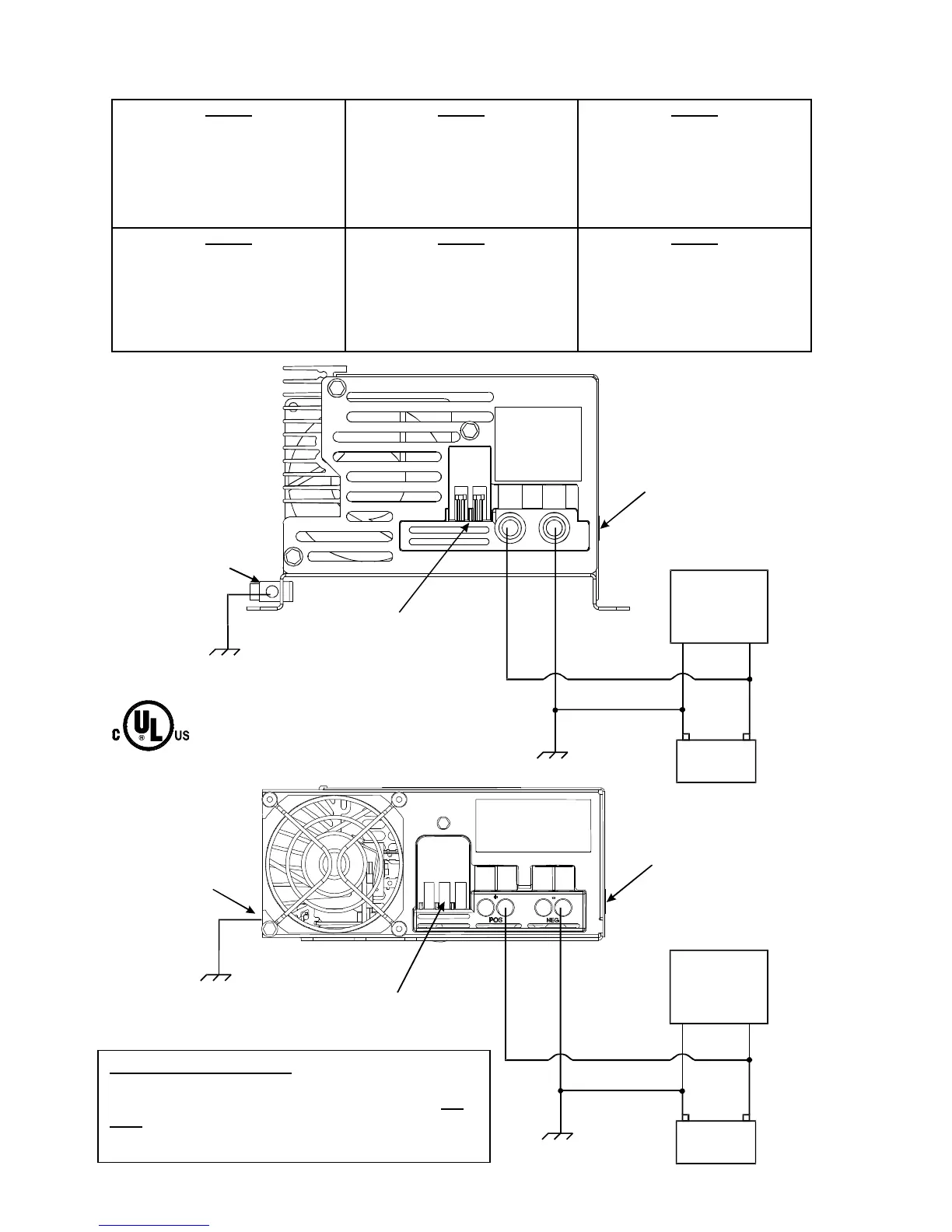

INPUT/OUTPUT SPECIFICATIONS
(Specifications subject to change without notice)
PD9230
Input: 105-130 VAC 60 Hz
500 Watts
Output: 13.6 VDC, 30 Amps
Dimensions: 4.5H x 8.25L x 7.25W
Weight: 4.5lbs
PD9240
Input: 105-130 VAC 60 Hz
600 Watts
Output: 13.6 VDC, 40 Amps
Dimensions: 4.5H x 8.25L x 7.25W
Weight: 4.5lbs
PD9245
Input: 105-130 VAC 60 Hz
725 Watts
Output: 13.6 VDC, 45 Amps
Dimensions: 4.5H x 8.25L x 7.25W
Weight: 4.5lbs
PD9260
Input: 105-130 VAC 60 Hz
1000 Watts
Output: 13.6 VDC, 60 Amps
Dimensions: 3.6H x 8L x 9W
Weight: 5.8lbs
PD9270
Input: 105-130 VAC 60 Hz
1250 Watts
Output: 13.6 VDC, 70 Amps
Dimensions: 3.6H x 8L x 9W
Weight: 5.8lbs
PD9280
Input: 105-130 VAC 60 Hz
1300 Watts
Output: 13.6 VDC, 80 Amps
Dimensions: 3.6H x 11.5L x 9W
Weight: 7.5lbs
CAUTION RISK OF FIRE:
Chassis bonding wire must be a separate wire ran directly
from the Grounding Lug provided on the converter. DO
N
OT connect Output Negative to chassis using the same
wire.
Reverse Battery
Protection Fuse(s)
Grounding
Lug
Chassis
Ground
+
-
+ -
Battery
DC
Distribution
Panel
A
uxiliary Port
Fuse Label
Reverse Battery
Protection Fuse(s)
Grounding
Lug
(located on AC
end of Unit)
Chassis
Ground
+ -
Battery
DC
Distribution
Panel
Fuse Label
A
uxiliary Port
