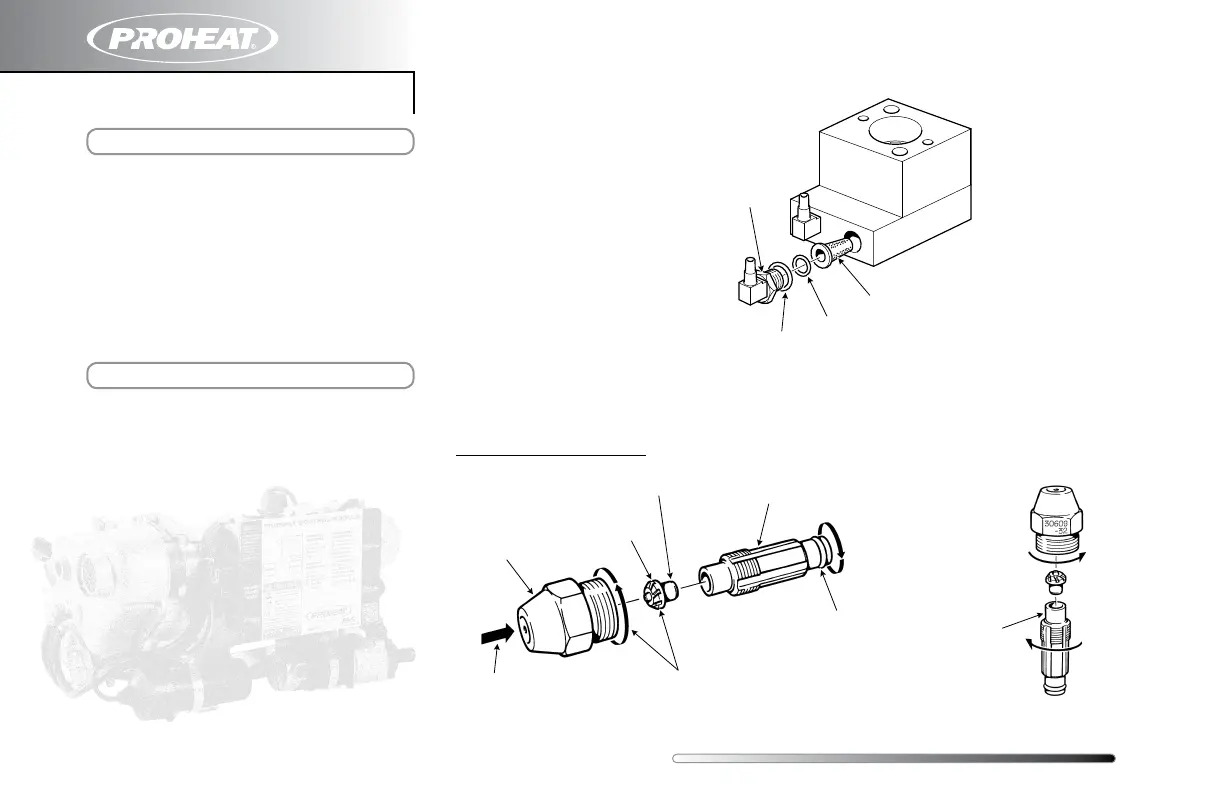

check Fuel Filter
cleaN Nozzle
• Remove and inspect filter.
Replace as necessary.
O-Ring
O-Ring
Filter
Torque to
150±10 In/Lbs
(17±1.1 Nm)
Nozzle
Distributor
Apply Compressed Air
in this Direction
Holes & Grooves
Clear
Stem
No Nicks in
O-ring
Counter Bore
• Remove and install Nozzle as per Service manual 925860. Torque to 150 in. lbs. (17.35 Nm).
• To properly clean the nozzle use a degreaser/ cleaner or carburetor cleaner in a spray can. This will
wash any dirt out and leave no residue. When using compressed air, blow into the nozzle orifice
from the head end ONLY.
Tor que To
30±3 In/Lbs
(3.4±0.3 Nm)
Hold
Upright To
Assemble
