Rev: 05.21.18 Page 4
EuroLoft™ Bed Lift (Overhead) OEM
Motor and Motor Bracket

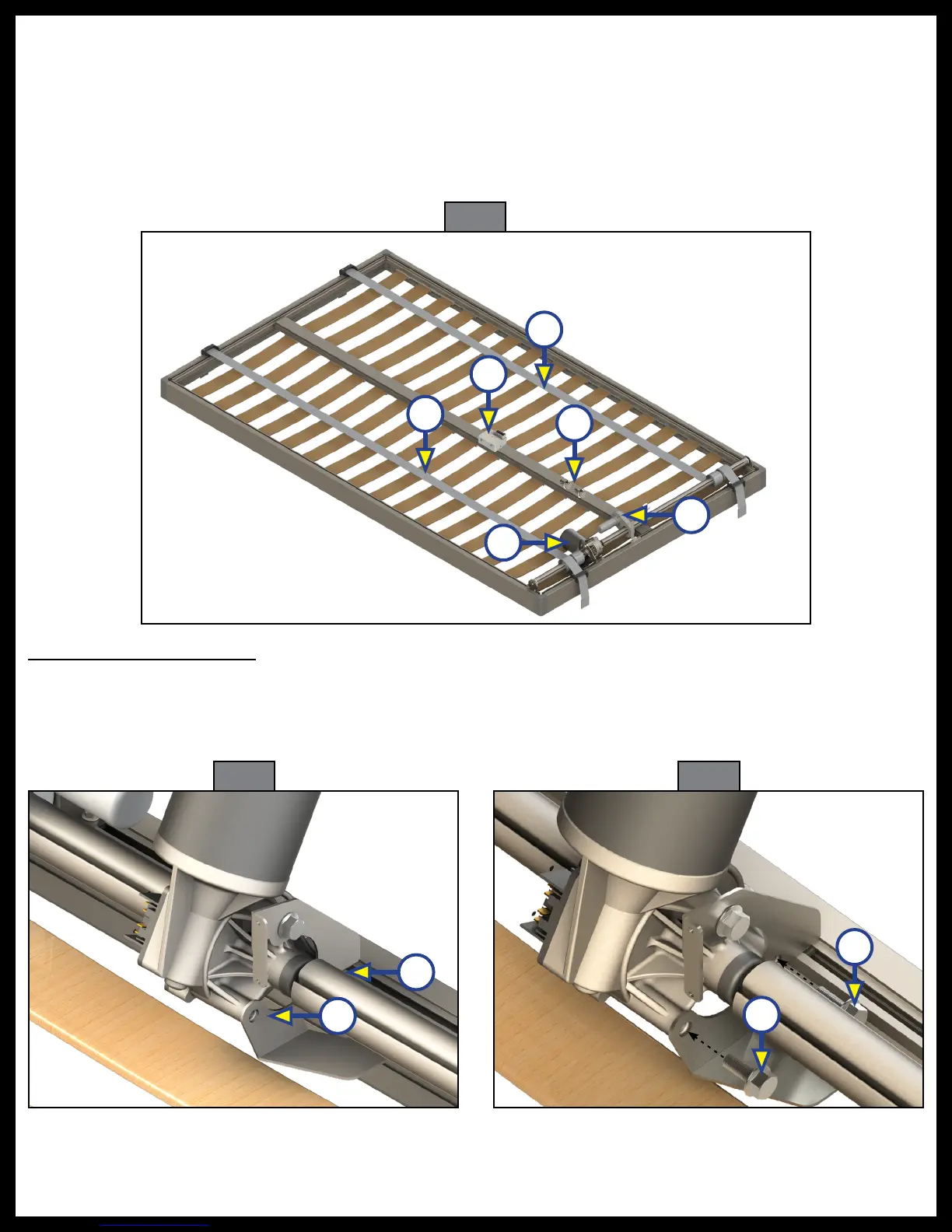

1. Rotate the motor up from the bed frame (Fig. 3C).
2. Align the motor bolt holes with the holes in the motor bracket (Fig. 4A).
3. Install the two M8-1.25 X 22mm hex head DIN 6921 steel serrated flange bolts through the motor
bracket into the motor (Fig. 5A).
A
Fig. 4 Fig. 5
A
A
A
E
E
C
D
A
Fig. 3
B
4. Remove the tape around the power controller (Fig. 3A) attached to the center support rail of the bed
frame and set aside.
NOTE: In some cases the power controller may already be installed to the motor bracket.
5. Remove the tape around the two M8-1.25 X 22mm hex head DIN 6921 steel serrated flange bolts
(Fig. 3B) attached to the center support rail of the bed frame and set aside.
6. Remove the tape holding the long drive shaft and the short drive shaft belts together in the middle of
the bed frame (Fig. 3E).
To Next Page
