Rev: 05.21.18 Page 5
EuroLoft™ Bed Lift (Overhead) OEM
Power Controller
NOTE: The power controller may already be installed to the motor bracket.
If the power controller is not attached, do as follows.

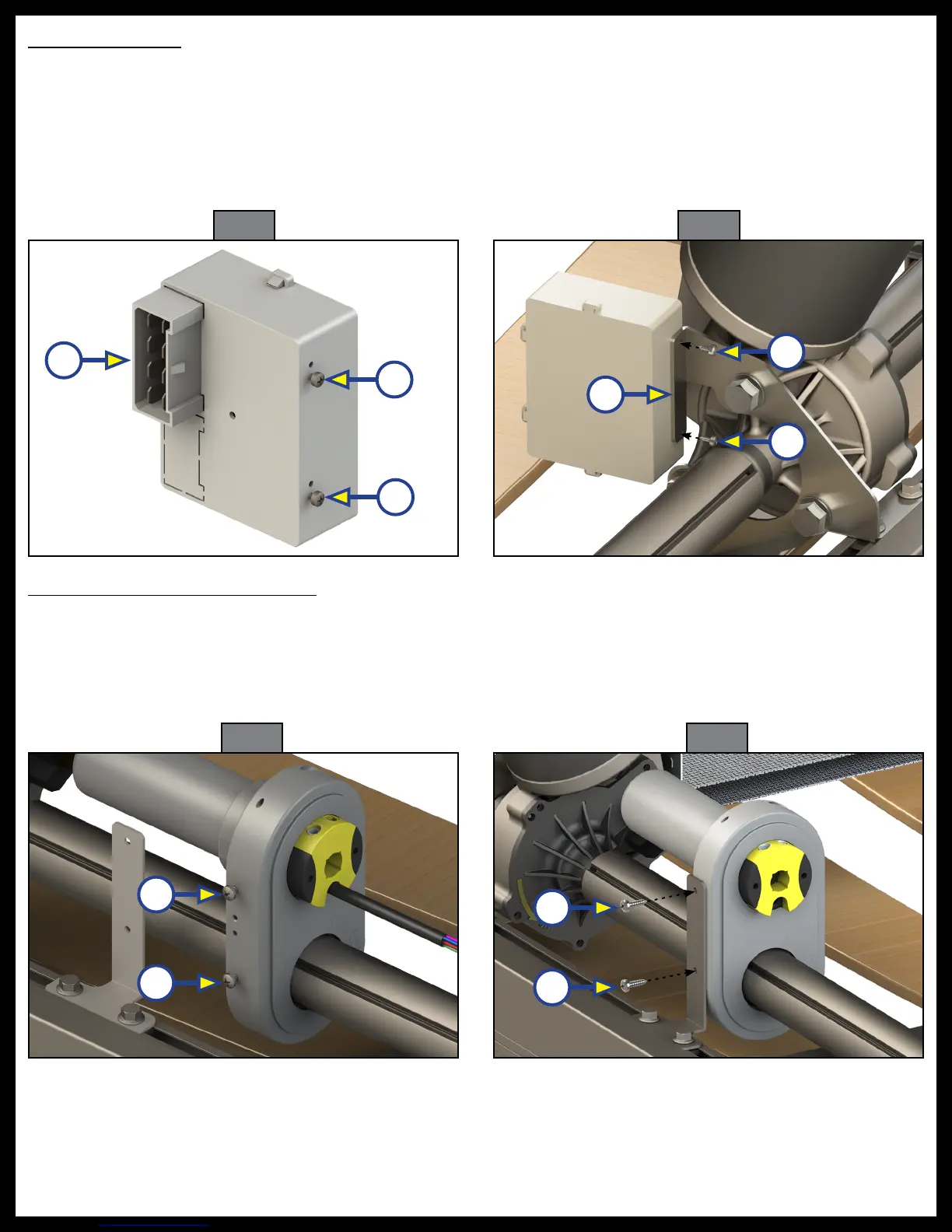

1. Remove the two #4 x 1/4" Phillips, Type A, sheet metal screws from the power controller (Fig. 6B).
2. Align the power controller screw holes with the motor bracket (Fig. 7A) screw holes.
3. Make sure the power controller interface (Fig. 6A) is facing towards the motor, then install the two
previously removed screws through the motor bracket and into the power controller (Fig. 7B).
B
Fig. 6 Fig. 7
B
B
B
A
A
ACS Module Holder and Bracket
1. Rotate the ACS module holder up from the bed frame (Fig. 3D).
2. Remove the two #6 - 18 x 3/8" Phillips, Type A, sheet metal screws inserted halfway into the ACS
module holder (Fig. 8A).
3. Align the ACS module holder with the ACS support bracket, then install the two previously removed
screws (Fig. 9A) through the bracket and into the ACS module holder.
A
A
Fig. 8 Fig. 9
A
A
