Project Source 5217236 - Step 7: Bumper Pad and Minifix Shaft on Drawer; Step 8: Drawer Box Securing; Step 9: Epoxy Bottom Runner Attachment

8
ASSEMBLY INSTRUCTIONS
8
7
9
Hardware Used
Hardware Used
Hardware Used
Bumper 2MM
CSK Screw 1 1/2
CSK Screw 5/8"
x 2
x 10
x 6
KK
II
HH
KK
BB
HH
Minix Shaft
x 1
BB
Minix Cam Lock
x 1
Step 1
Step 3
Step 2
Step 4
AA

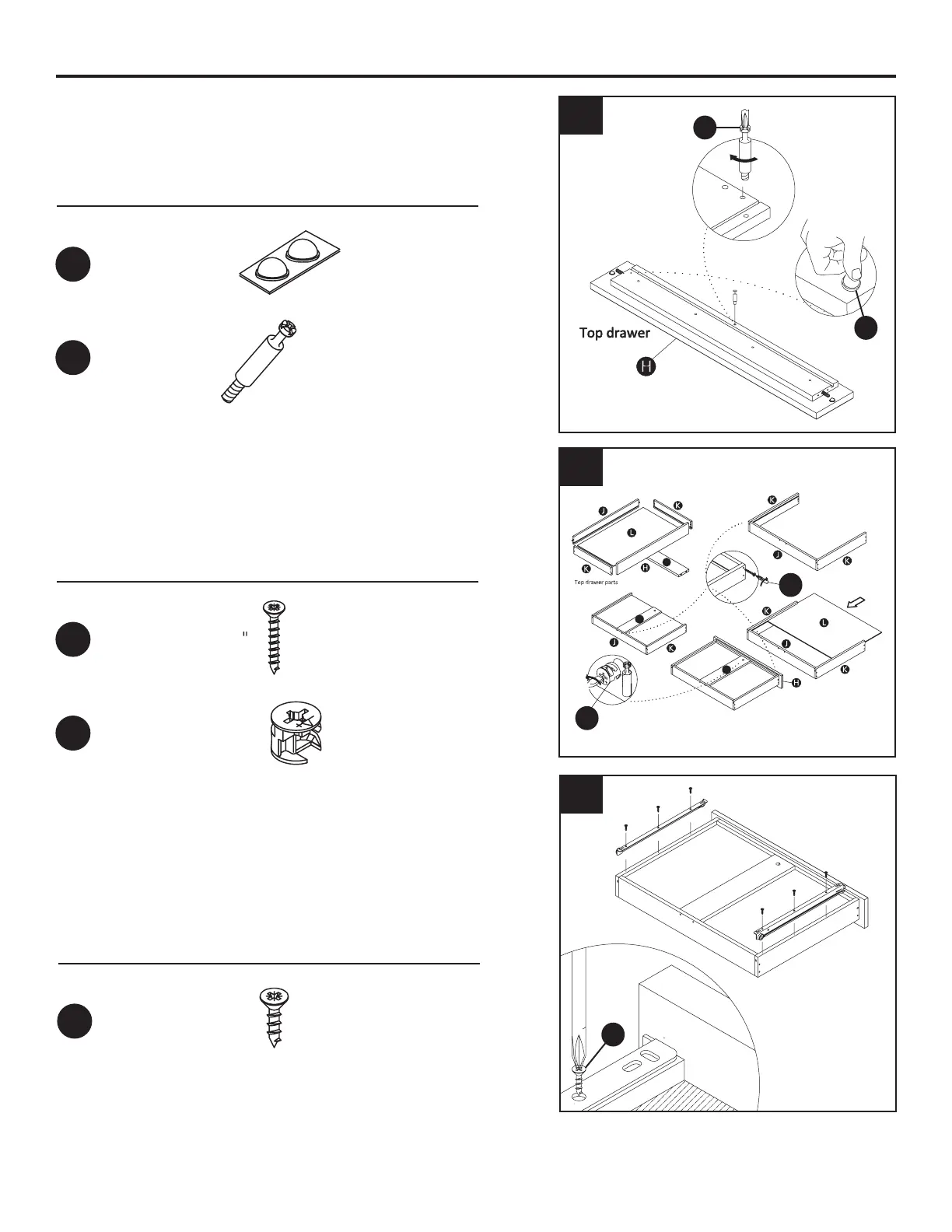

7. Place the bumper pad on the drawer front as shown.
Attach the minix shaft using phillips screwdriver as
shown.
8. Using a phillips head screwdriver, secure the
drawer box with csk screws 1 ½" as shown in the
illustration. Be careful not to over-tighten as this
may damage the product.
9. Using a phillips head screwdriver, secure the epoxy
bottom runner to the underside of the drawer
box with the csk screws 5/8" as shown in the
illustration. Be careful not to over-tighten as this
may damage the product.
AA
II
O
O
O
