6

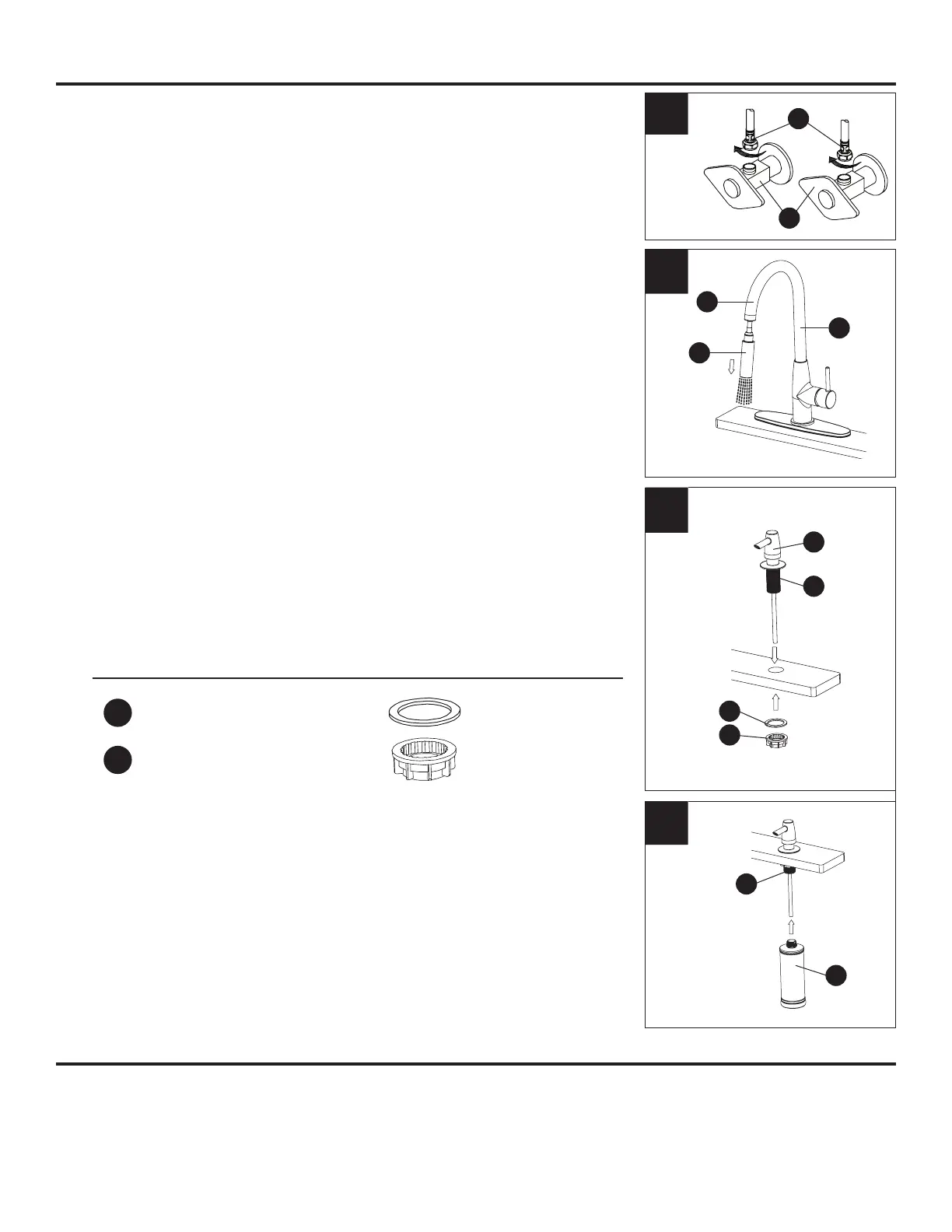

INSTALLATION INSTRUCTIONS (Continued)
9. Attach each of the remaining ends of the water supply lines
(9.1) to the hot and cold shut-off valves (9.2) and tighten with a
wrench. Do not overtighten.
9
10. Once the installation is complete, remove the spray head (10.1)
from the spout (10.2) on the faucet body (A) to ush the water
lines. Turn on the water supply and allow both hot and cold
water to run for at least one minute to ush away any debris
that could cause damage to internal parts. While the water is
running, check for leaks. If a leak occurs, gently tighten the nut
on the connection that is leaking. Turn off the water and screw
the spray head (10.1) back onto the spout (10.2) of the faucet
body (A).
10
11. To install the optional soap dispenser, unscrew the top of the
soap dispenser (E) from the plastic soap bottle and remove the
mounting nut (EE) and rubber gasket (DD). From above the
sink, insert the top of the soap dispenser into the fourth hole
opening in the sink. From underneath the sink, place the rubber
gasket (DD) onto the shank (11.1) on the soap dispenser (E)
and then thread the mounting nut (EE) onto the shank (11.1) to
secure the soap dispenser (E) to the sink.
Hardware used
DD Rubber Gasket
x 1
EE Mounting Nut
x 1
11
12. From underneath the sink, screw the plastic soap bottle (12.1)
onto the soap dispenser shank (12.2).
12
OPERATING INSTRUCTIONS
The lever handle controls the ow of hot and cold water to the faucet. Rotate the handle out and
forward for cold water. Rotate the handle out and backward for hot water. Moving the handle
outward opens the cartridge and causes water to ow from the spout. The degree of handle opening
determines the volume of water ow. Returning the handle to the original position toward the faucet
body stops the ow of water.
10.1
10.2
A
DD
EE
E
11.1
12.2
12.1
9.2
9.1
