Project Source FP4AF261CP - Install Base (With Deck Plate); Secure Faucet Base; Prepare Quick Connector

5

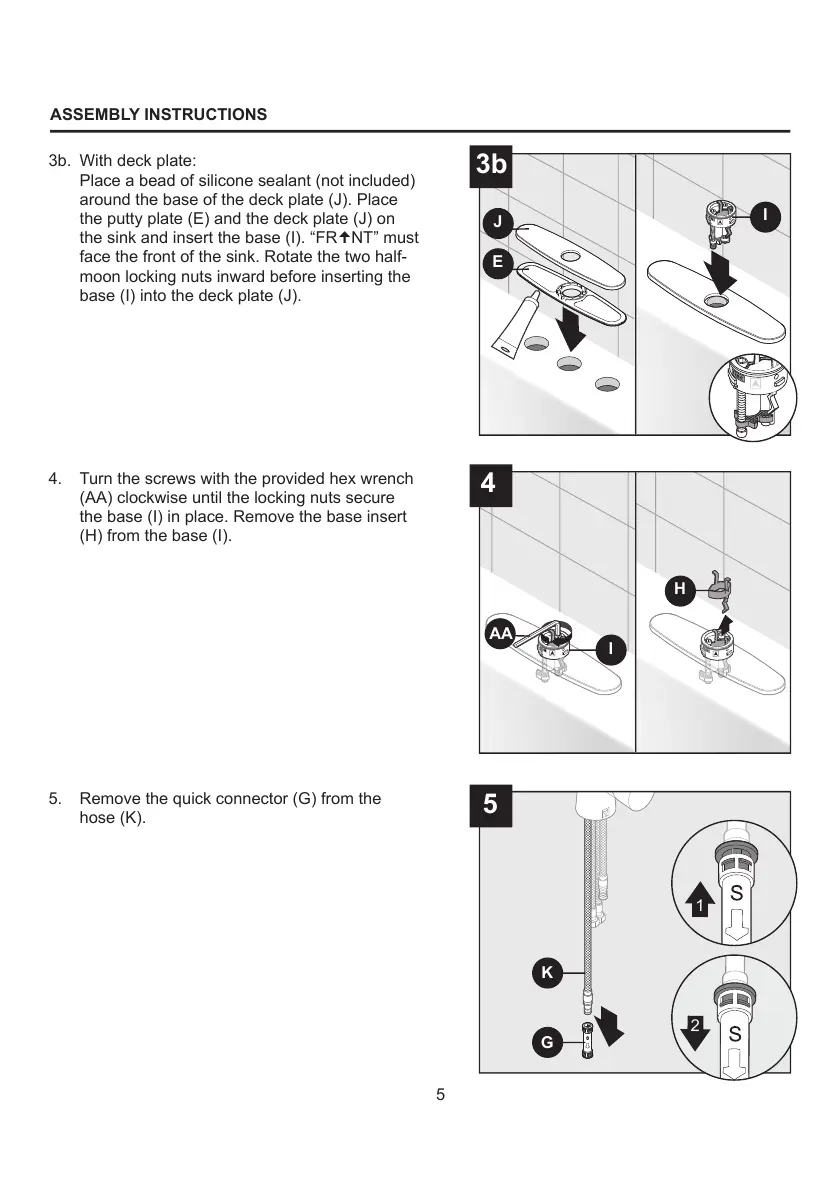

ASSEMBLY INSTRUCTIONS
5. Remove the quick connector (G) from the
hose (K).
3b. With deck plate:
Place a bead of silicone sealant (not included)
around the base of the deck plate (J). Place
the putty plate (E) and the deck plate (J) on
the sink and insert the base (I). “FR
£ NT” must
face the front of the sink. Rotate the two half-
moon locking nuts inward before inserting the
base (I) into the deck plate (J).
4. Turn the screws with the provided hex wrench
(AA) clockwise until the locking nuts secure
the base (I) in place. Remove the base insert
(H) from the base (I).
5
3b
4
5
3b
4
I
I
G
K
H
AA
E
J
1
5-1
2
5-2
