Project Source FP4AF261CP - Insert Hoses and Tubes

6
ASSEMBLY INSTRUCTIONS
7
8
6

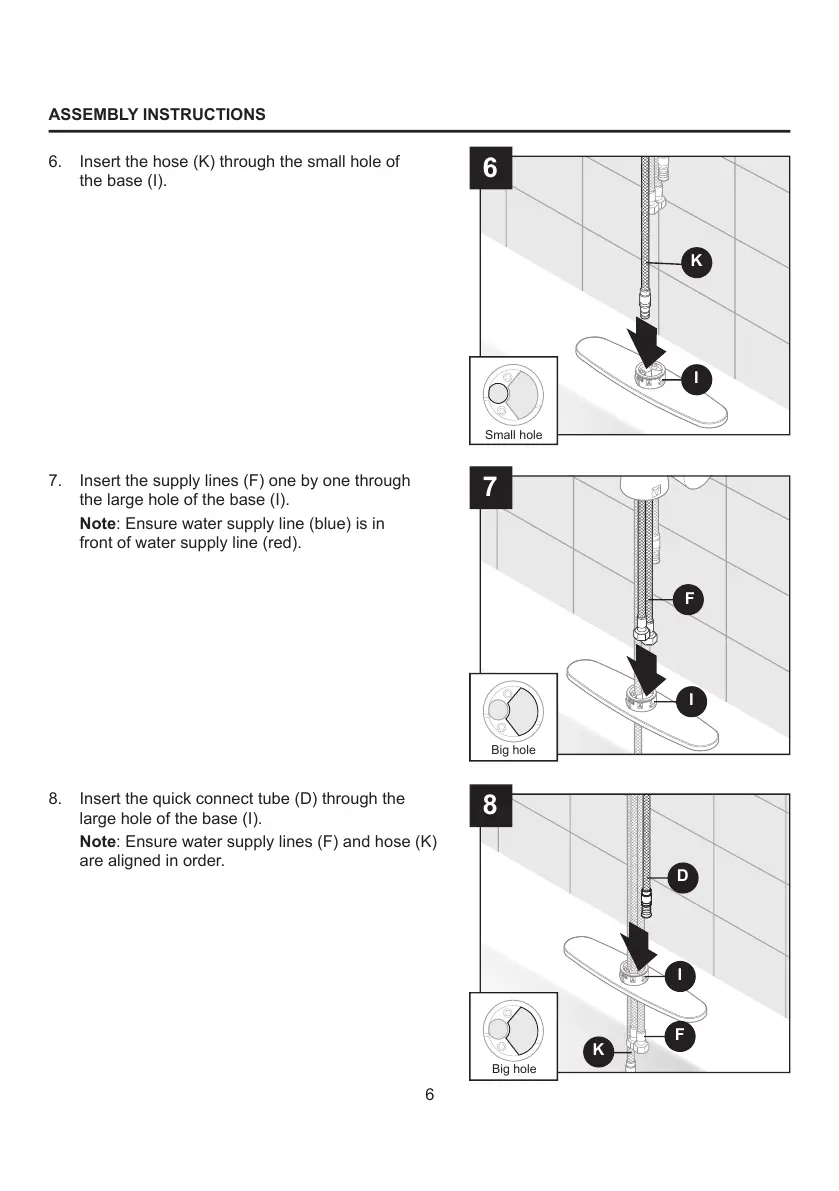

7. Insert the supply lines (F) one by one through
the large hole of the base (I).
Note: Ensure water supply line (blue) is in
front of water supply line (red).
6. Insert the hose (K) through the small hole of
the base (I).
8. Insert the quick connect tube (D) through the
large hole of the base (I).
Note: Ensure water supply lines (F) and hose (K)
are aligned in order.
7
6
8
6
8
8
K
I
I
I
F
D
K
F
Small hole
Big hole
Big hole
