ASSEMBLY INSTRUCTIONS
10
10
9
BB

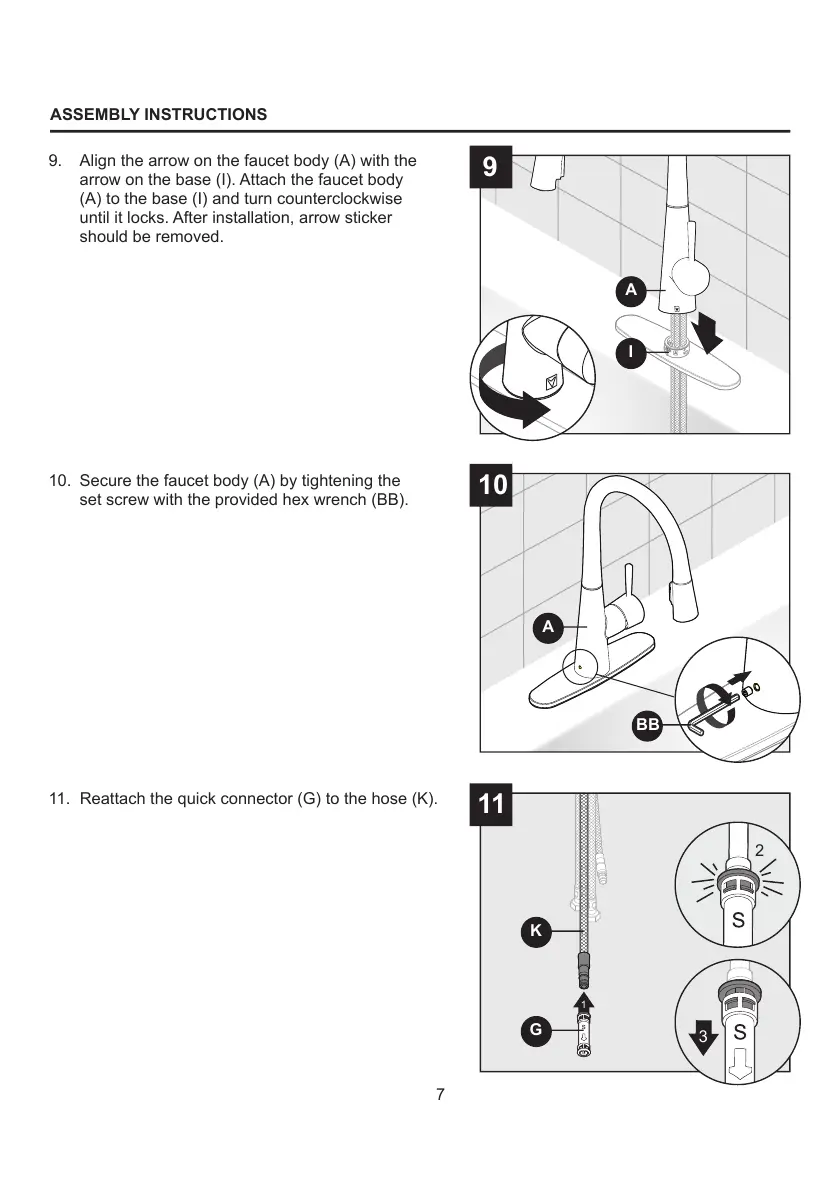

10. Secure the faucet body (A) by tightening the
set screw with the provided hex wrench (BB).
9. Align the arrow on the faucet body (A) with the
arrow on the base (I). Attach the faucet body
(A) to the base (I) and turn counterclockwise
until it locks. After installation, arrow sticker
should be removed.
10
9
A
A
I
9
1
11
11. Reattach the quick connector (G) to the hose (K).
11
G
K
3
12-2
2
12-1
