13
STEP 2C – PERMANENT HARD WIRING
ItispossibletohardwiretheDCchargingleadstothebatteryforpermanentinstallations.
TheDCleadsarepre-wiredwithcablelugstomakethisprocesseasier.
Itisrecommendedtofitacircuitbreakerorinlinefusewiththefollowingratings.(Seebelow)
IC2500&IC2500W=30Amp
IC3500=50Amp
IC5000=100Amp
IC800-24=12Amp
Connection:
1. UnscrewandremovethebatteryclipsfromtheDCleadsusinga4mmallenkey.
Note:Thesebatterychargersincludesensorwiresthatrunparalleltoboththe
positiveandthenegativeDCleads.Thisallowsforaccuratevoltagemeasurements
tobetakendirectlyfromthebattery.ItisstronglyrecommendednottocuttheDC
leadsduringinstallation.HoweveriftheDCleadsarecut,ensurethatthesensor
wiresareincludedinbothpositiveandnegativeconnections.
2. ConnectacircuitbreakerorinlinefusetotheREDPositive(+)lead(includesensor
wireifDCleadhasbeencut).
3. Connectashortcabletotheotherendofthecircuitbreakerorinlinefuse&connect
tothePositive(+)batterypost.
4. ConnectthecablelugfittedtotheBLACKleadtotheNegative(-)batterypost
(includesensorwireifDCleadhasbeencut).
5. Fitthecorrectlyratedfuse(inlinefuseapplicationsonly).
IfthechargerisusedinaPermanent/HardWiredapplicationandthevehiclewillnotbe
usedforsometime,itisbesttoleavethechargerconnectedtomainspower(turned‘On’)
so that it can maintain the battery fully charged.
Ensureanymodificationtothe240Vmainsleadiscarriedoutbyaqualifiedperson
andthatconnectiontosupplymainsisinaccordancewithNationalwiringrules.

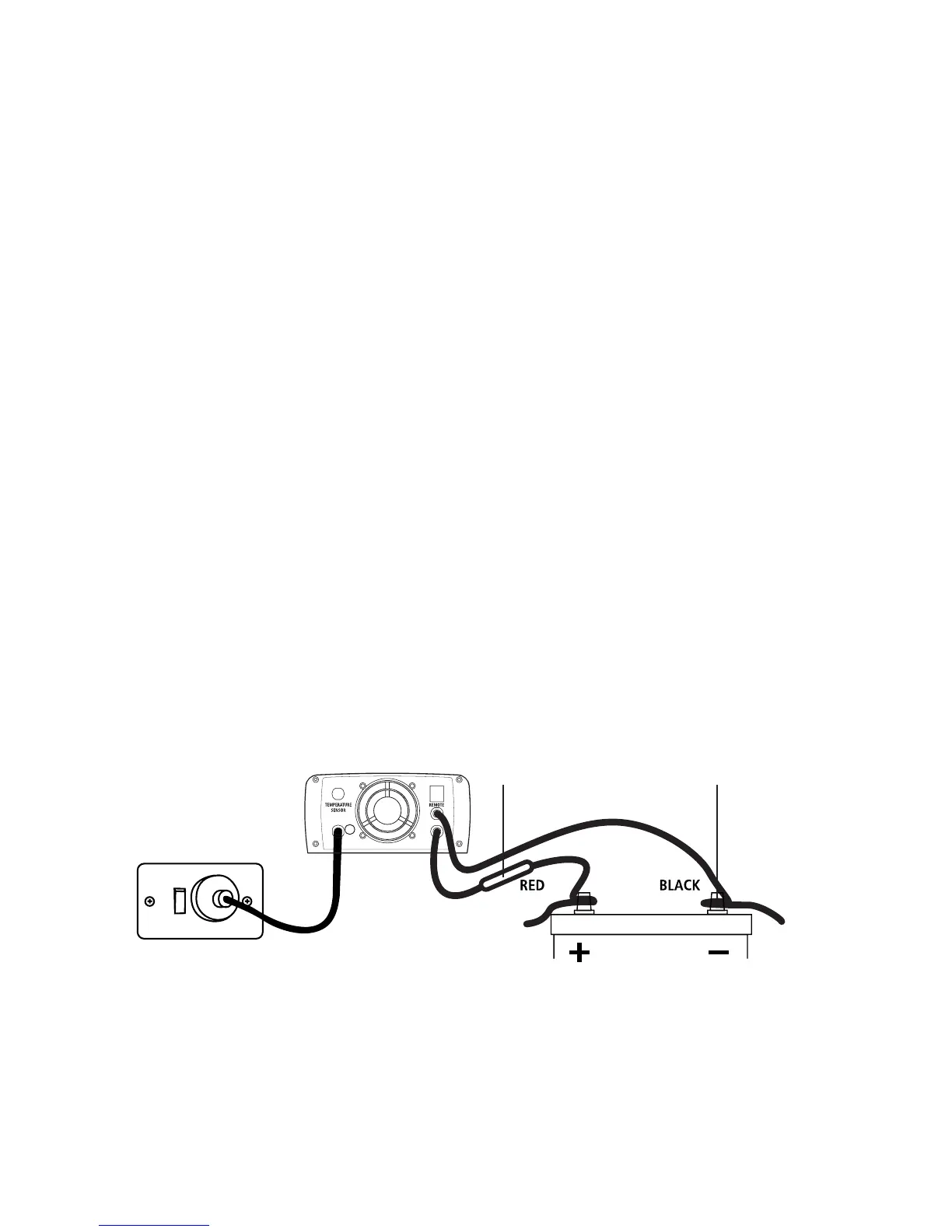

Inline fuse Ring terminal
