Projecta INTELLI-CHARGE IDC25X - Page 7

7
WIRING INSTRUCTION GUIDES

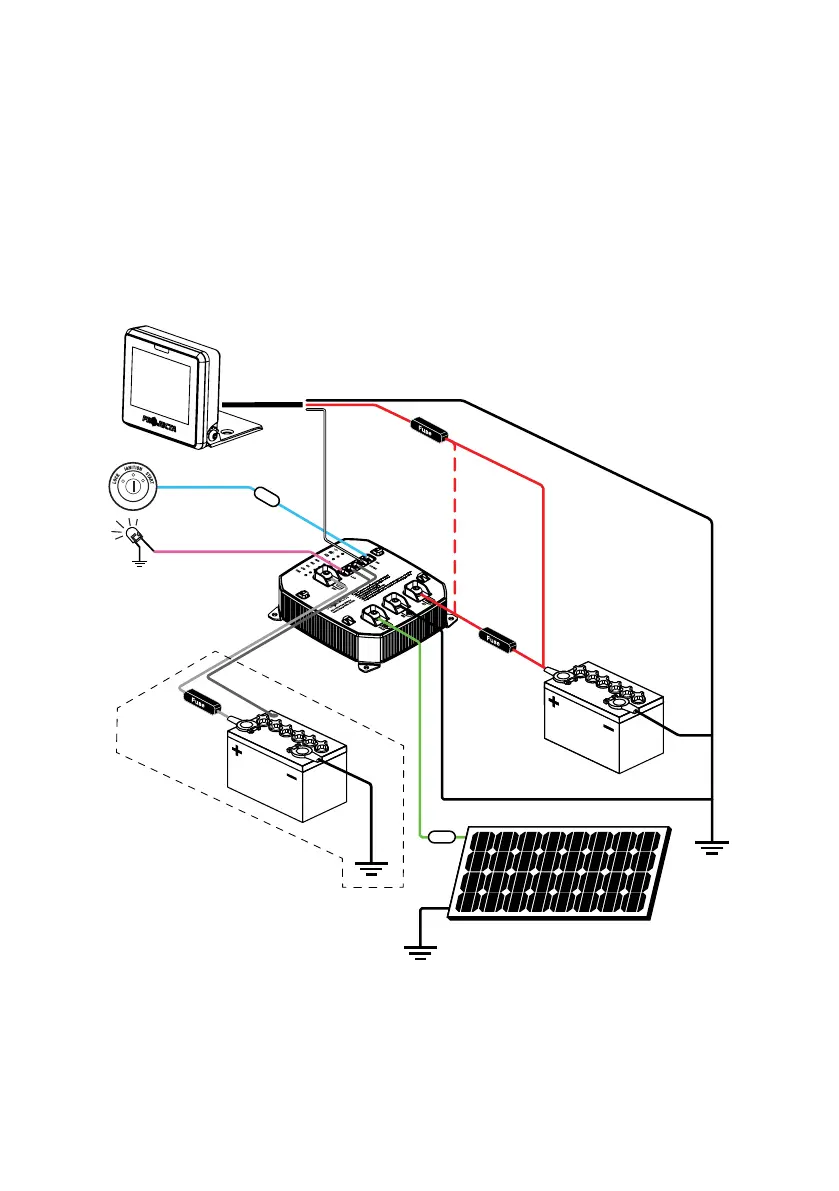

1. FULL SYSTEM WITH INTELLI-IQ CONFIGURATION
BATTERY 2
AUX BATTERY
TEMP SENSOR
IGNITION OVERIDE
OPTION 2:
DIRECT TO ALT
ON IDCX
OPTION 1:
ALTERNATOR
/STARTER BATTERY
12V SOLAR PANEL
BATTERY 1
STARTER BATTERY
GROUND
GROUND
SOLAR
LINBUS
2
2
2
ALTERNATOR/STARTER BATTERY - RED (8mm )
GROUND/CHASSIS - BLACK (8mm )
SOLAR - GREEN (8mm )
OUTPUT/AUXILLARY BATTERY - GREY (8mm )
IGNITION OVERRIDE - BLUE (1.5mm )
EXTERNAL LED - PINK (1.5mm )
2
2
2
SMART ALTERNATOR ONLY
EXTERNAL LED
FUSE
FUSE
