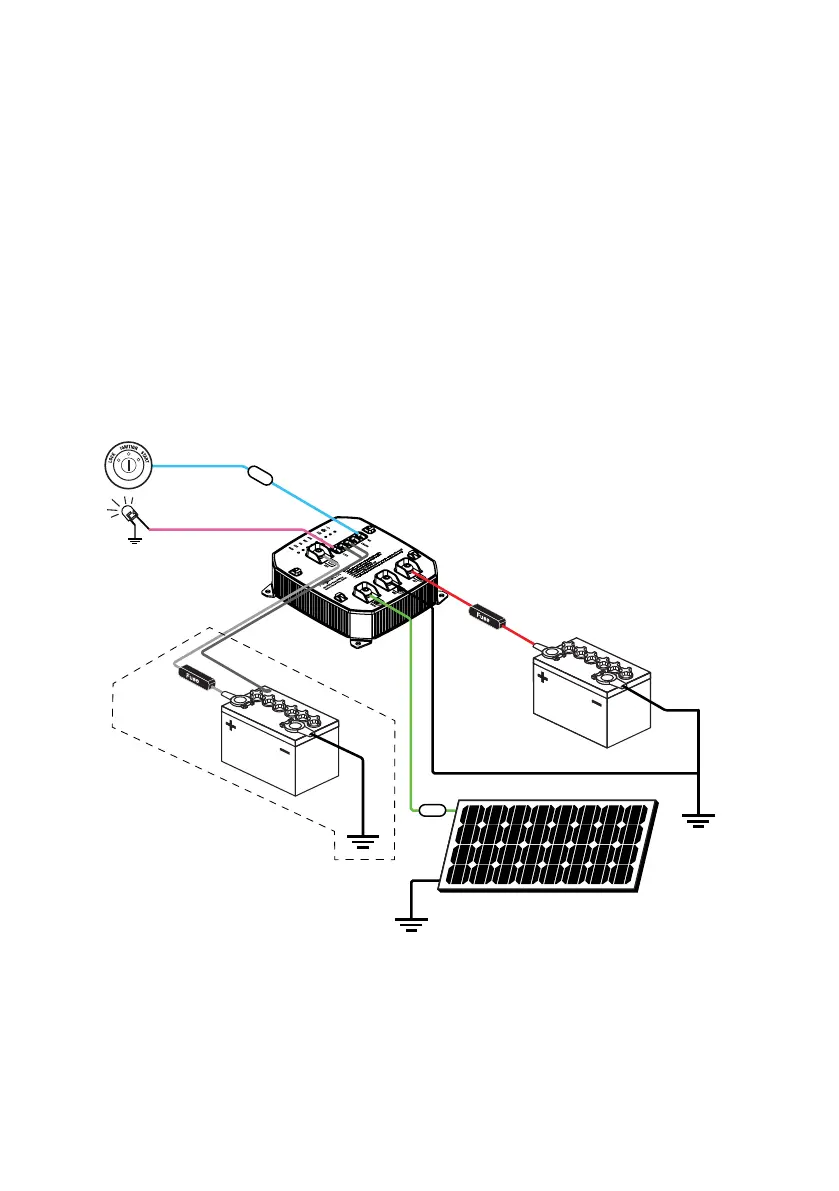

2. FULL SYSTEM CONFIGURATION
BATTERY 2
AUX BATTERY
TEMP SENSOR
IGNITION OVERIDE
12V SOLAR PANEL
BATTERY 1
STARTER BATTERY
GROUND
GROUND
SOLAR
2
2
2
ALTERNATOR/STARTER BATTERY - RED (8mm )
GROUND/CHASSIS - BLACK (8mm )
SOLAR - GREEN (8mm )
OUTPUT/AUXILLARY BATTERY - GREY (8mm )
IGNITION OVERRIDE - BLUE (1.5mm )
EXTERNAL LED - PINK (1.5mm )
2
2
2
SMART ALTERNATOR ONLY
EXTERNAL LED
FUSE
FUSE
