DISPLAY SCREEN INSTALLATION
Choose a at location which is easily accessible and easy to view on the display screen. The
location should be in the vehicle, away from the weather.
Drill a 15mm diameter hole using the provided drilling template to allow the connector to pass
through.
Clean the mounting location, removing any dirt, foreign particles, and rust.

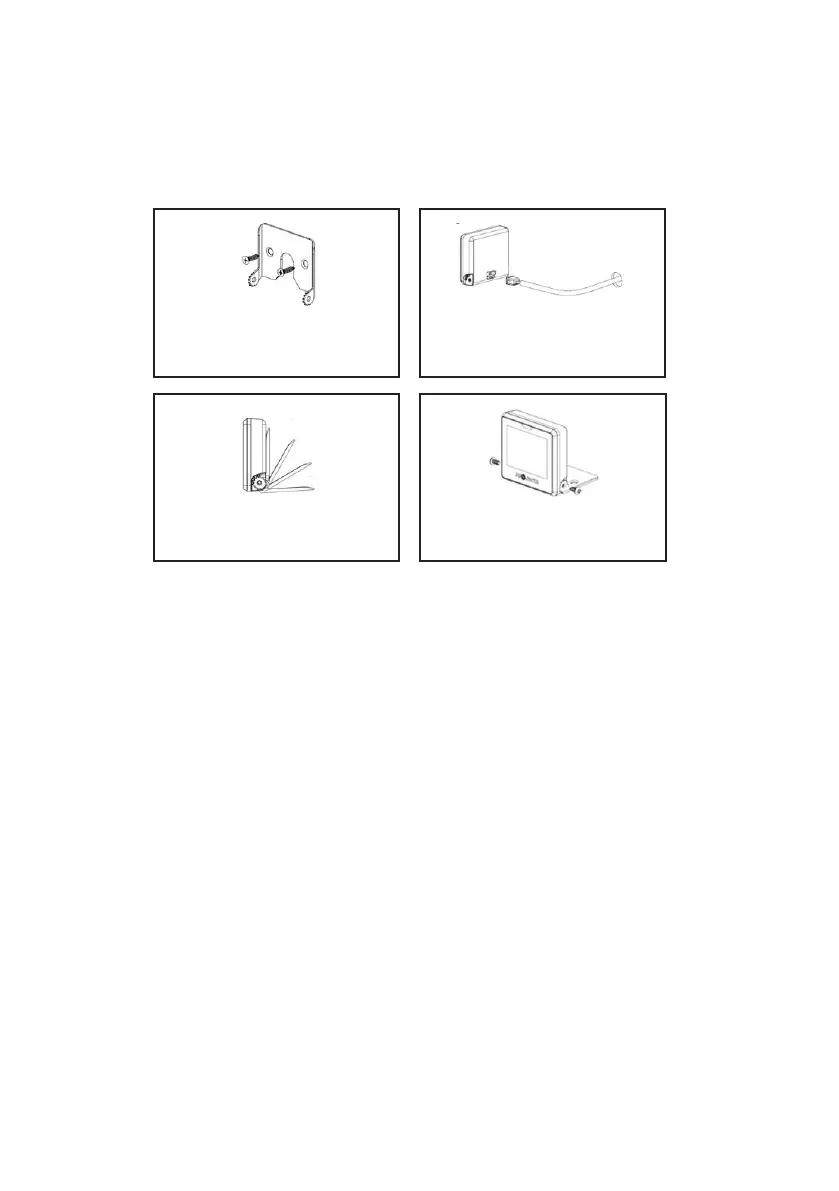

A. Using the supplied mounting screws:
1. Attach the bracket with self-tapping
screws to the desired location.
3. Insert the screen in the bracket,
adjust for viewing, and ensure proper
gear engagement.
4. Fasten the bracket and screen with
provided screws and hex key.
2. Thread the loom through the pre-
drilled hole. Then, connect the plug to
the smart display’s back receptacle.
Note: The accompanying self-tapping mounting screws are only suitable for use on wooden or plastic
material surfaces and must not be used on high-hardness metal materials or stone surfaces.
