360 Degree Duty
7.9 Lifting Duties
The current duty is indicated on the Lifting Mode screen. The system can be calibrated
with just one duty for use throughout 360 degrees of slew, most machines will be cali-
brated in this way.
If more than one duty has been calibrated, it will either be selected by slew angle or auto-
matically selected using a switch or other input.
Equipment based duties may be axle status, support blade stabiliser position, telescopic
extension position, and or secondary equipment. These lists are not exhaustive.
Altering the duty will not affect the current lifting point selected (See section 7.8).
Slew angle based duties may be Over Side and Over Front / Rear lifting arcs for in-
creased lifting capacity. Example above shows Safe Working Area switched on (See
section 7.11, 14.2)

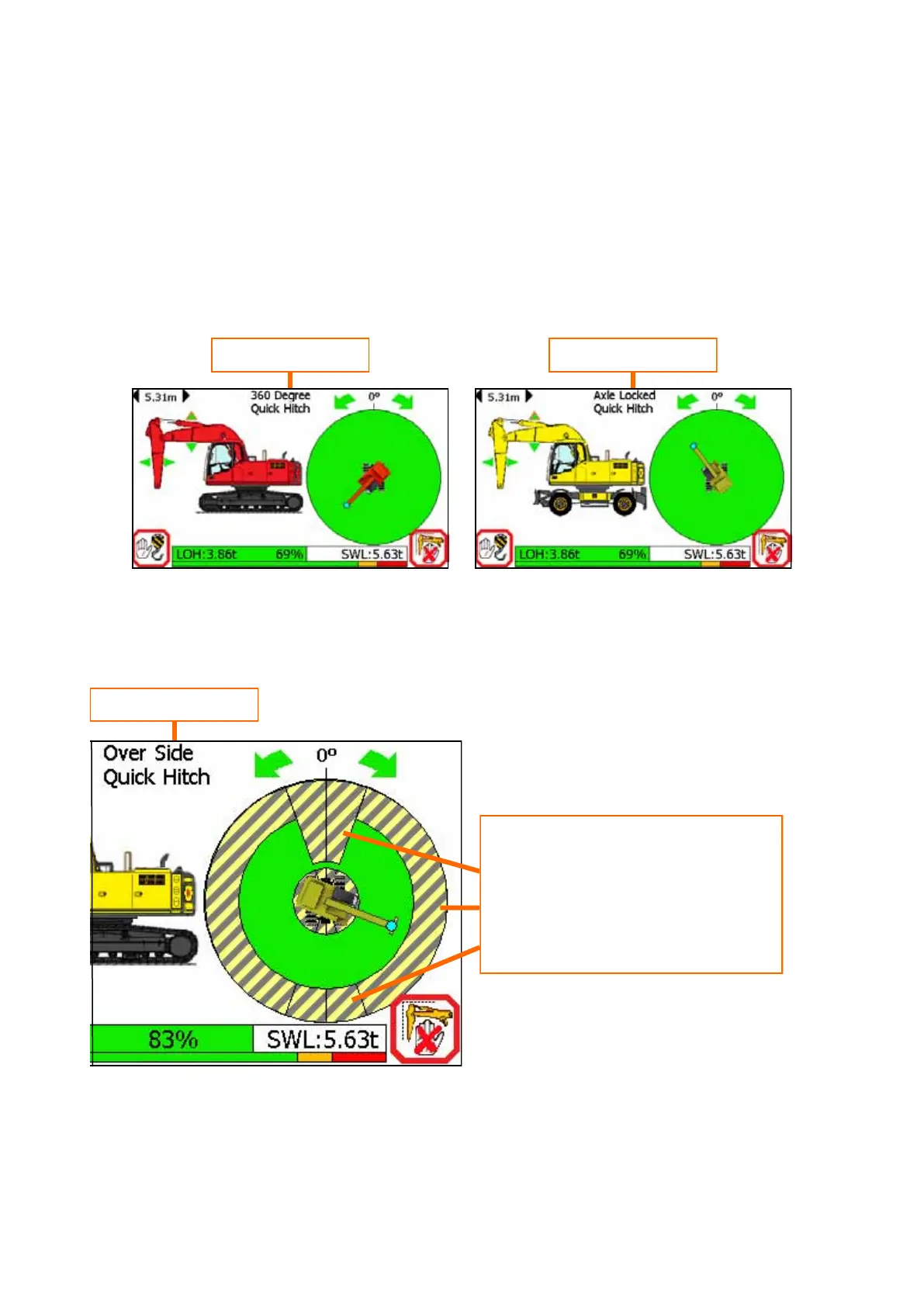

Axle Locked Duty
Over Side Duty
With Safe Working Indication ON:
Over Front duty
Over Side Duty
Over Rear Duty
To Next Page
