8.4 Low Limits
8.4.1 Low Limit Menu
A low limit can be set by entering a known height on the keypad
or by manually moving the machine to the desired limit.
Using the Low Limits Menu, the low limit can be switched ON and OFF, a low
limit can be set to a known value, or the low limit can be set to the current low-
est point.
See sections 8.4.2 to enter a known low and section 8.4.3 for setting the limit
by moving the machine.

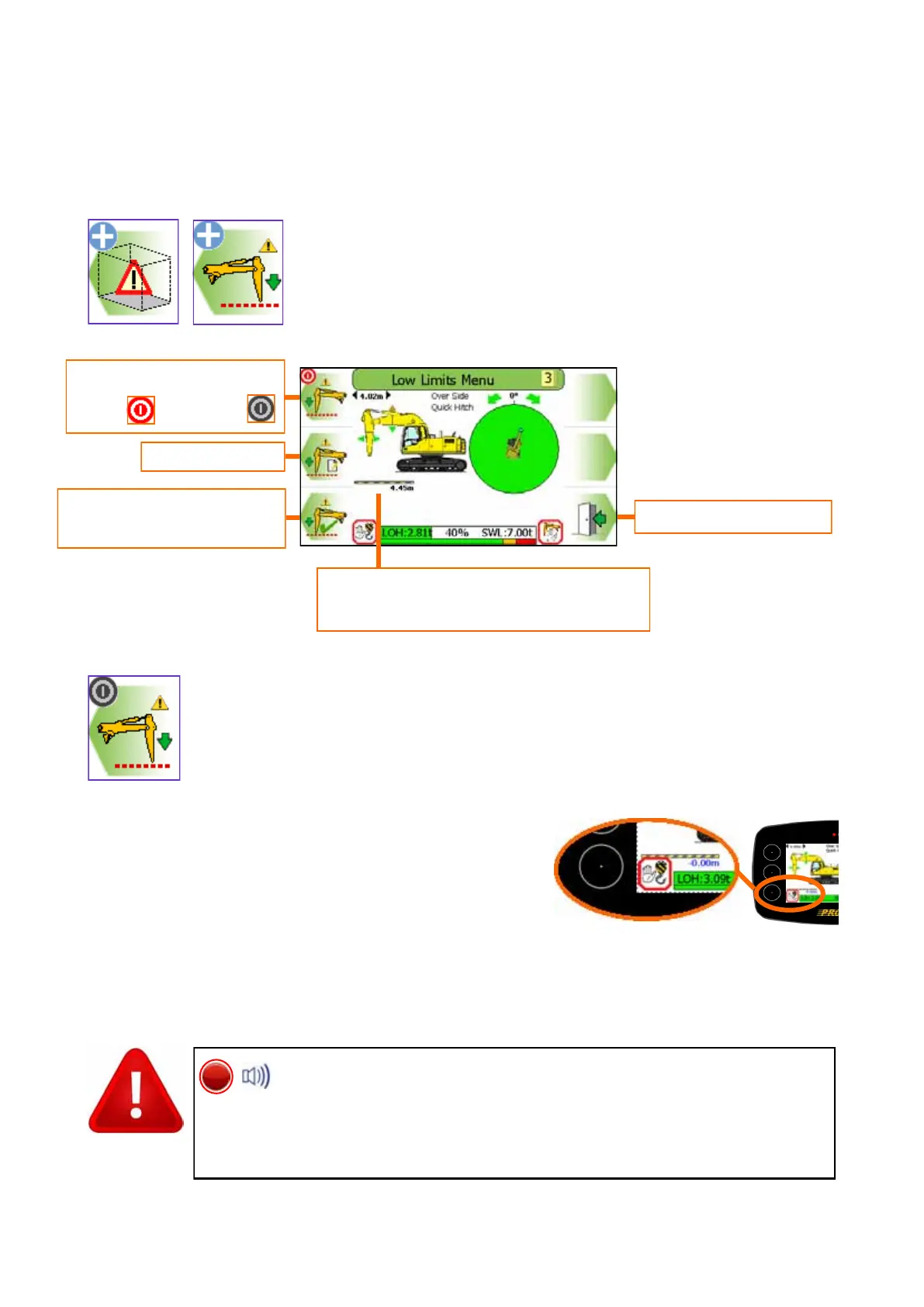

With a Low limit set, the screen will display normally
display the current furthest point value. To display the
current limit value, exit to the full screen and hold any
button for three seconds, the value will then turn blue
indicating it is the current limit value.
Exit to previous menu
Enter a value
Set low limit using current
lowest part of equipment
Switches low monitoring
ON and OFF
Once a low limit set, the internal alarm will sound and the RED
LED will light if the equipment exceeds the limit. Always check that
the low limit activates at the set point. The restriction cannot be deactivated
if in the alarm state. Observe the operational limitations given in section 4.
Current lowest point. Only displayed if
a low limit is set.
To Next Page
