8.2.1 Max Radius Limit

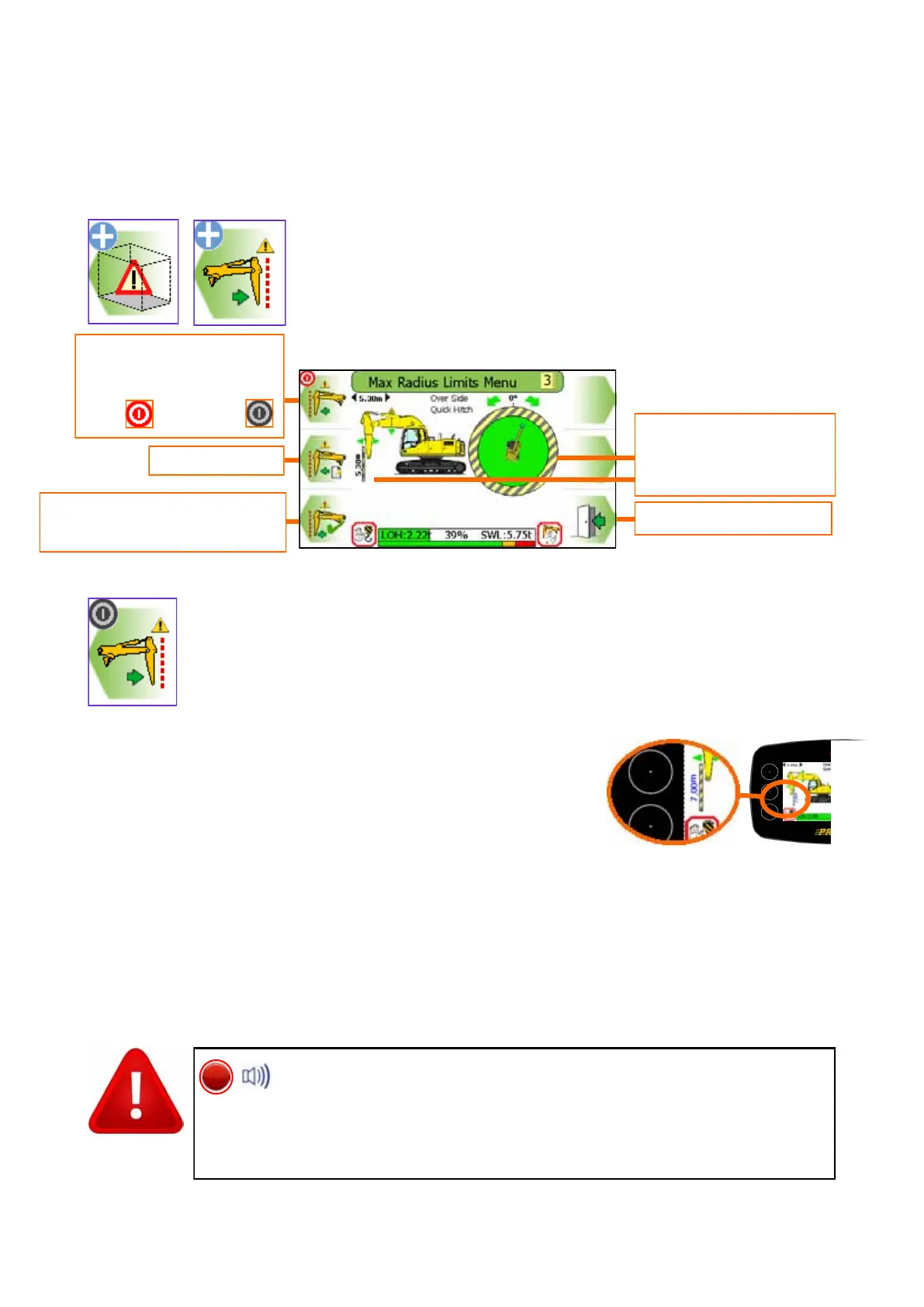

8.2.1 Max Radius Limit Menu
A max radius limit can be set by entering a known radius on the
keypad or by manually moving the machine to the desired limit.
Using the Max Radius Limits Menu, the max radius limit can be switched ON
and OFF, a max radius limit can be set to a known value, or the max radius
limit can be set to the current farthest point.
See sections 8.2.2 to enter a known max radius and section 8.2.3 for setting the limit by
moving the machine.
With a Max radius limit set, the screen will display normally
display the current furthest point value. To display the current
limit value, exit to the full screen and hold any button for three
seconds, the value will then turn blue indicating it is the current limit value.
Enter a value
Set radius limit using current
farthest part of equipment
Switches max radius
monitoring
ON and OFF
Exit to previous menu
Once a max radius limit set, the internal alarm will sound and the
RED LED will light if the equipment exceeds the current limit. Al-
ways check that the current limit activates at the set point. The restriction
cannot be deactivated if in the alarm state. Observe the operational limita-
tions given in section 4.
Current furthest point.
Only displayed if a
max radius limit is set.
