562500-000, Issue1.0, May 2013
33 of 69

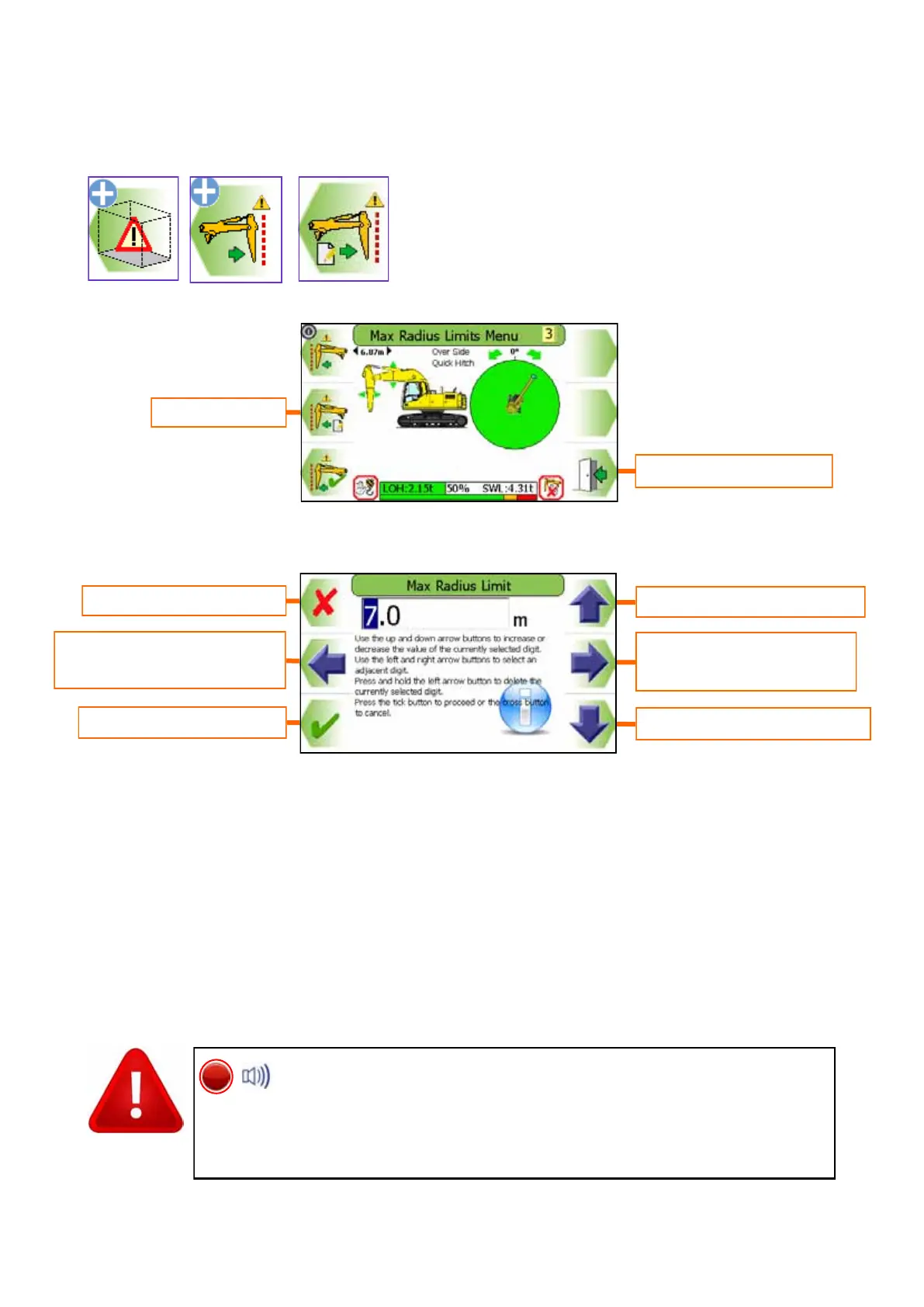

8.2.2 Max Radius Limit Setting - Known Radius
A known limit can be entered into the display:
Press the ’Enter a value’ button
Use the UP and DOWN arrows to increase and decrease the highlighted number. Use
the LEFT and RIGHT arrows to move the highlighter to the left and to the right.
Increases highlighted digit
Decreases highlighted digit
Accept displayed value
Cancel without change
Moves highlighter to left /
Hold to delete digit
Moves highlighter to right /
Hold to delete digit
Enter a value
Exit to previous menu
Once a max radius limit set, the internal alarm will sound and the
RED LED will light if the equipment exceeds the current limit. Al-
ways check that the current limit activates at the set point. The restriction
cannot be deactivated if in the alarm state. Observe the operational limita-
tions given in section 4.
