8.3 Min Radius
8.3.1 Min Radius Limit Menu
A min radius limit can be set by entering a known radius on the
keypad or by manually moving the machine to the desired limit.
Using the Min Radius Limits Menu, the min radius limit can be switched ON
and OFF, see sections 8.3.2 to enter a known min radius and section 8.3.3 for
setting the min radius by moving the machine.
With a Min radius limit set, the screen will display normally
display the current nearest point value. To display the current
limit value, exit to the full screen and hold any button for three
seconds, the value will then turn blue indicating it is the cur-
rent limit value.

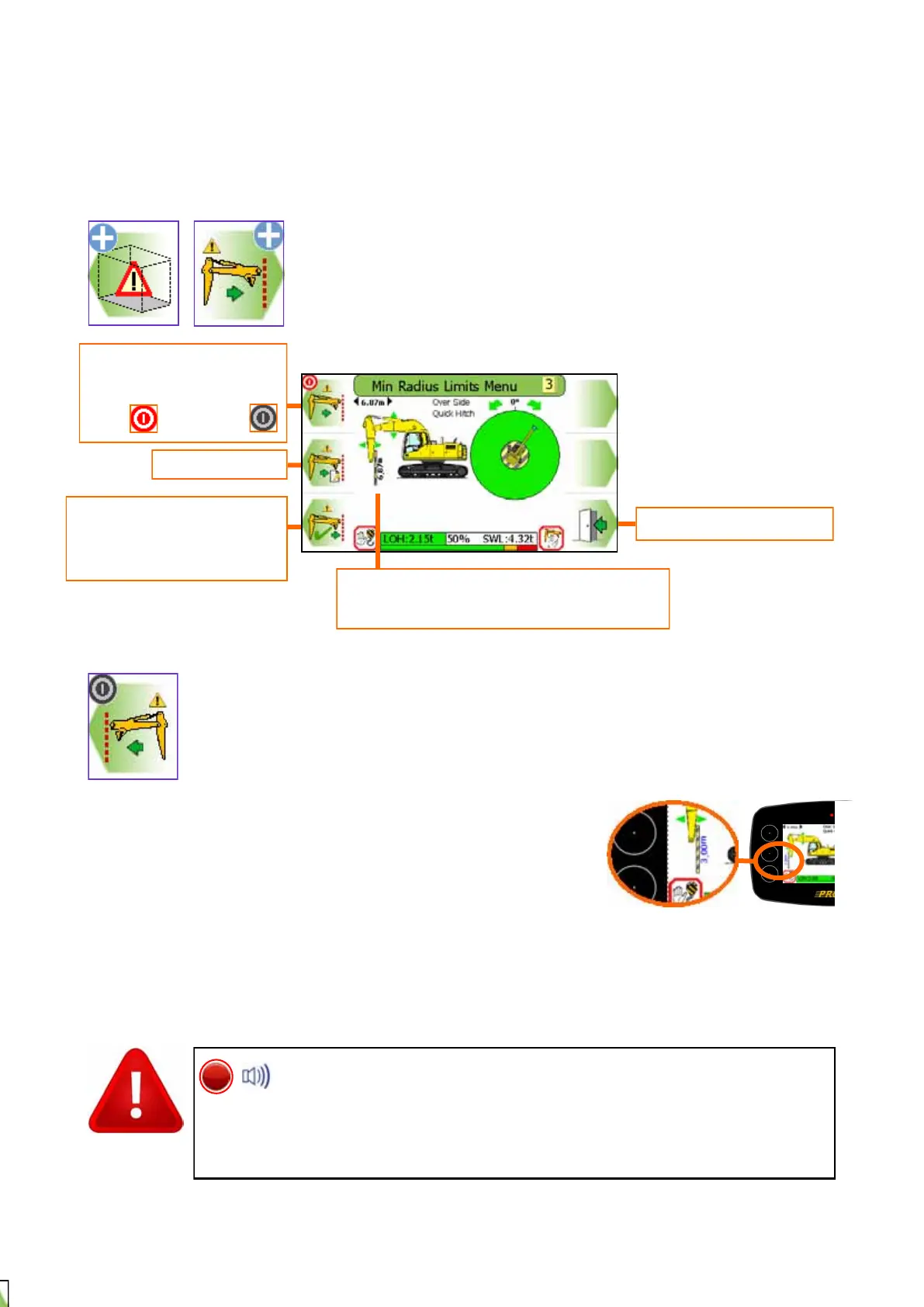

Enter a height
Set min radius limit using
current nearest part of
equipment
Exit to previous menu
Switches min radius
monitoring
ON and OFF
Once a min radius limit set, the internal alarm will sound and the
RED LED will light if the equipment exceeds the current limit. Al-
ways check that the current limit activates at the set point. The restriction
cannot be deactivated if in the alarm state. Observe the operational limita-
tions given in section 4.
Current nearest point. Only displayed if
a height limit is set.
To Next Page
