Proline UPS I3000 User Manual

-21-
6.4 NO output mode

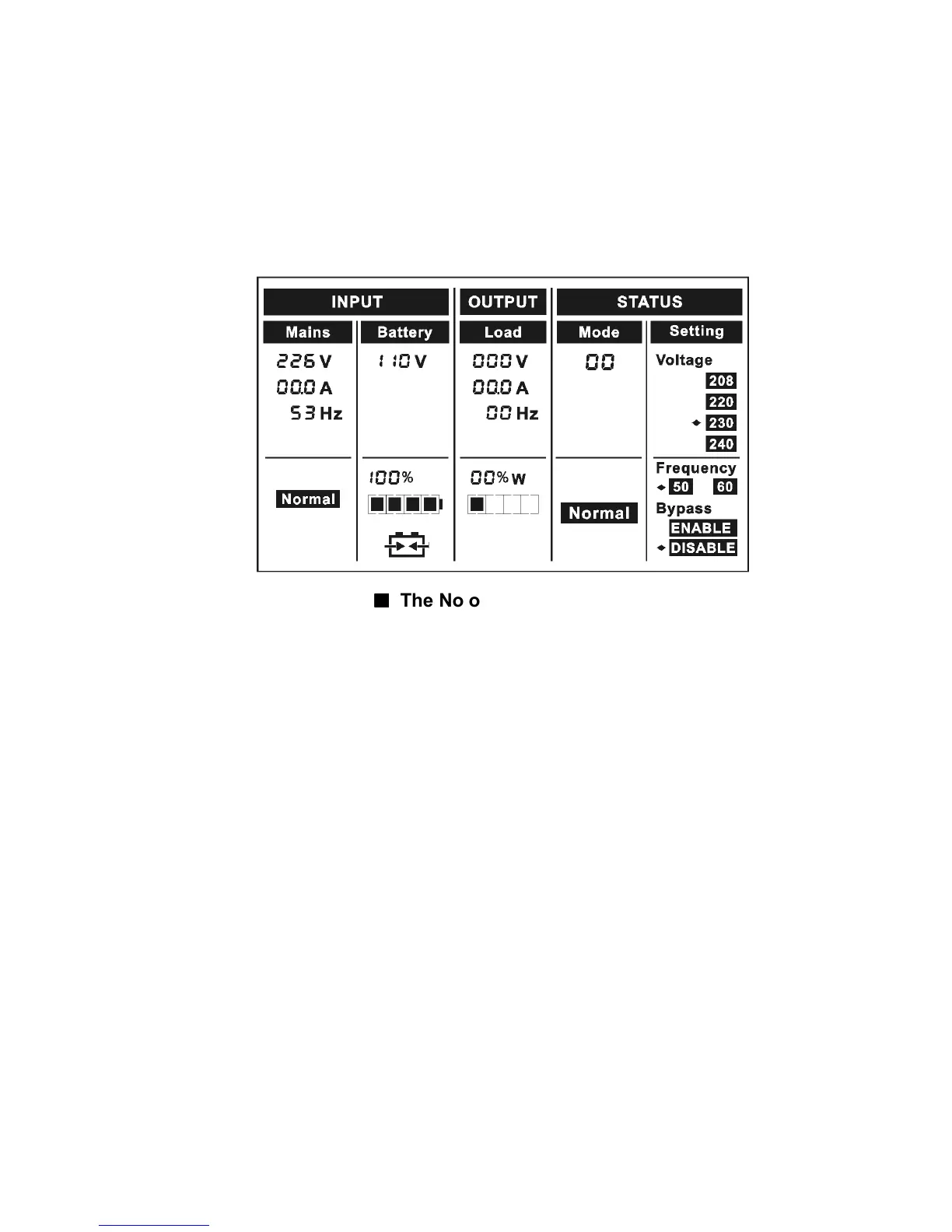

The LCD display in No output mode is shown in the following diagram.
The information about the utility power, the battery, the UPS output
and the load could be displayed. The “00” code indicates the UPS is
working in the No output mode.
6.5 Abnormal mode
In abnormal mode such as Bus fault etc., the corresponding fault code
would be shown to indicate the operating mode of the UPS. And some
warning words could also be shown, for example “short!” would be
shown when the load or the UPS output is short and the UPS is in
inverter fault mode.
■
■■
■ The No output mode
