Beta Draft Confidential
Installing and Wiring the Thermostat
Proliphix Internet Managed Thermostat (IMT) Installation Guide 17
Part No. 600-03100-000, Rev. 4

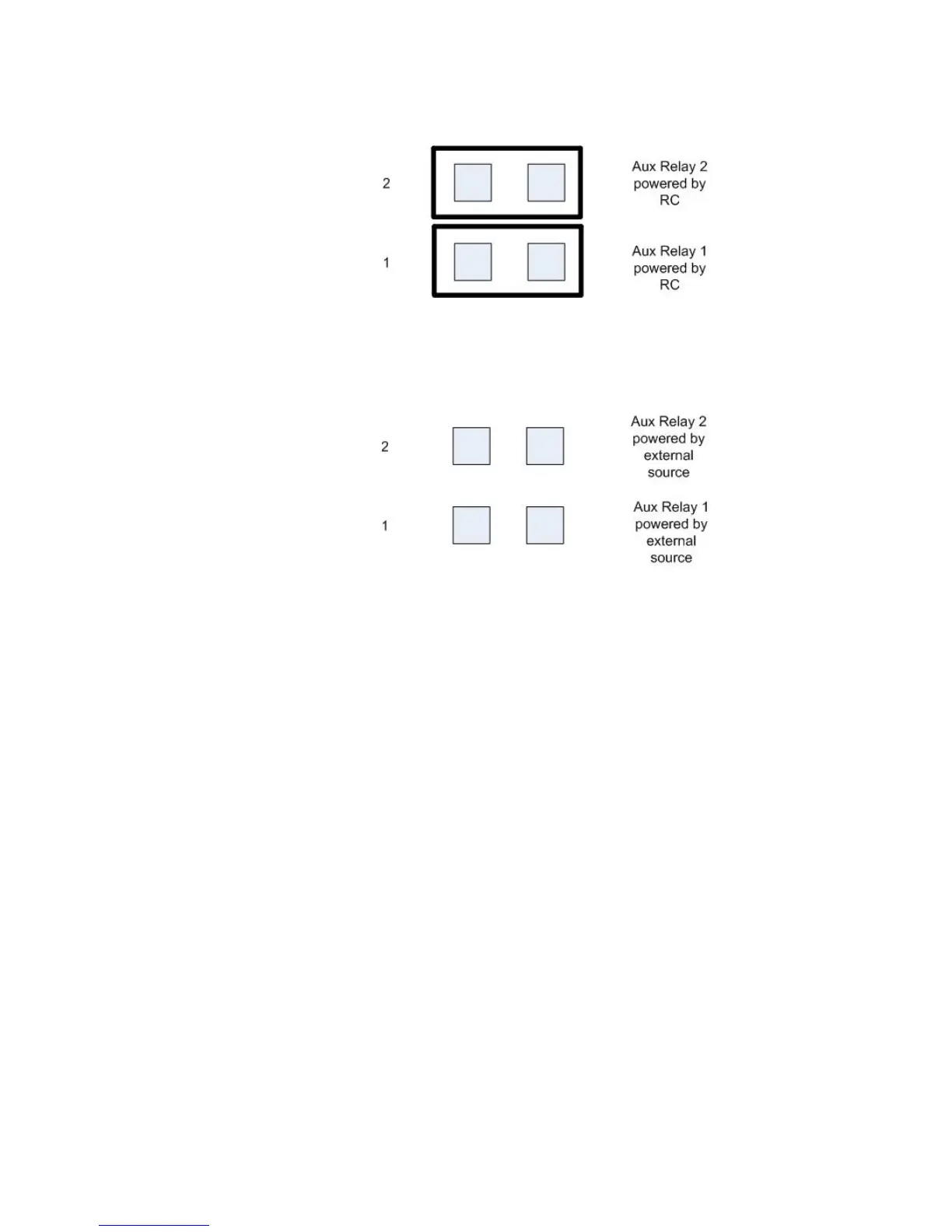

Figure 11 Auxiliary Relays with Jumpers
When the jumpers are removed (see Figure 12), the Auxiliary Relays are configured
to use an external power source.
Figure 12 Auxiliary Relays without Jumpers
