Table of Contents
CAUTIONS, WARNINGS AND SAFETY INSTRUCTIONS… 2-4
Setup and Operation… 5-7
Selecting a Charging Profile and Understanding Battery Types… 7-8
Installation... 8-13
DC Connections & Wiring Diagrams… 9-11
AC Connections... 12-13
Grounding Connection & Drip Shield Installation… 13
Troubleshooting... 14
Periodic Maintenance... 14-15
Frequently Asked Questions... 15
Accessories...
16
Warranty Information... 17
Pro
M
ariner
®
Thank you from all of us at Professional Mariner, LLC and congratulations on the recent purchase of your
ProTech-i Series On-Board Marine Battery Charger. The ProTech-i On-Board Marine Battery Charger is the
latest in Advanced Electronic Marine Battery Charging Technology and is ideal for: cuddy, cruiser, sail, house
boats, yachts commercial offshore & sport fishing boats.
The ProTech-i Series is designed to be installed in an area where the charger will NOT be subjected to water. Recommended
installation is in an engine room or dry compartments where 6 inches of clearance on all sides is available.
The ProTech-i Series battery charger incorporates industry leading technology, delivering fully automatic and
Sequential Multi-Stage Charging that provides electronically controlled charging, conditioning and
maintenance of all batteries and or banks connected.
High Line Features:
Automatic Wide Range / Global AC input 95 - 250VAC
Active Battery Balance Control (BBC) monitors charging while conditioning and extending
battery life ensuring that no battery is ever overcharged
(1230i Plus, 1240i Plus & 2420i Plus only)
User Programmable Absorption / Conditioning Mode: 1, 2, 3, or 4 hours.
User Programmable Battery Type / Charge Profile Selector- 3 Settings:
Out of Box Factory / User Setting 1 : Flooded (Lead-acid)
User Setting 2 : AGM
User Setting 3 : GEL
Standard Features:
Advanced Electronic Technology yielding a heavy duty stylish and compact On-Board Marine Charger.
Expanded LED Operation Status Center Includes High Visibility LED's for:
Fast Charge, Absorption, Float, and Discrete Battery Type LED indicators for: Flooded, AGM and GEL Batteries.
Fully Automatic & Sequential Multi-Stage Charging
(example below is for a 12 Volt ProTech -i model)
Factory set out of the box for Flooded (Lead-acid) battery (s).
Sequential Multi-Stage Battery Charging
Stage 1 Fast Charge = Maximum Amperage Output until Battery (s) reach 14.7 VDC
Stage 2
Absorption Charge / Conditioning Mode = Precision 14.7 VDC to Fully Charge & Desulfate Battery(s).
Stage 3 Float / Maintenance/ Ready Mode= Precision Finishing & maintaince Voltage of 13.5VDC
Stage 4 Recycle / Dockside Power = If while docked and connected to shore power your Batteries have
a continuous excessive DC load for lighting, entertainment, or appliances, etc. The ProTech-i Series will
return to Mode 1 providing your batteries up to the full amperage rating of the charger to meet the demand
of the load and begin charging your battery (s).

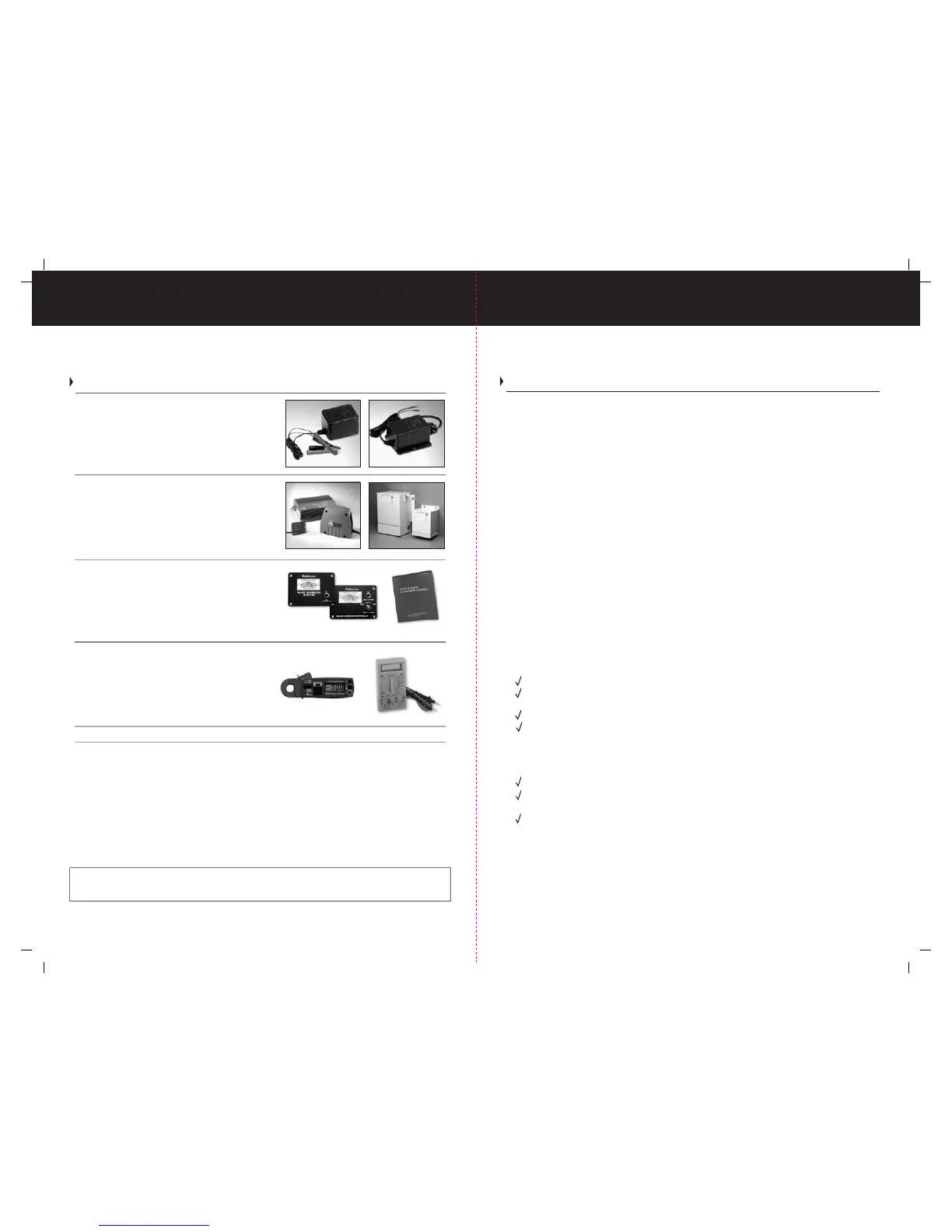

Accessories
16 1
Model Part No. Cable Length Volts Banks
Handheld DC System Tester 87710 n/a n/a n/a
Digital Multi-Meter 60016 3' 12 3
ProSport 1.5 Portable 10115 4' 12 1
ProSport 1.5 On-Board 10116 4' 12 1
Clamp-It Multimeter
87015 n/a n/a n/a
ProSafe 1 Single Line Galvanic Isolation System 22086 n/a 120 n/a
ProSafe Isolation Transformers 3.6-12KVA, visit www.promariner.com for details 120/240 n/a
Adjustable Corrosion Monitoring System 22020 n/a n/a n/a
Corrosion Monitoring System 22030 n/a n/a n/a
Corrosion Workbook 20001 n/a n/a n/a
Accessories
To Place an Order Please Contact Your Local Dealer, retailer or call ProMariner at:
Tel: 603-433-4440 / Fax: 603-433-4442 / www.promariner.com
87015
ProSport 1.5 Battery Maintainers
Fully automatic, with built-in safety.
LED status indicator, 1-year warranty
Corrosion Control: Galvanic Isolation Products & Systems
ProMariner makes a variety of corrosion
control products providing corrosion control
protection, isolation & green wire/ground
wire monitoring.
Corrosion Control Workbook
Educate yourself on the process of performing
a galvanic survey.
(Recommended with
Corrosion Test Meter Part # 20006)
Test Meters
ProMariner makes a variety of hand held
digital test meters for measuring voltage
and amperage on-board.
60016
22030 & 22020 20001
22086
10115 10116
visit www.promariner for details
