Promise Technology Smartstor NS4600 Quick Start Guide

Task 9: Setting up a USB Printer
33
Task 9: Setting up a USB Printer
You can use the SmartStor as a print server. You must connect the USB printer,
enable SmartStor’s print server, and set up printing on your PC.
• Connecting a USB Printer to SmartStor (page 33)
• Setting up the Print Server on SmartStor (page 33)
• Setting up Windows Printing (page 34)
• Setting up Linux Printing (page 35)
• Setting up Mac Printing (page 36)
Connecting a USB Printer to SmartStor
To connect a USB printer to the SmartStor:
1. Set up your printer and install the printer drivers onto your PC as described
in the printer’s Setup Guide or User Manual.
2. Attach the USB cable from your printer to one of the USB connections on the
back of the SmartStor.
Setting up the Print Server on SmartStor
To set up the SmartStor’s print server:

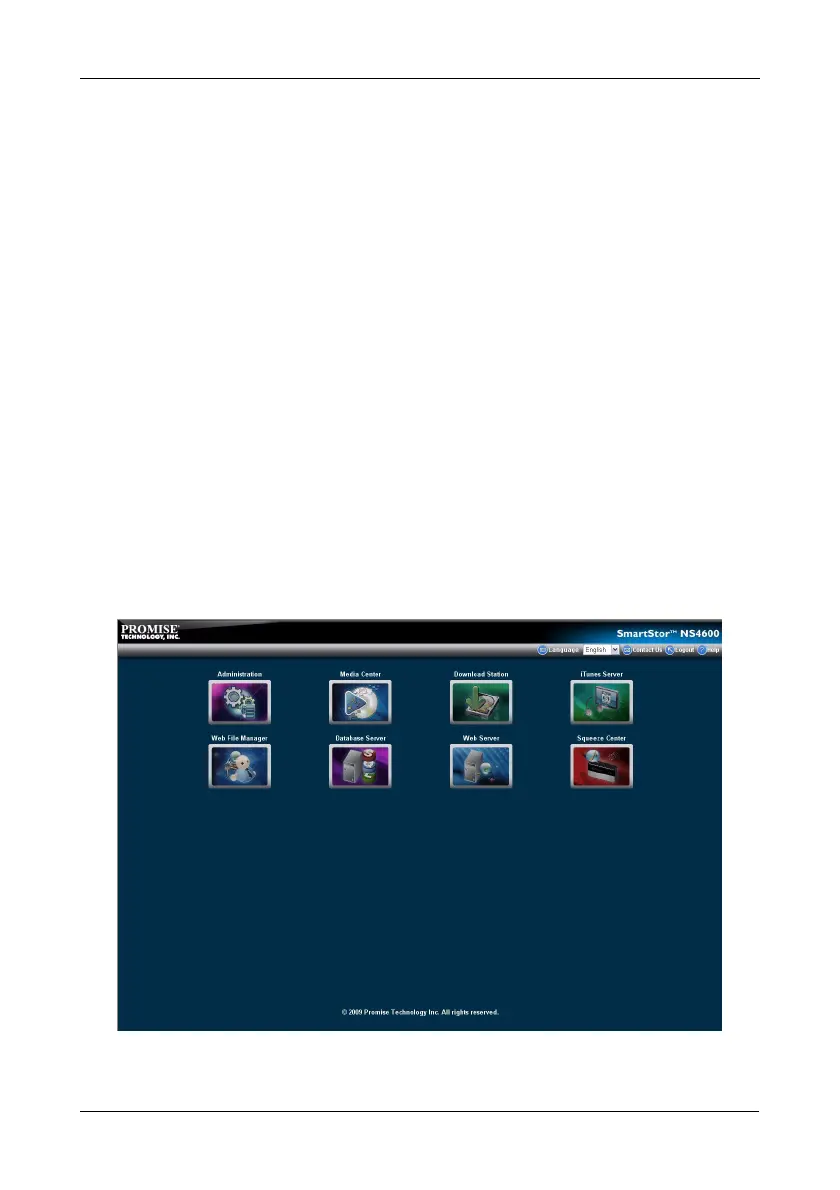

1. Start WebPASM.
See “From browser directly” on page 19 or “Connect WebPASM from
SmartNAVI” on page 19.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
