VessRAID 1000i Series Product Manual
12
2. Insert the two screws that you removed in step 1 through the holes in the left
bracket and into the threaded holes in the LCD panel, as shown in Figure 5.
Tighten the screws to secure the LCD panel to the bracket.

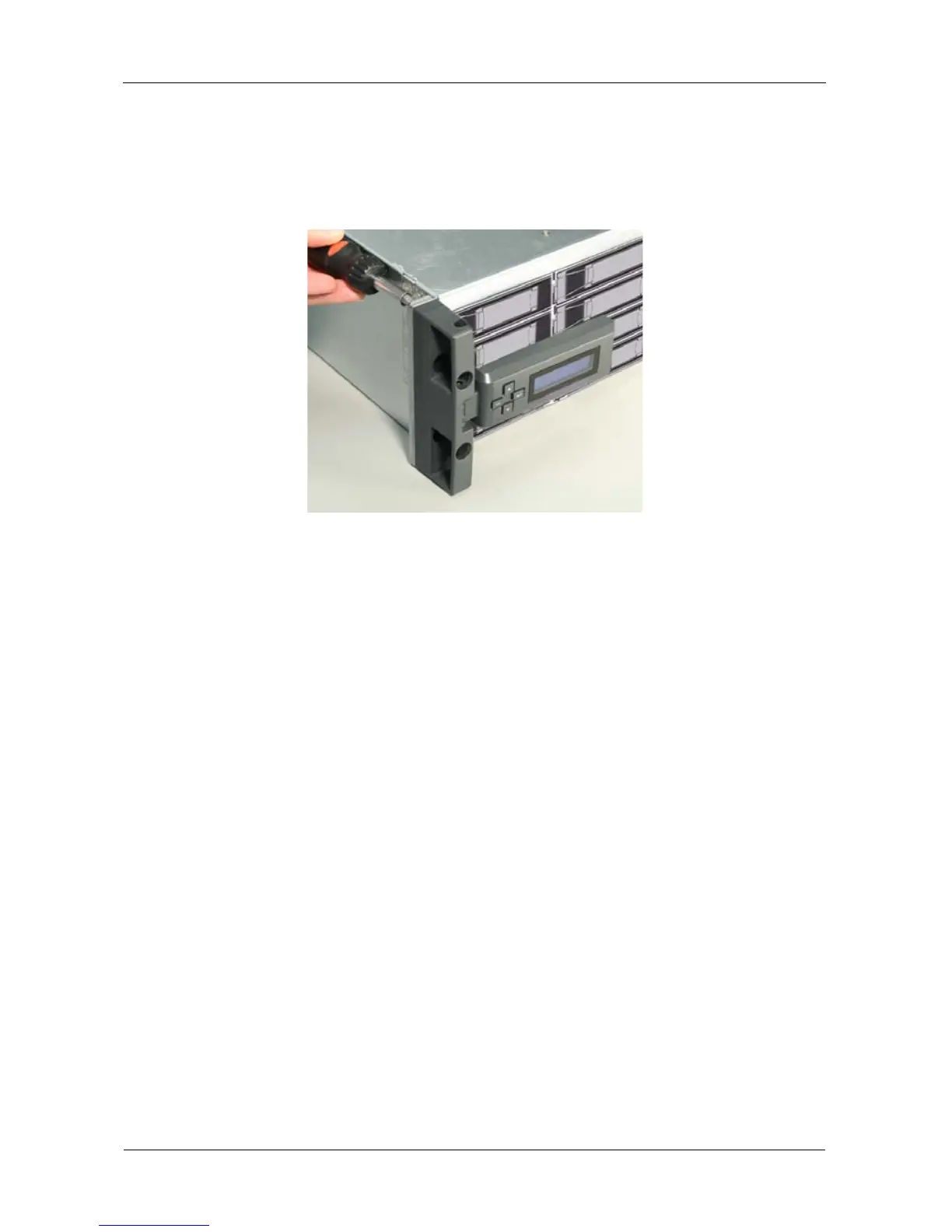

Figure 5. Attach the LCD panel to the VessRAID enclosure
The LCD screen activates when the VessRAID boots. See “Connecting the
Power” on page 24.
