Chapter 2: VessRAID Installation
19
Attach the other end of the Ethernet cable to the management port on the
VessRAID subsystem.

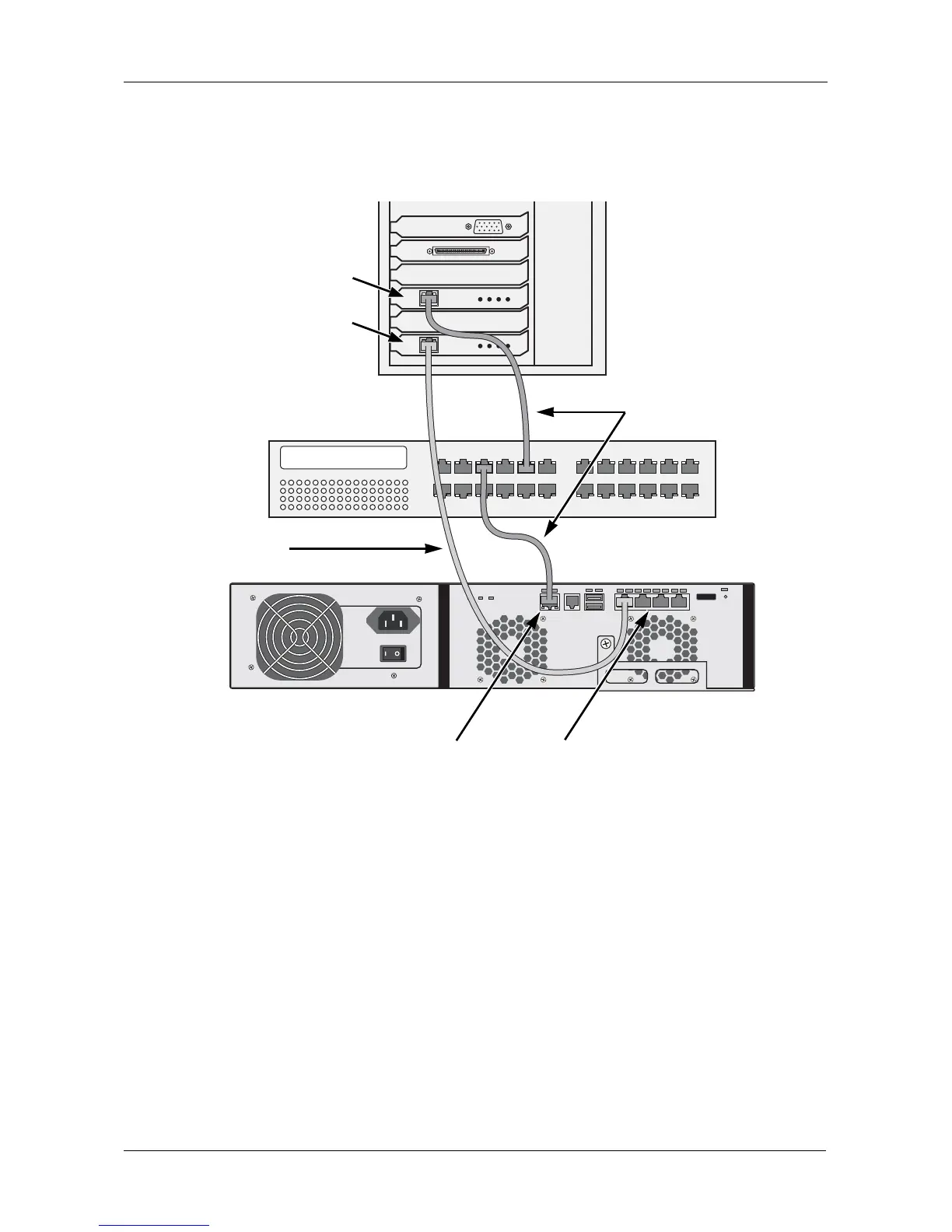

Figure 12.DAS data and management connections
Std. NIC
GbE NIC
Host PC
or Server
Std.
Network
Switch
VessRAID
Management
Cables
Data Cable
iSCSI Data Ports
Management Port
