PROSTAT+ OEM Series - Page 91

83 Manual & Installer Guide
C R G Y1 Y2 W1/O/B W2 W3/AUX
C R G Y1 Y2 W1/O/B W2 W3/AUX
Humidification
System
DEHUM/
HUM
Dehumidification Terminal
on Equipment
SENSOR
SENSOR
Use 16-24 gauge
thermostat wire.
Use 16-24 gauge
thermostat wire.
AUX Output Usage
must be set for Hum
AUX Output Usage
must be set for Dehum
Humidification
Dehumidification

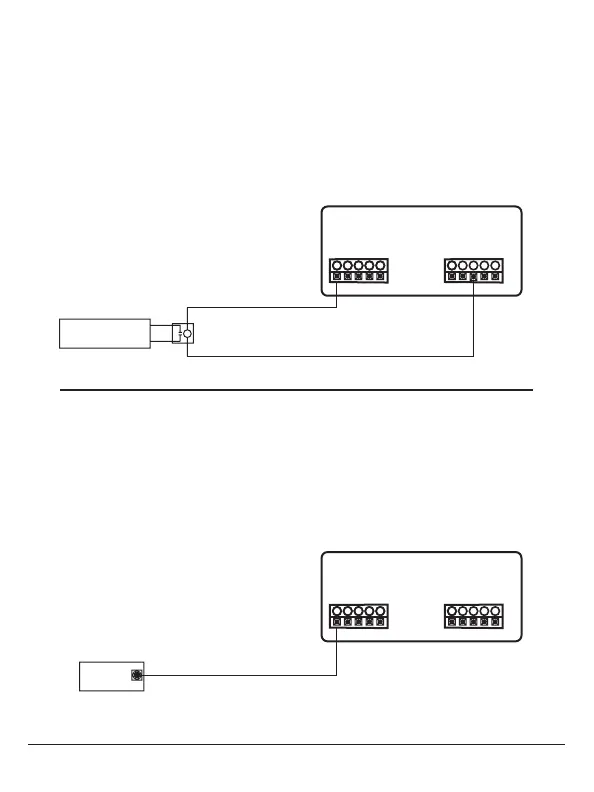

Installation Instructions – Sample Wiring Diagrams
This section only applies to the PSP4273RT thermostat
