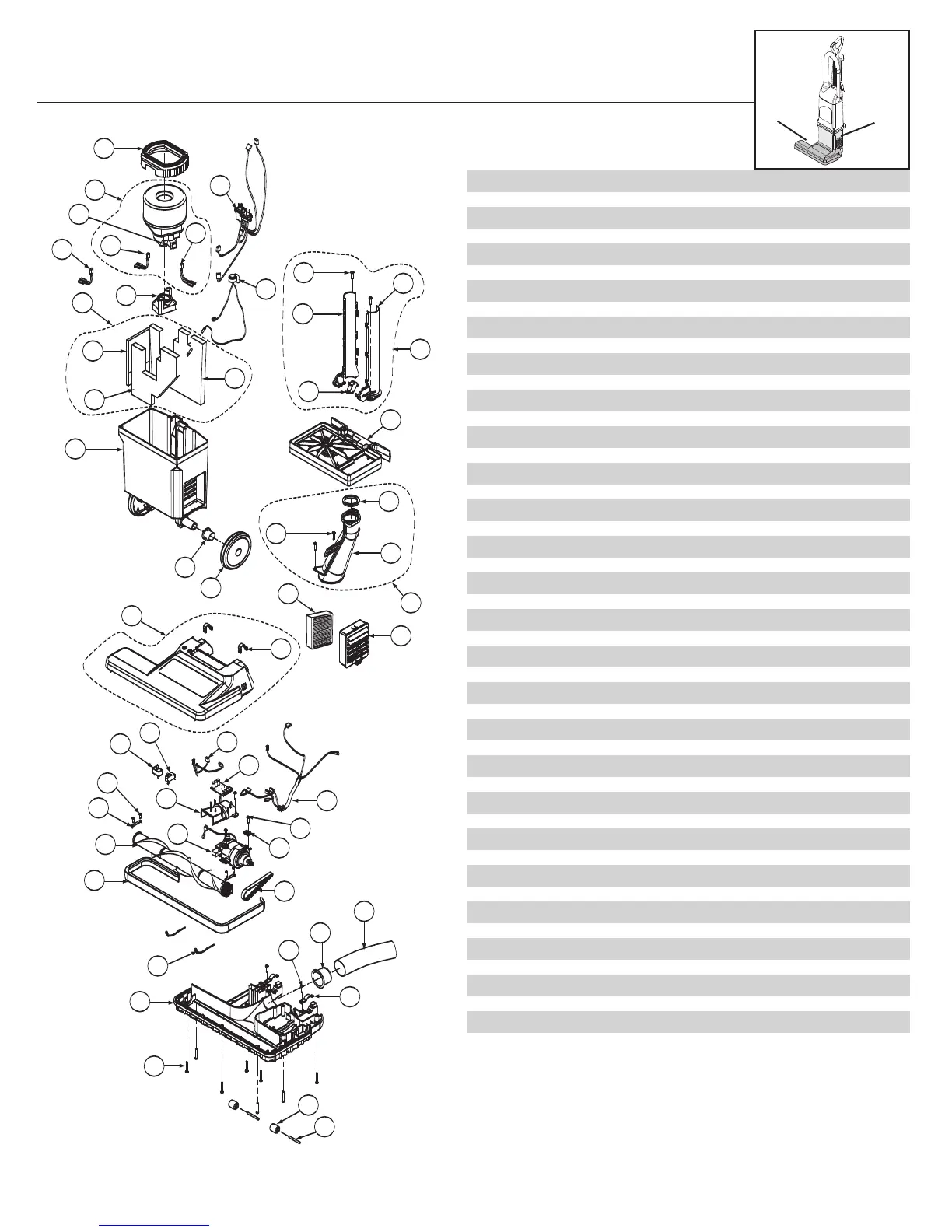

ProTeam ProForce 1500XP - Parts Identification - Main Unit; Power Nozzle Components; Motor Housing Components

No. Product Name
1 104209 Screw, Phillips, 4.2mm x 12mm F/Wand Guide (set of 2)
2 104261 Guide, Wand, Upper Left
3 104260 Guide, Wand, Upper Right
4 104263 Switch, Wand Lockout
5 104245 Bulkhead, Dark Grey
6 104253 Seal, Lower Air Duct , Nitrile
7 104267 Screw, Phillips, 4.2mm x 19mm F/Lower Air Duct (set of 2)
8 104250 Air Duct Assembly
9 104536 Motor Housing, Charcoal
10 104504 Bearing, Pivot
11 104306 Wheel, Rear (set of 2)
12 105136 Filter, Exhaust, HEPA media
13 104246 Cover, Filter Cartridge, Charcoal
14 103532 Foam, Sound, Motor Housing, Front Panel
15
103533
Foam, Sound, Motor Housing, Left Panel
16 103531 Foam, Sound, Motor Housing, Rear Panel
17 104247 Motor Mount, Lower Nitrile
18 104249 Motor Mount, Upper Nitrile
19 104957 Motor Assembly w/Jumpers (includes: A, B)
20 105488 Motor Housing Sound Filter (includes: #14, 15, 16)
21 105490 Wand Kit (includes: #1, 2, 3, 4)
22 105489 Air Duct Kit (includes: #6, 7, 8)
23 104494 Power Nozzle Cover w/Detent Springs & Decals
24 104279 Switch, Safety, Power Nozzle Lockout
25 104212 Circuit Breaker
26 104496 Screw, Phillips, 2.9mm x 35mm, F/Brush Retainer (set of 4)
27 104499 Retainer, Brush Roll
28 104216 Brush Roll, Power Nozzle, 14"
29 104218 Bumper, Power Nozzle, Vinyl
30 104500 Brace, Formed Wire, F/Power Nozzle Base
31 104221 Baseplate, Power Nozzle
32 104497 Screw, Phillips, 4.2mm x 35mm F/Base Cover (set of 8)
33 104501 Roller, Front
34
104502
Shaft, Front Roller Axle
35 104503 Clamp, Rear Wheel
36
104495
Screw
, Phillips, 4.2mm x 19mm F/Powerhead (set of 5)
37 104227 Sleeve, Hose, Air Duct
38 104230 Hose, Power Nozzle to Air Duct, Lower
39 104217 Belt, Drive, F/Brush Roll
40 104506 Motor, Power Nozzle with Crimps
41
104498
Grommet, V
ibration, Power Nozzle Motor
, Nitrile
42
104224
Cover
, Air Duct, Power Nozzle
43 104226 Board, Vacuum Operation Indicator
44 104507 Spring, Detent, Upright Lock
45
105371
Screw
, Phillips, 4.2mm x 19mm, F/Power Nozzle Motor (set of 2)
46 105281 Carbon Brush Set for ProForce Motor
47 105760 Thermal Protector
105754 W
ire Harness Kit includes:
A. Harness, Jumper, Red
B.
Harness, Jumper
, White
C.
Sensor, Bag Full Indicator
D. Harness, Main Power Supply
E. Harness, Wire, Power Nozzle
F
.
Harness, Power Nozzle Switch
ProForce1500xp
1
2
3
4
5
6
7
8
9
10
11
13
14
1
5
1
6
1
8
A
B
C
D
1
9
20
2
1
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
E
45
46
4
7
F
1
7
12
13
motor
housing
power
nozzle
parts list
