ProTeam ProForce 1500XP - Parts Identification - Filter and Housing; Filter Cover Components; Filter Housing Components

12
No. Product Name
1 104234 Cover, Bag Housing, Grey F/XP
2 104232 Latch, Release, Bag Cover
3 104233 Spring, Release Button, F/Bag Cover Latch
4 104235 Seal, Transition Duct/Bag Cover, Upper
5 104236 Duct, Transition, Bag Cover, F/XP
6 104238 Seal, Transition Duct/Bag Cover Nozzle Plate, Lower
7 104239 Plate, Bag Cover Nozzle, F/XP
8 104242 Spring, Bag Cover Latch
9 104243 Plate, Bag Cover Latch
10 104505 Screw, Phillips, 4.2mm x 9.5mm (set of 2)
11 104241 Gasket, Bag Cover
12 104493 Screw, Phillips, 4.2mm x 35mm (set of 4)
13 105486 Filter Cover Kit w/Riveted Hinge and 6 Rivets (includes: #1–12)
14 104490 Bag Housing Assembly, Grey w/Riveted Hinge & Decal
Includes Bag Cover Nozzle Plate
15 104491 Rivet F/Bag Housing Assembly
16 104255 Handle w/Over Mold and Decal
17 104284 Cord, Power, w/Strain Relief, 50' Yellow
18 103483 Intercept Micro Filter
19 105088 Handle Bezel w/Screws
20 104738 Seal, Gasket, Bag Housing
21 104283 Switch, Filter, Lock-Out
22 104281 Filter, Double Layer Motor Intake
23 104282 Cover, Switch, Filter Lock-out
24 104268 Bracket, Cord Wrap
25 104269 Spring, Compression, Cord Wrap Bracket
26 104270 Washer, Compression Spring, Cord Wrap Bracket
27 105147 Switch, Rocker, On/Off
28 104264 Bushing, Handle Tube
29 104259 Plate, Handle Nut
30
104265
Handle, Carr
y w/T
ool Caddy, F/XP
31 104294 Wand, F/XP
32
105091
Clasp, Strain Relief, Y
ellow
33
104271
Screw
, Cord W
rap, 4mm x 38mm, Phillips Round Head
34
104509
Screw
, Phillips, M4 x 10mm x .07 Pitch,
F/Handle Assembly
35 105075 Screw, Phillips, 2.9mm x 13mm, F/Switch Cover
36
104266
Screw
, Handle Assembly
37 104493 Screw, Phillips, 4.2mm x 35mm (set of 4)
38 104958 Handle, Tube w/Wire Harness, Rivet Nut and Plug Rivet
39
104959
Handle, T
ube Assembly Complete, F/XP
(includes: #16,19,24,25,26,27,28,33,34,38)
40 104961 Hose, Assembly w/Cuffs, F/XP (includes: #42)
41
105502
Handle Kit (includes: #16,19,24,25,26,27,33,34)
42
105573
Quick Release Hose Cuff

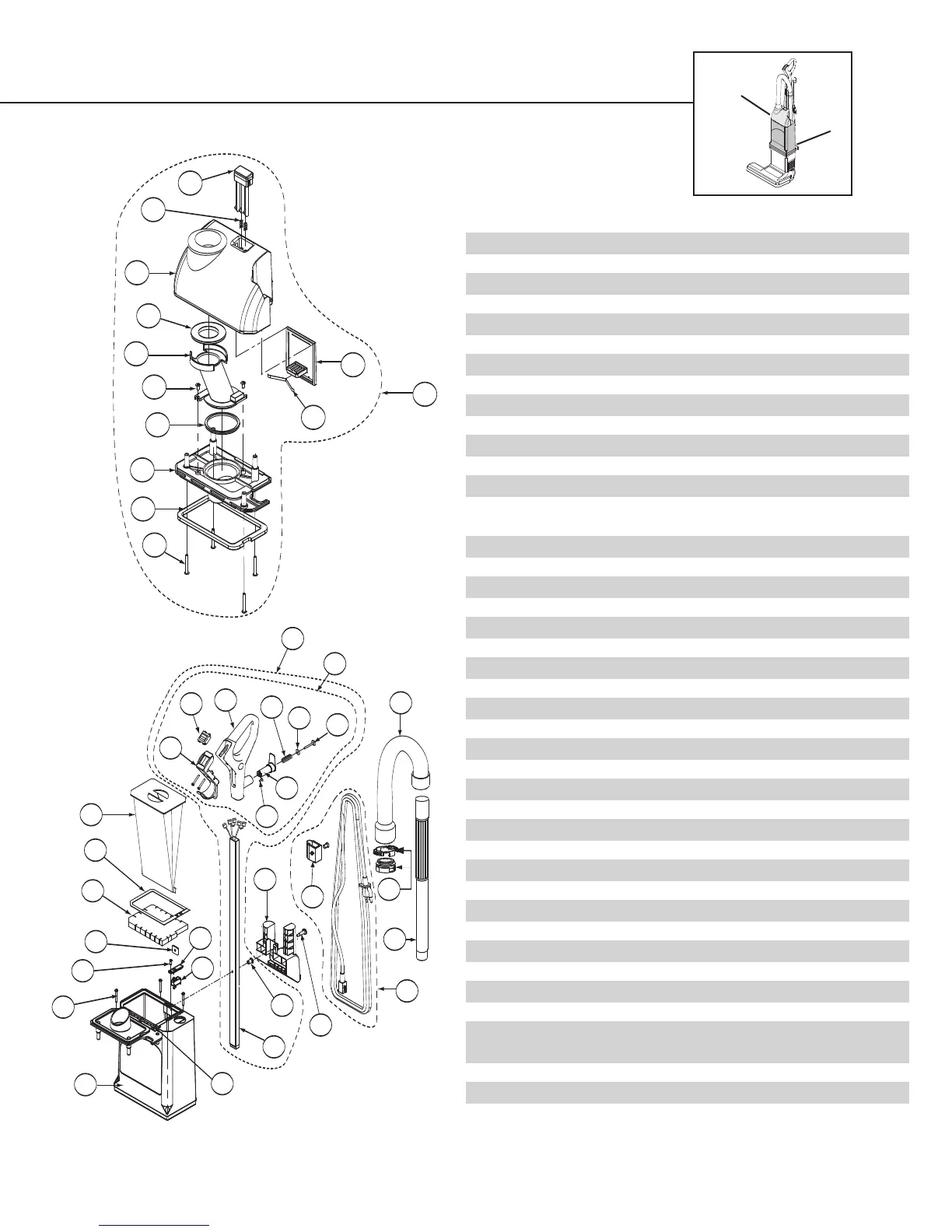

ProForce 1500xp
parts list
filter
housing
filter cover
filter cover
1
2
3
4
5
6
7
8
9
10
11
12
13
16
18
20
22
24
25
26
27
28
30
31
32
33
34
36
38
39
40
41
17
42
19
14
15
21
23
29
35
37
