Proteco ELITE NEW 3 User Manual

5 12_2018
h min= 15 cm
h max= 60 cm
Elite New 3 A=150 B=150
Elite New 4 A=200 B=200
Elite New 5 A=250 B=250
Elite New 6 A=300 B=300
150 mm
90°
Elite New 3 = max 125 mm
= max 175 mm
= max 225 mm
= max 275 mm
D
A
C
B
minimo
Elite New 4
Elite New 5
Elite New 6
3.4 INSTALLING THE OPERATOR
The kit is supplied with a right and a left hand motor and are specific. Ensure you are mounting the correct
handed motor to the leaf. See picture C. Make sure there is a mechanical stop (B) for opening and closing.
B = mechanical ground stops
3.4.1. QUOTES FROM GROUND
The operator has to be fitted keeping a height from ground between 40 and 50 cm. See picture D.
If the gate is particularly light, fit the operator as closer as possible to gate centerline.
3.4.2. PILLAR BRACKETS – How to determine fixing dimensions
The ideal approach is to fix the brackets complying with the measures A and B as indicated in the below table
for an opening angle of 90° (picture E).

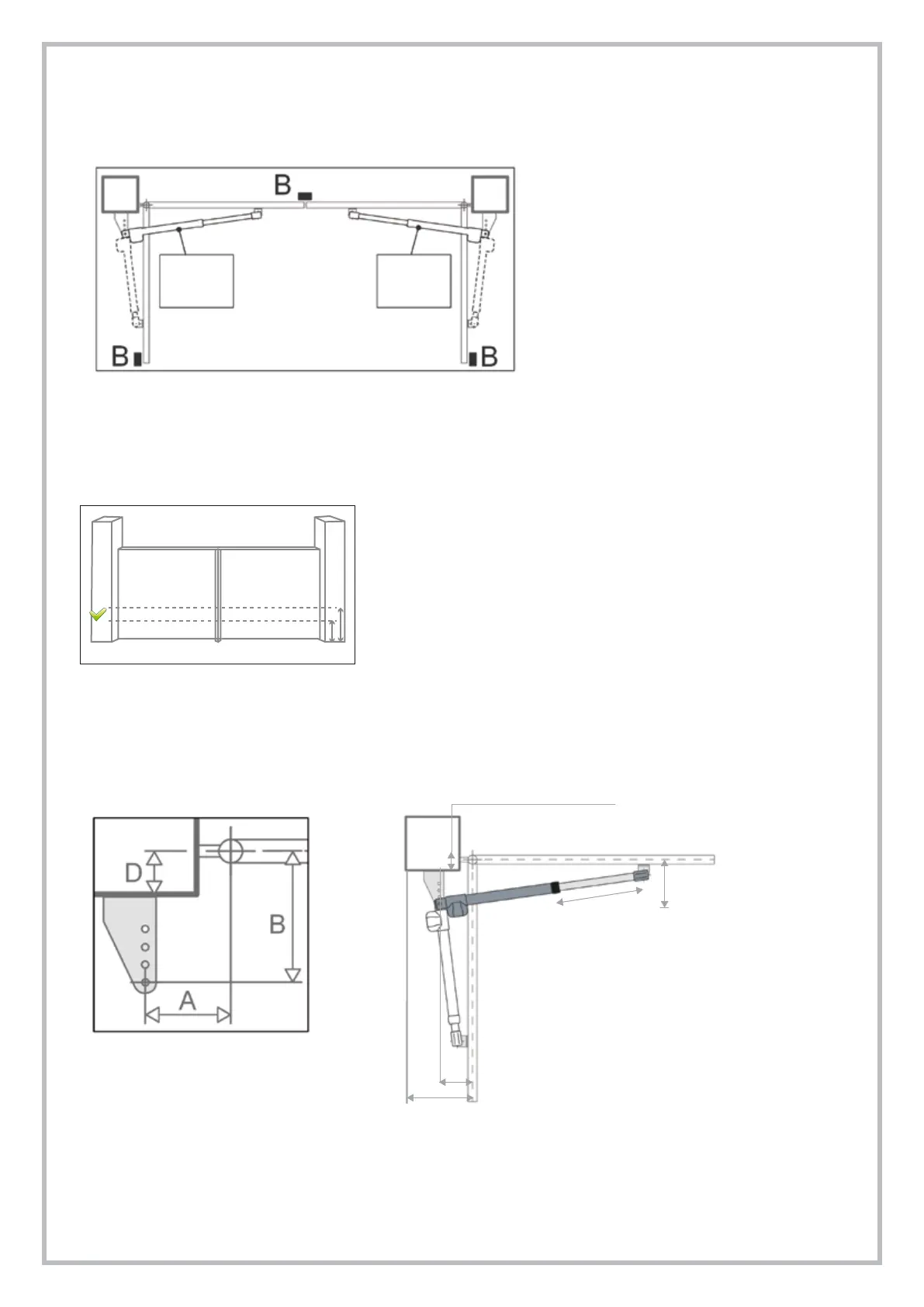

Pic. C
Pic. D
Pic. E
right
Motor
left
Motor
