Proteus EEC - 3000 - Page 5

EEC-3000 PROGRAMMABLE ELLIPTICAL ASSEMBLY INSTRUCTION

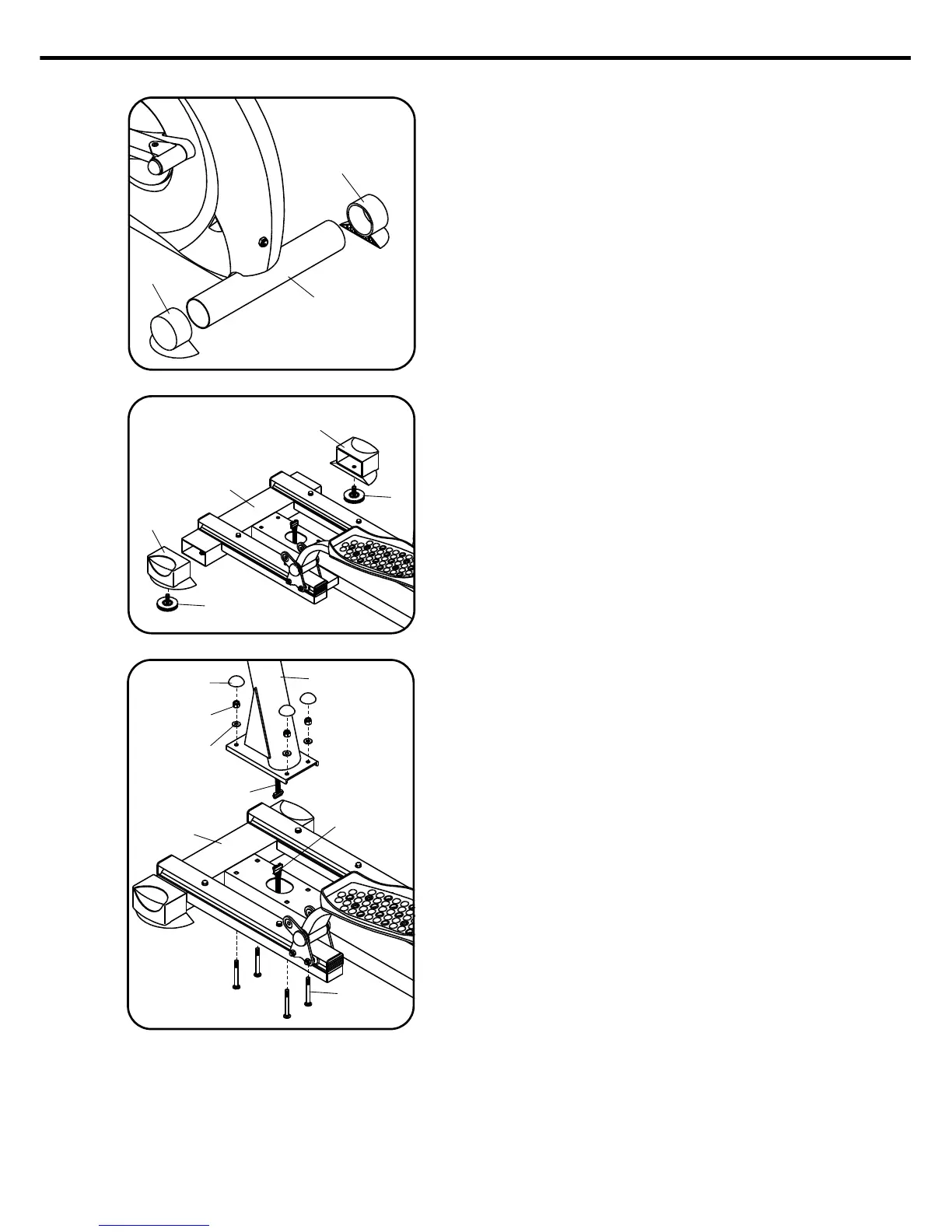

STEP 2. CONNECT EXTENSION CABLE
WIRE ( 8 ) WITH LOWER CABLE
WIRE ( 9 ) THEN FIT HANDLEBAR
POST ( 2 ) TO THE MAIN FRAME
( 1 ) BY USING BOLT ( 33 ),
WASHER ( 44 ) , NUT ( 46 ),THEN
FIT HALF MOON CAP( 47 ).
STEP 1. FIT FEET CAPS ( 23 ) TO THE
REAR STABILIZER AND CAPS ( 21 )
TO THE FRONT STABILIZER. THE
CAPS ( 21 ) SHOULD BE
TIGHTENED WITH FOOT ADJUST
BASE ( 22 ).
21
21
1
22
22
47
46
44
22
2
33
1
9
23
1
23
- 4 -
