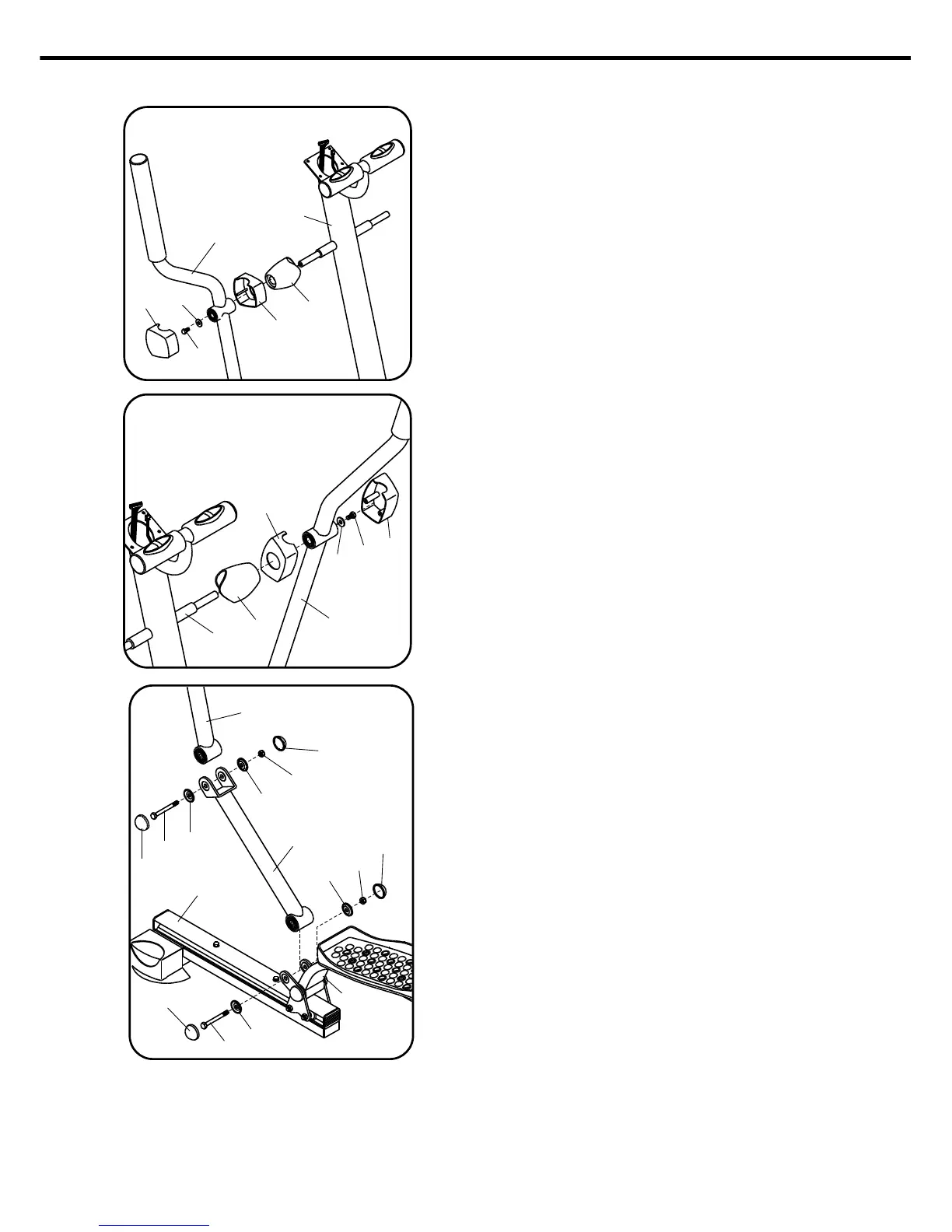

STEP 4. FIT HANDRAIL TO CONNECTING
ARM ( 4 ) WITH BOLT ( 34 ),
WASHER ( 42 ) & NUT ( 46 ). BE
SURE TO TIGHTEN BOLT FIRMLY
THEN FIT HALF MOON CAPS ( 20 )
ON BOTH ENDS.
REPEAT SAME PROCEDURE ON
ASSEMBLING THE CONNECTING
ARM ( 4 ) & PEDAL ARM ( 5 ).
REPEAT SAME PROCEDURE ON
THE OTHER SIDE.
STEP 3. INSERT AXLE SPACER ( 13 ),
PIVOT CAP A ( 14 ) THEN FIT
HANDRAIL ( 3 ) TO THE AXLE BY
USING WASHER ( 43 ) & BOLT ( 36 ).
( TIGHTEN THE BOLT FIRMLY ). FIT
ANOTHER PIVOT CAP B ( 15 ) IN
RIGHT POSITION WITH SLIGHT
PUSH ( NO SCREW ).
REPEAT SAME PROCEDURE ON
THE OTHER SIDE HANDRAIL.
2
3
15
43
14
36
13
2
13
3
43
36
15
14
3
20
34
42
42
46
20
12
4
42
46
20
20
58
42
5
- 5 -
