STEP 7

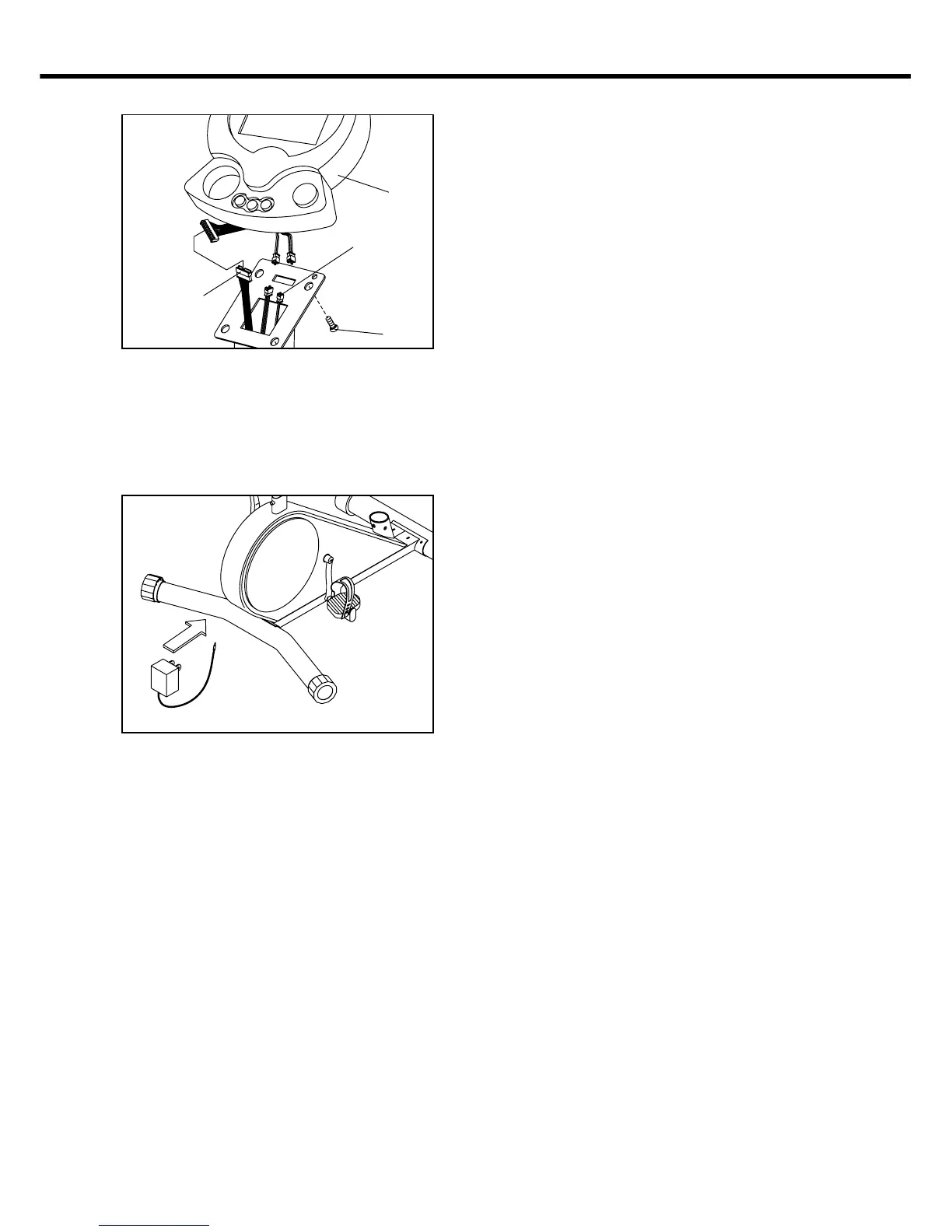

Step 6 : Assemble cycle monitor
a. Connect pulse wires ( 6f ) To cycle
monitor ( 07 ).
b. Connect extension moniter cable ( 17 )
to cycle monitor ( 07 ).
c. Use screw ( 7a ) to fasten cycle
monitor ( 07 ) onto handlebar post
( 05 ). Then fully tighten them with
screwdriver.
Step 7 : Install power source.
Connect DC transformer to Socket.
The monitor can be power on with
battery size um - 2 x 4pcs or be DC
transformer.
DC transformer spec. : Output DC
6V/500mA.
Tension adjustment operating by the motor.
Please refers to the operatinginstruction of
monitor.
- 8 -
7a
STEP 6
7
17
6f
Now your PEC-4850 has been fully assambled.
Thank you for choosing proteus product !
