Proteus PEC-4850 - Assembly Steps; Step 1: Assemble Stabilizers; Step 2: Assemble Pedals; Step 3: Assemble Seat Post

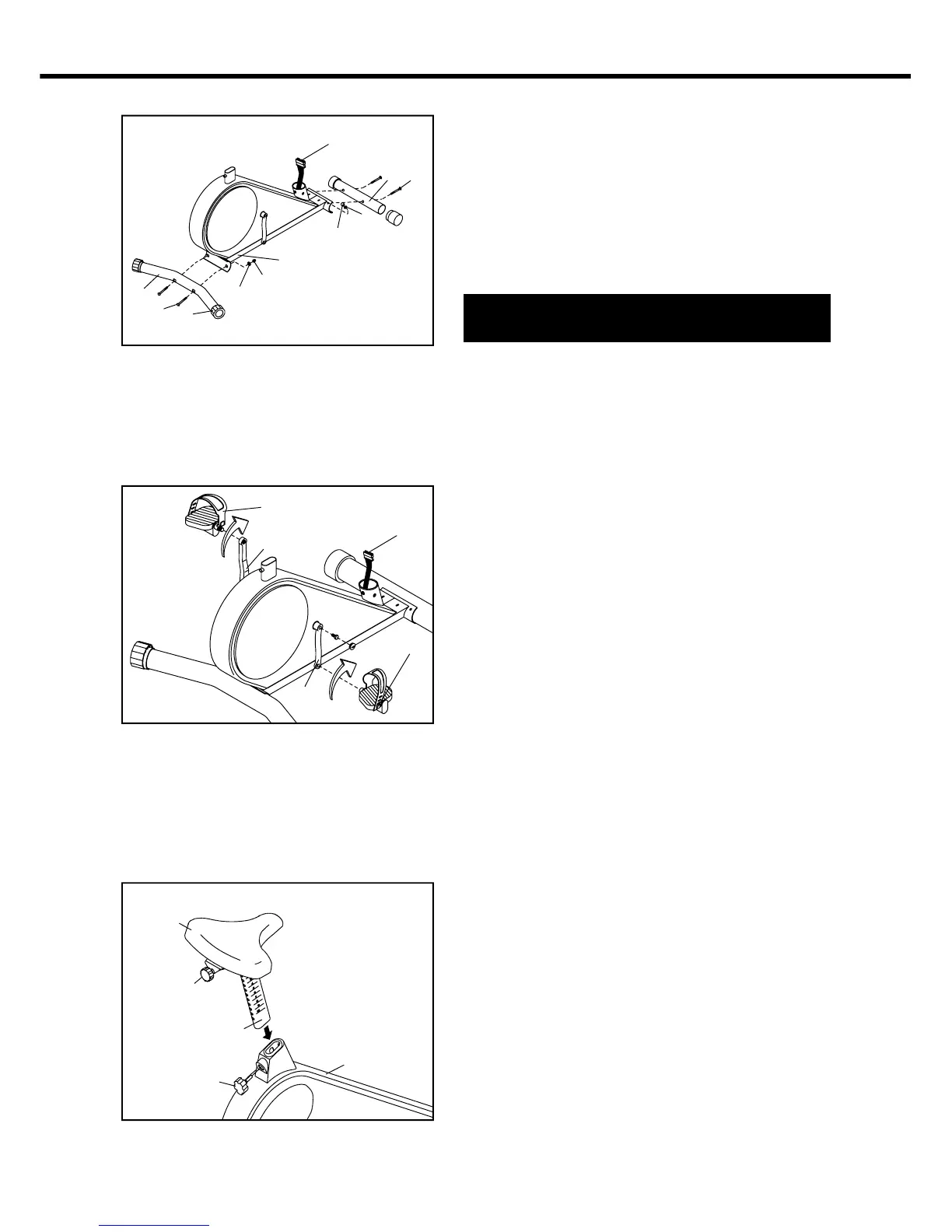

Step 1 : Assemble stabilizers
Attach both front and rear Stabilizers ( 02, 03 ) to
main frame ( 01 ), with carriage bolts ( 11 ),
washers ( 12 ) and dome nut ( 13 ). Then fully
tighten them with spanner.
Step 2 : Assemble pedals
a. Attach right pedal ( 9a ) to right crank
( 10a ), then fully tighten clockwise
with spanner.
b. Attach left pedal ( 9b ) to left crank
( 10b ), then fully tighten
counter-clockwise with spanner.
Step 3 : Assemble seat post
a. Attach seat post ( 04 ) to main frame
( 01 ).
b. Adjust seat post ( 04 ) to desired
height and fasten with knob ( 15 ).
c. To release the knob to adjust the
saddle ( 27 ) back and forth at you
desired position. Then fasten the knob
- 6 -
ASSEMBLY
IMPORTANT : READ STEP 2 BEFORE
ASSEMBLE PEDALS.
