Antenna Ports
If you hold the AP device in its upright position, such that the LEDs on the top panel of the device are towards your right hand
side and the ‘Proxim’ logo towards your left, then:
– Radio 1 and its corresponding antenna ports (R1A1, R1A2 and R1A3), are present on the right hand side of the device.
– Radio 2 and its corresponding antenna ports (R2A1, R2A2 and R2A3), are present on the left hand side of the device.
2.2.1.3 Power Socket
This socket connects to the 5 VDC power adapter.
2.2.1.4 Reset
Reset button enables a user to powercycle the device.
2.2.1.5 Reload
Reload feature helps to restore the device to factory default configuration, when:
– The device cannot be accessed through web interface or command line interface.
– The device does not initialize.
– The password is lost.
For more details, see Recovery Procedures and Forced Reload procedures, detailed in the ORiNOCO
®
802.11n Access Points -
Software Management Guide.
2.2.1.6 Ethernet Port
The Ethernet Port of the device allows the user to connect to the LAN by using CAT5e / CAT6 ethernet cable.
2.2.1.7 Serial Port
The device has RS-232 connector by using which serial communication can be established, for debugging and management.

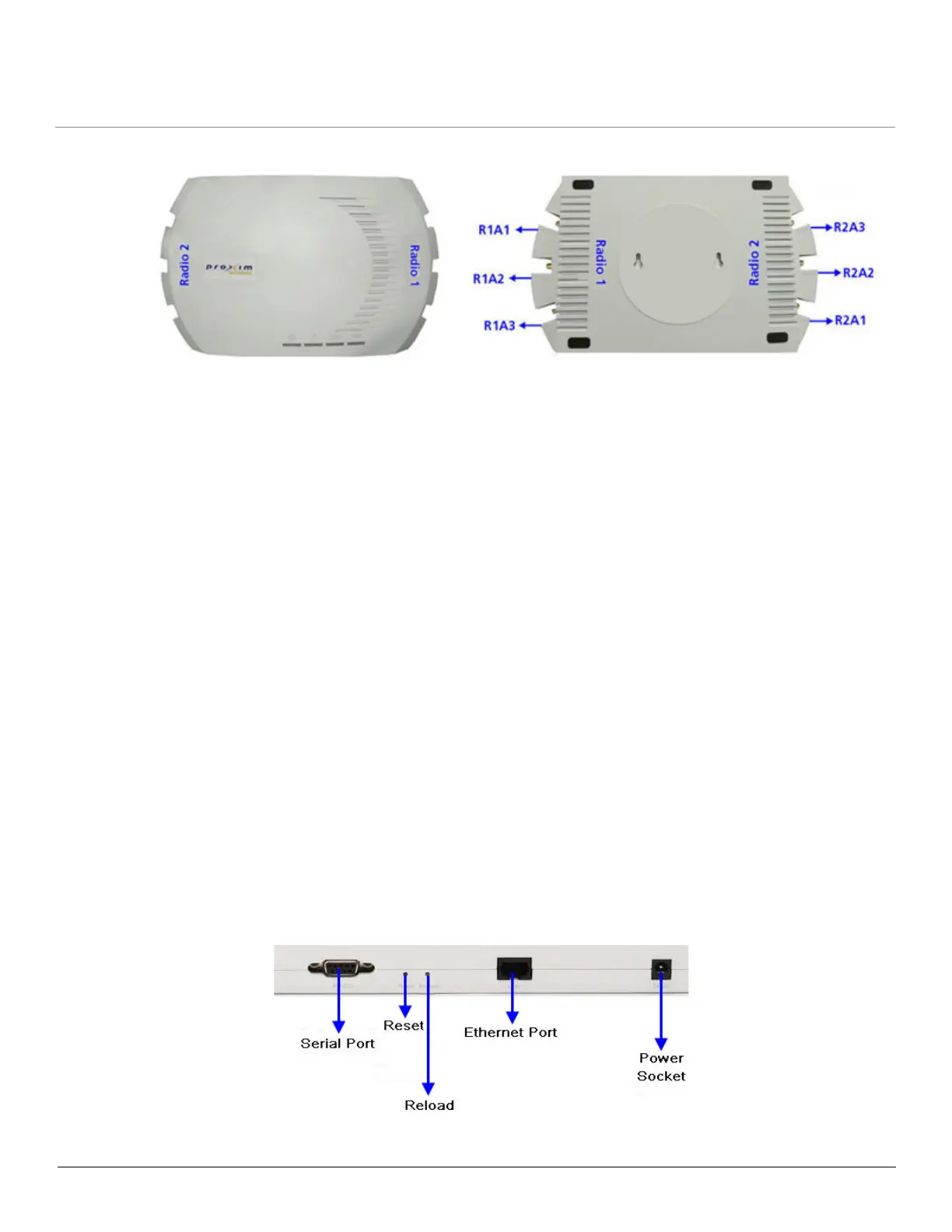

Figure 2-2 Rear View of the Device
Top View of the Device
Bottom View of the Device
To Next Page
