Hardware Overview and Installation
ORiNOCO
®
802.11n & 802.11ac Access Points - Hardware Installation Guide 29
• Unplug the RJ45 connector from the Data & Power Out port on the DC injector, if using the Gigabit Ethernet PoE.
2.4.5.4 Step 4: View LEDs
When the device is powered on, it performs startup diagnostics. When startup is complete, the LEDs show the operational

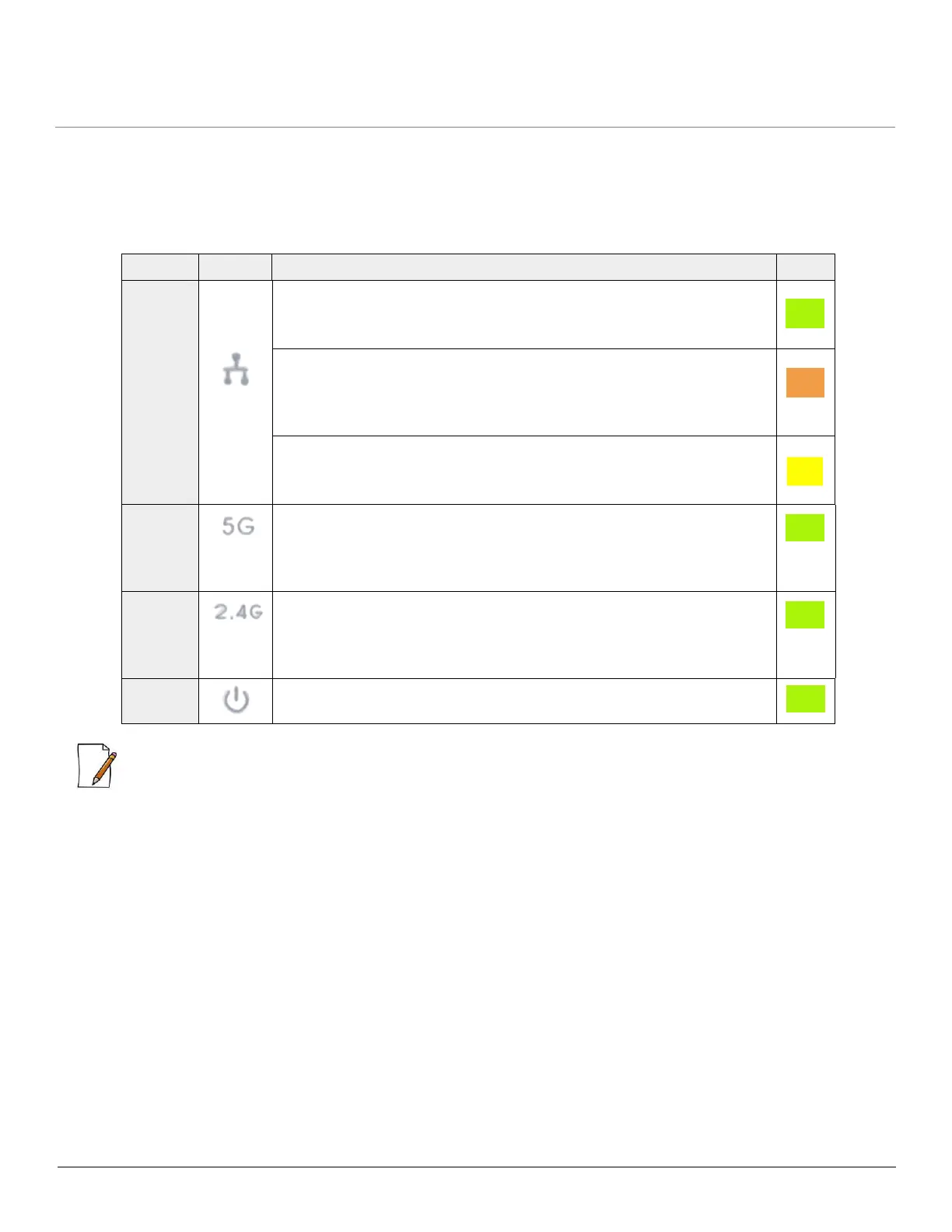

state of the device. Tabulated below is the behavior of the four LEDs on the device.
: When the Reload button is pressed, the Power LED blinks in green.
LED Symbol Behavior Color
• Glows green when the AP-9100 device is connected to a 1 Gbps link.
• Blinks green when the AP-9100 device traffic is being transmitted or
received on the 1 Gbps link.
• Glows amber when the AP-9100 device is connected to a 100 Mbps
link.
• Blinks amber when the AP-9100 device traffic is being transmitted or
received on the 100 Mbps link.
• Glows yellow when the AP-9100 device is connected to a 10 Mbps link.
• Blinks yellow when the AP-9100 device traffic is being transmitted or
received on the 10 Mbps link.
5 GHz
LED
• Glows green when the AP-9100 device wireless interface 1 is in
operational state.
• Blinks green when the AP-9100 device wireless traffic is being
transmitted or received.
2.4 GHz
LED
• Glows green when the AP-9100 device wireless interface 2 is in
operational state.
• Blinks green when the AP-9100 device wireless traffic is being
transmitted or received.
Power
LED
• Glows green when the AP-9100 device is switched ON.
